Advantech Dlog DLT-V72 Series Startup Manual page 21

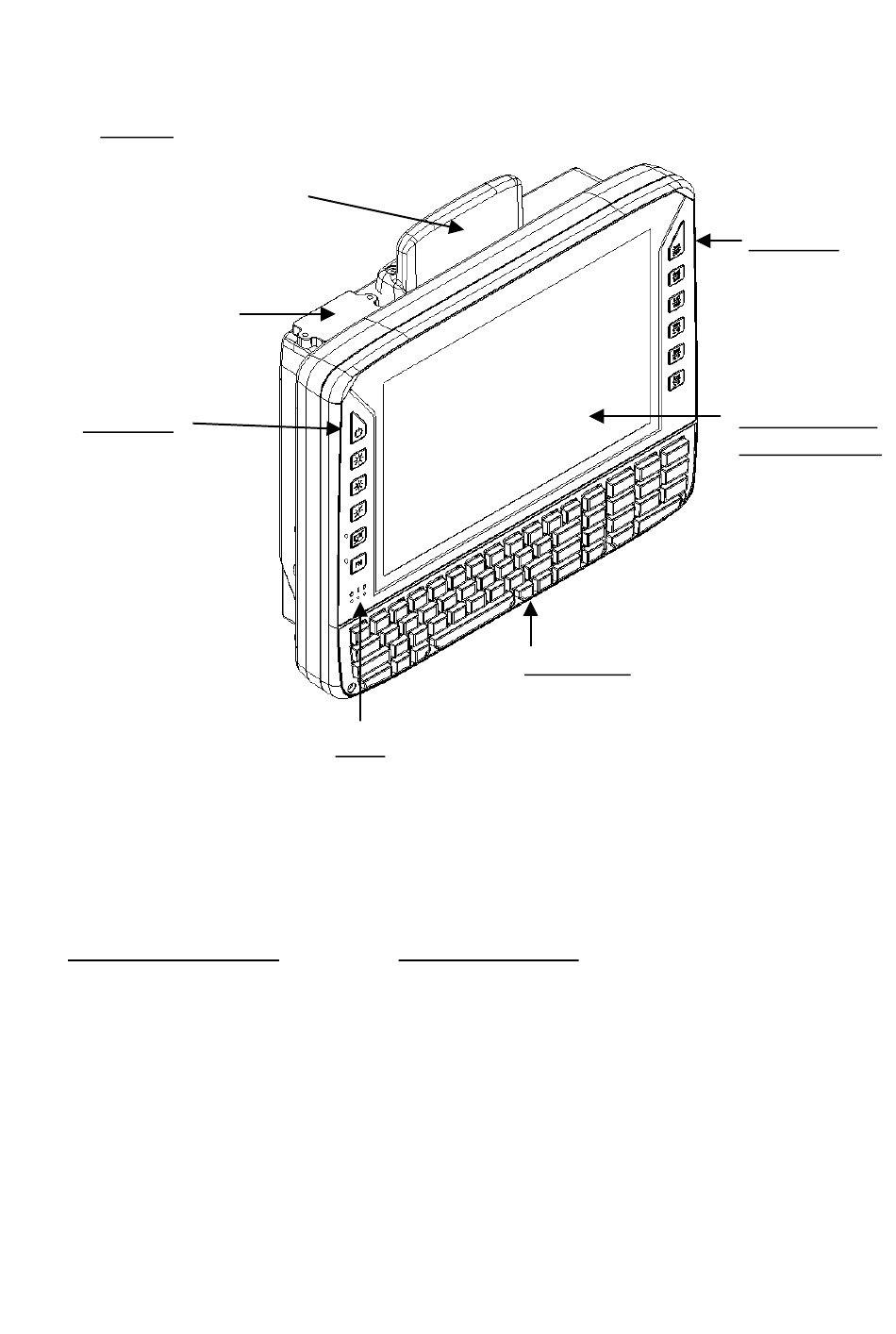

C) DLT-V7210 K, KD (with integrated keyboard)
Antenna:
− Do not cover
− Must have a distance
of > 20 to 50 cm
to persons
Battery pocket
Front keys:
− Device on/off
− Display brighter
− Display darker
− Backlighting on/off
− Touchscreen
or screen
defroster
on/off (LED is on
= active)
− FN: Shift-key
(LED is on =
active)
Details on the Touch key:
Key has two functions if the device
is equipped with a screen defroster
(D in the device name):
− Function 1: activate/deactivate
the touchscreen
− Function 2: activate/deactivate
the screen defroster in
combination with FN
LEDs:
− Power supply
− Temperature: Red blinking = over- or
undertemperature in the device
− Flash access
Details on the FN key:
FN key pressed has the following effect:
− The special keys to the right on the device are shifted
to assignment S7 to S12 (permanent, until FN is
pressed again).
− The brightness/illumination keys to the left on the
device affect the integrated keyboard, not the display
(permanent, until FN is pressed again).
− The alternative characters of the individual keys
shown in red are activated on the integrated
keyboard (not permanent).
Bottom keys:
− Integrated keyboard
Front keys:
− Special keys
S1 to S12
Operate the PCT
touchscreen with:
− Dry fingers
− Dry gloves
− Suitable touch
stylus
(capacitive
peak)
17
