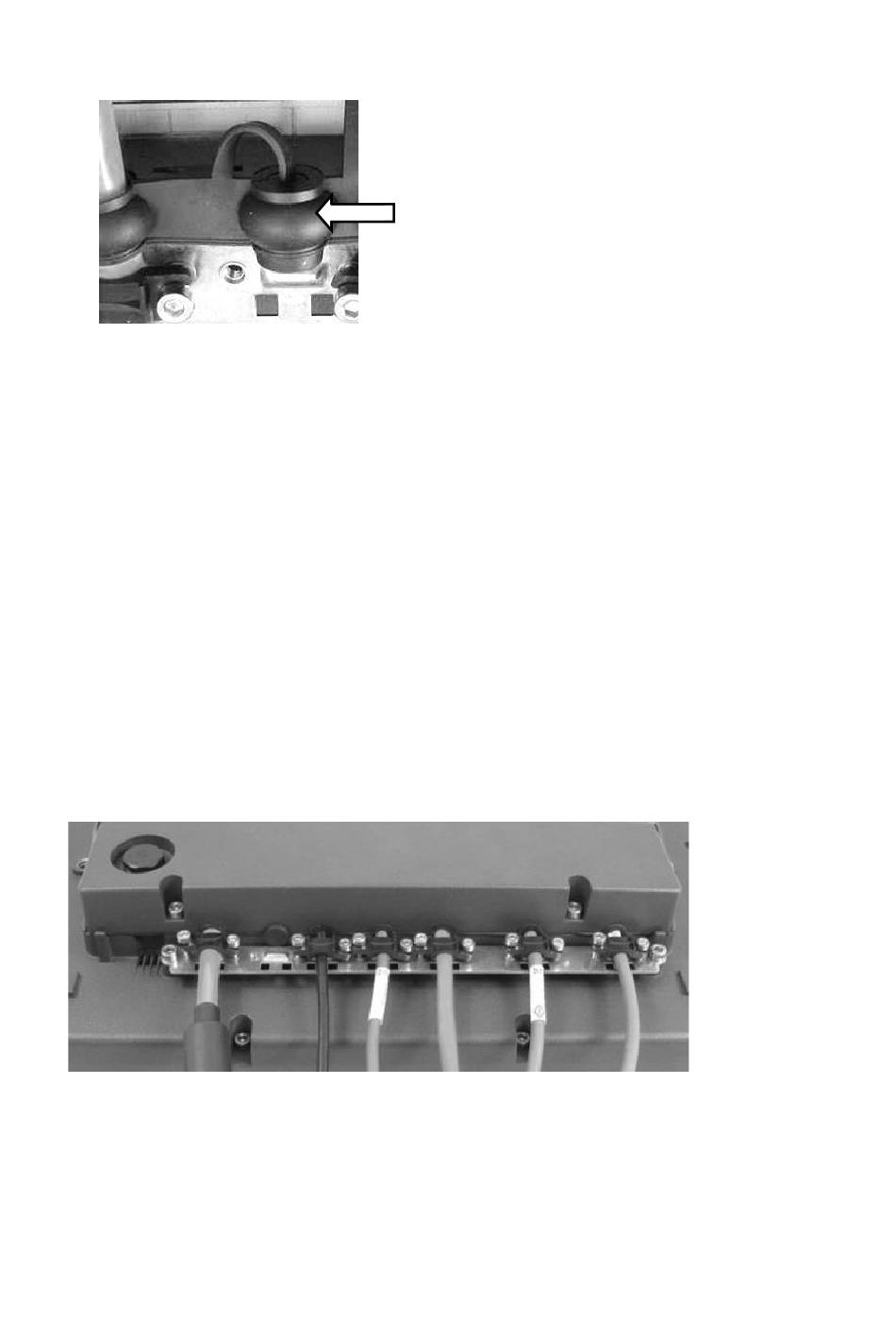

STEP 5: Close off unused cable openings
STEP 6: Attach the cable cover
To prevent fluids or dust penetrating the DLT-V72 during ongoing operation, the cable
compartment on the device must be sealed using the corresponding cable cover. The
protection class is only ensured if the cable cover is properly installed.
− Place the cable cover in the DLT-V72 housing slot.
− Screw the thin headless screws (latching) loosely into the holes of the cable cover.
− Tighten screws alternatingly with a tightening torque of 3 Nm.
Example for an atteched cable cover:
Close off all unused cable openings of the rubber
seal using the accompanying blind plugs so that
they are sealed.
