I/O Panel - Xycom 3510T System Manual

3510/3510KP/3512/3512KP System Manual
Feature
Keyboard Port (3510KP/3512KP)
(front access)

I/O Panel

EXPANSION SLOTS (3)
LID
ETHERNET
PORT
LID
REMOVAL
SCREW (2)
MOUNTING
STUD (12)
FRONT PANEL
Feature Description
Parallel Port The parallel printer port (LPT1) is a DB-25 pin female connector. This port provides a
standard PC compatible printer interface. An external push-button reset option is
available. Consult the CPU board manual for the jumper which controls this option.
3-4
Description
The 3510KP/3512KP provides both front and rear accessible
PS/2 keyboard connectors. The front accessible connector is
located on the lower right side of the front panel. The rear
accessible connector is located on the side of the unit.
Note: Only one keyboard port on the 3510/3512KP can be used
at a time.
Note: The installation of the touchscreen driver determines
whether a second pointing device will function correctly. If you
are using a mouse with a touchscreen, please review the
Touchscreen Driver Installation instructions.
COM 2 COM 1
RS-232 RS-485
PARALLEL RS-232

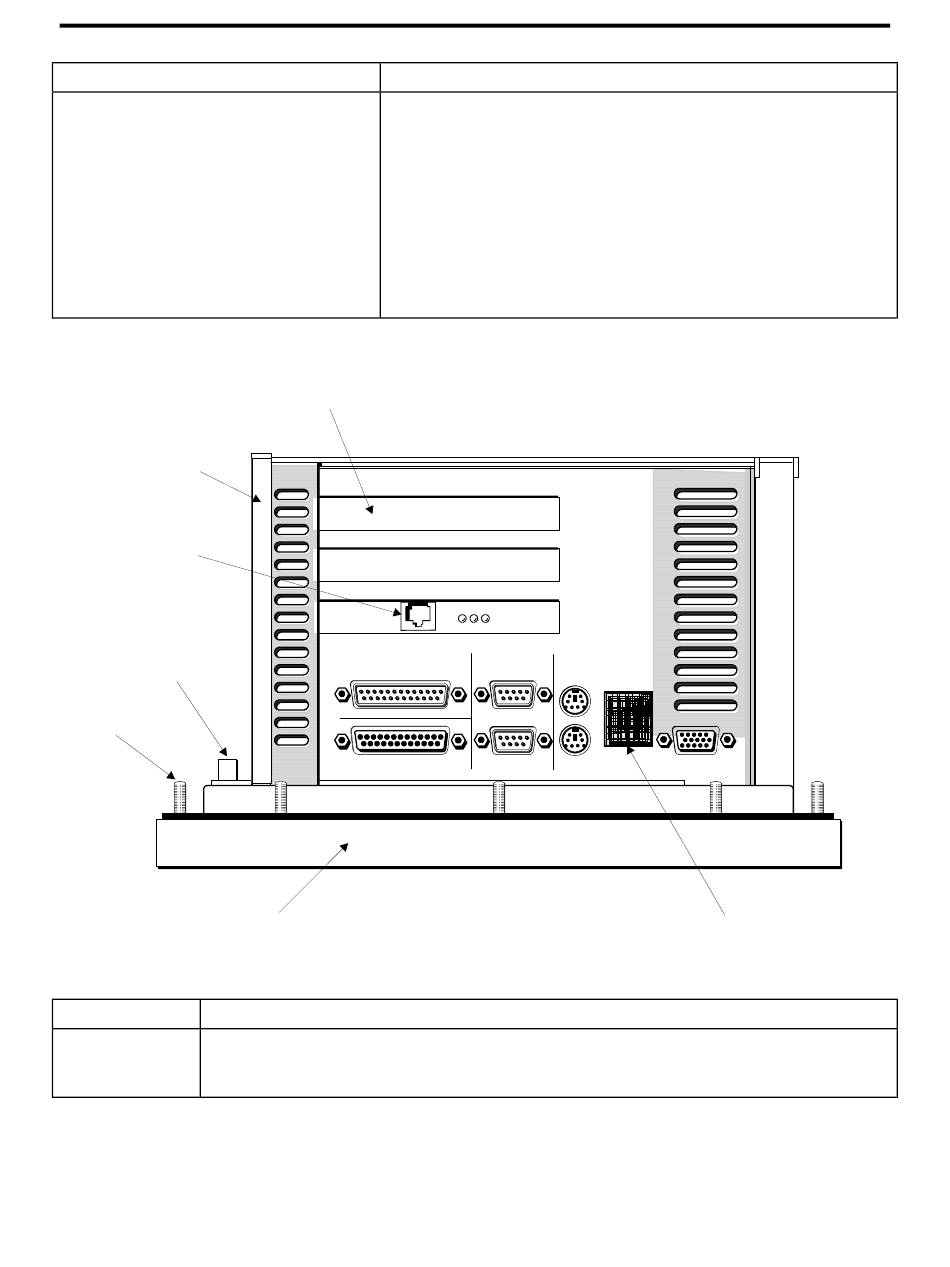

Figure 3-3. System I/O Panel
MOUSE
VIDEO
KEYBD
USB PORT (2)
