3510/3510KP/3512/3512KP System Manual
Figure 3-10 illustrates the front floppy and keyboard access kit. Mount the kit to the
plate or the panel as shown. The cutout dimensions are given in Figure 3-9
Custom Logo
You have the option to place a custom label on the unit. Refer to the following figure
for the dimensions and recommended requirements for a customized label. Once a
customized label is procured, place the new label over the "Xycom Automation"
label (inside the recessed area).
3-12

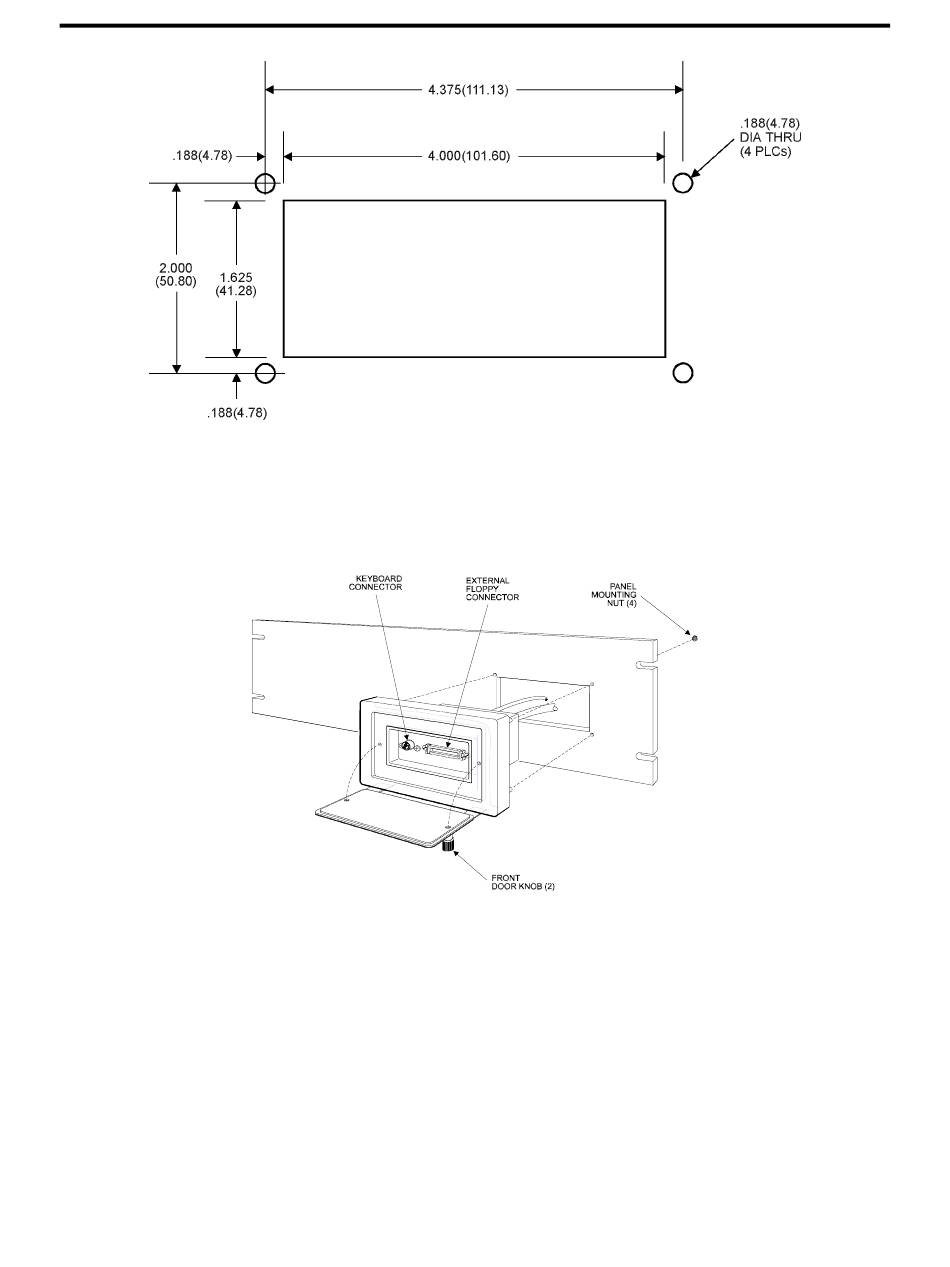

Figure 3-9. Front Mounted Connectors Cutout Dimensions
Figure 3-10. Front Floppy and Keyboard Access Option
