6. Implement the proper grounding techniques. Establish a ground path from the
unit chassis to the enclosure chassis. A 6-32 threaded ground point hole is
provided on the bottom panel of the unit (see Figure 3-5).
7. Tighten the 12-#10 nuts to 25 lbs-inch (2.8 Newton-meters) (28Kgf cm).

System Cutout Dimensions

3510/3512
6.150 [156.21]
2.150 [54.61]
.315 [8.00]
9.630 [244.60]

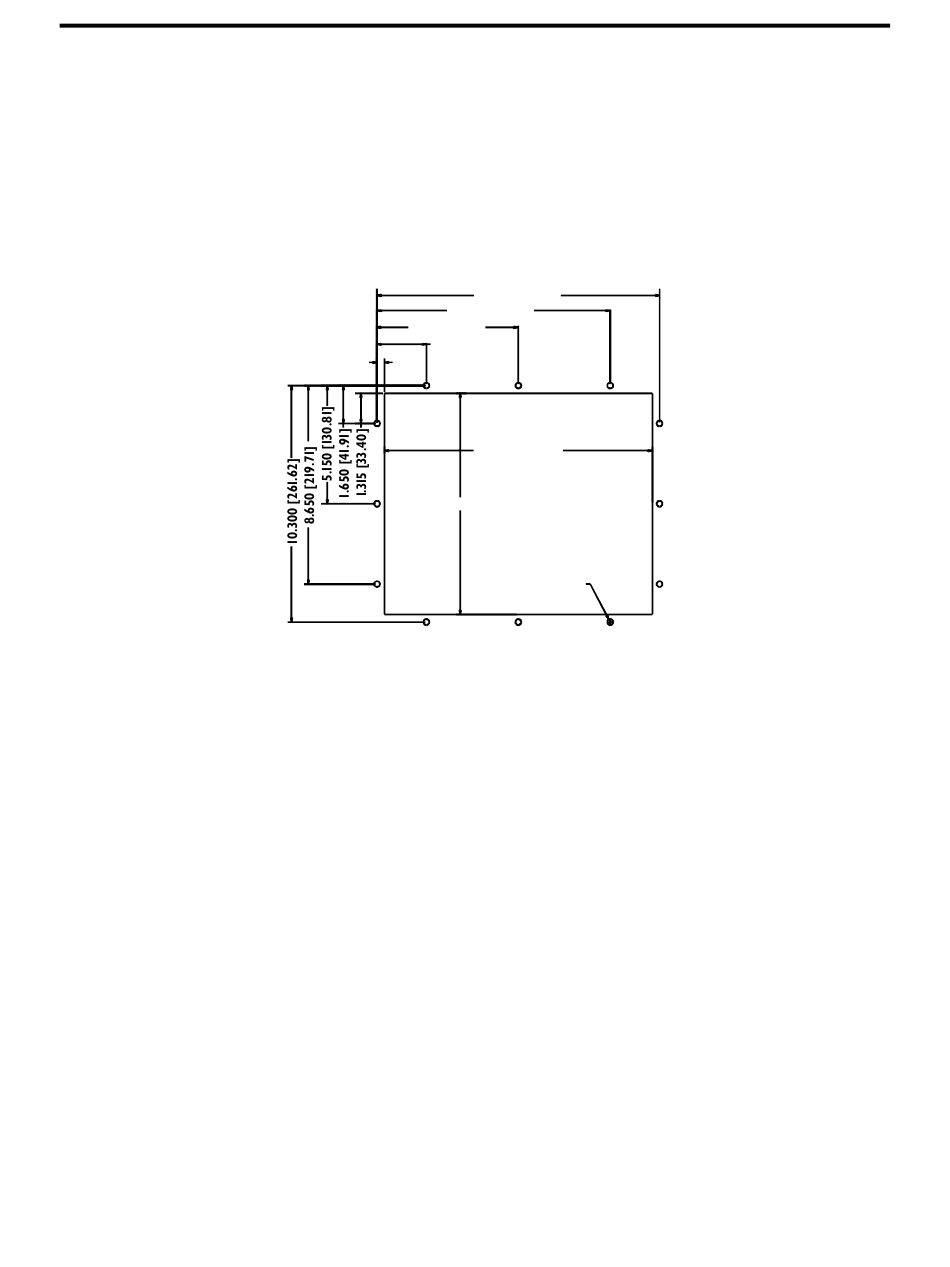

Figure 3-18. 3510/3512 System Cutout Dimensions (inches [mm])
12.300 [312.42]
10.150 [257.81]
11.670 [296.42]
ø.250 [ø6.35]
Chapter 3-Installation
3-27
