3510/3510KP/3512/3512KP System Manual
5. Tighten the three screws above the wires to hold them firmly in place.
Never tighten the three screws of the block plug when the cable is
connected to a power source. The screws are conductive and have full
contact with the cable wire.
6. Use a plastic cable clamp and #6-32 screw (provided) to secure and strain-relief
the cable. When installing the power cable to the unit, use the securing screws on
each side of the plug.
Completely loosen the two securing screws on the plug when
disconnecting the power cord from the unit
Installation is complete once the power and other optional interface cables are installed.

Mounting the Unit

Once the conditions in the preceding sections have been met, follow the instructions
below to mount the unit:
1. Locate a position for your system that meets the specifications required (see
previous sections and Appendix A).
2. Cut the hole according to the cutout dimensions in Figure 3-18 or Figure 3-19.
3. Make sure the area around the cutout is clean and free from metal burrs.
4. Install the unit.
5. Attach the power cable making sure that the system's enclosure is grounded
through the power cable.
3-26

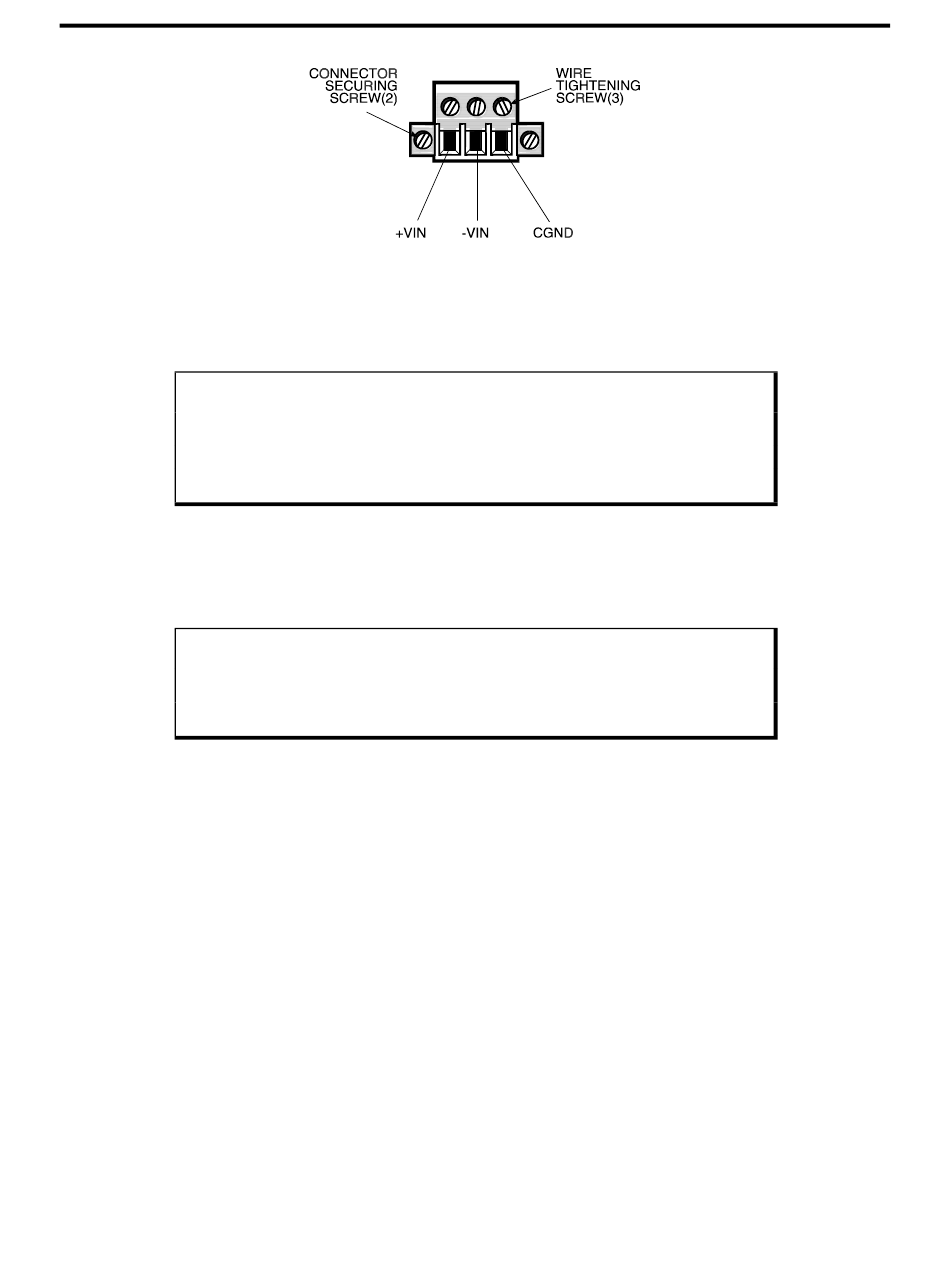

Figure 3-17. DC Power Connector
Warning
Warning
