Appendix D – Replacing Flat-Panel Display
Bulbs
We recommend sending the flat-panel display to Xycom Automation for bulb re-
placement. However, if you would like to replace the bulbs on site, this appendix pro-
vides instructions.
Refer to the label on the back of your unit to determine the flat-panel
display model. If you are unsure which instructions to use, call Xy-
com Automation Customer Support at 800-289-9266.
3515 TFT Flat-Panel Display (Sharp #LQ150X1DG16 or Samsung
#LTM150XS-T01)
1. Turn off the power source.
2. Using a small Phillips-head screwdriver, loosen the two protruding captive screws
at the top back of the unit, and remove the lid.
3. If a touch screen or keypad is installed, disconnect the cable(s) at the top of the
system board.
Note
FLAT PANEL DISPLAY SCREW (4)
(Remove for access to bulbs)

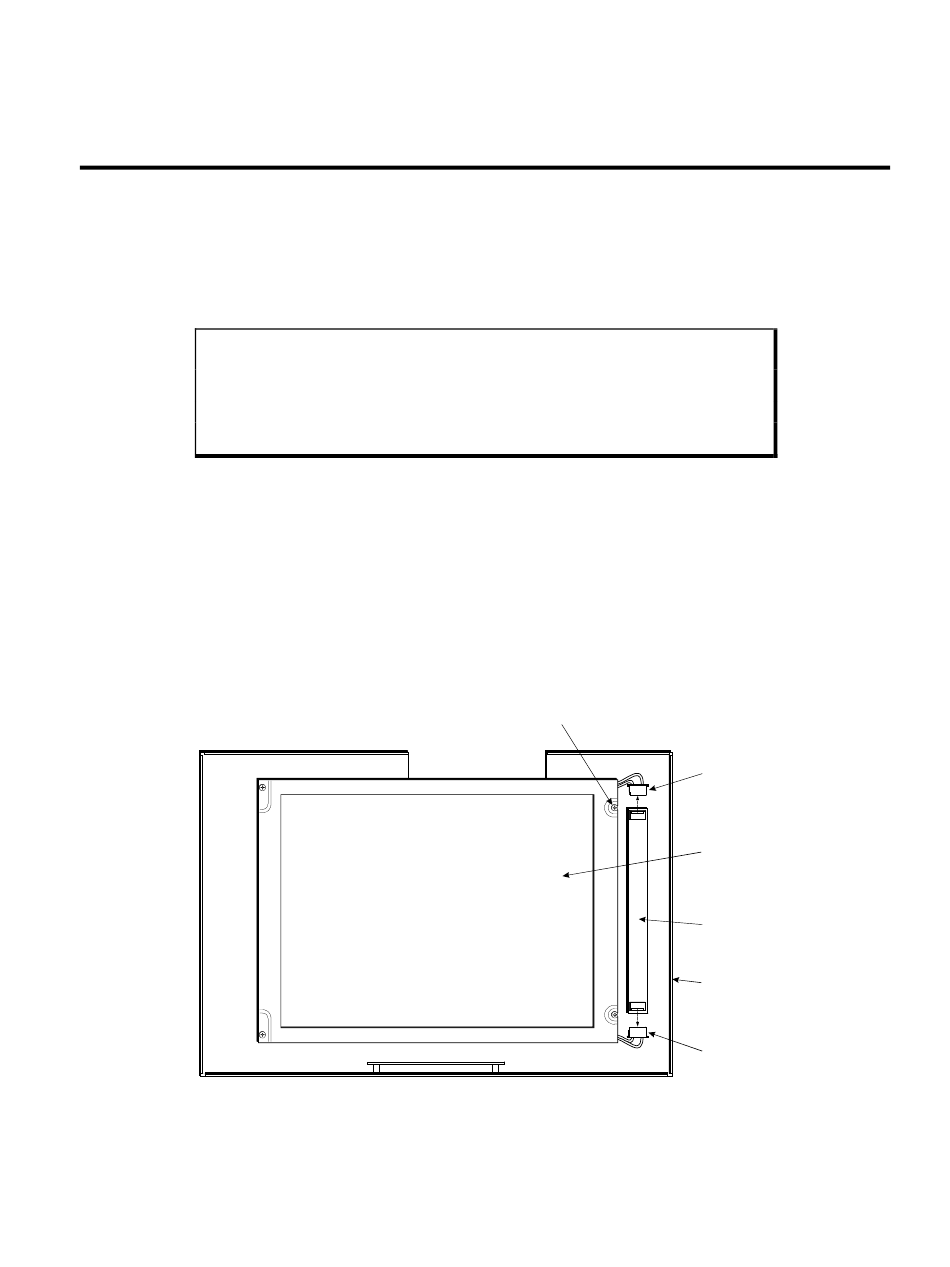

Figure D- 1. Model #LQ150X1DG16 - Front View
Appendix D – Replacing Flat-Panel Display Bulbs
BULB
CONNECTOR
FLAT
PANEL
DISPLAY
INVERTER
CARD
CARRIER
BULB
CONNECTOR
