Customized Keypad Inserts (3510KP/3512KP only)
You can customize your keypad with keypad inserts. Refer to the following figures for
insert dimensions and installation.

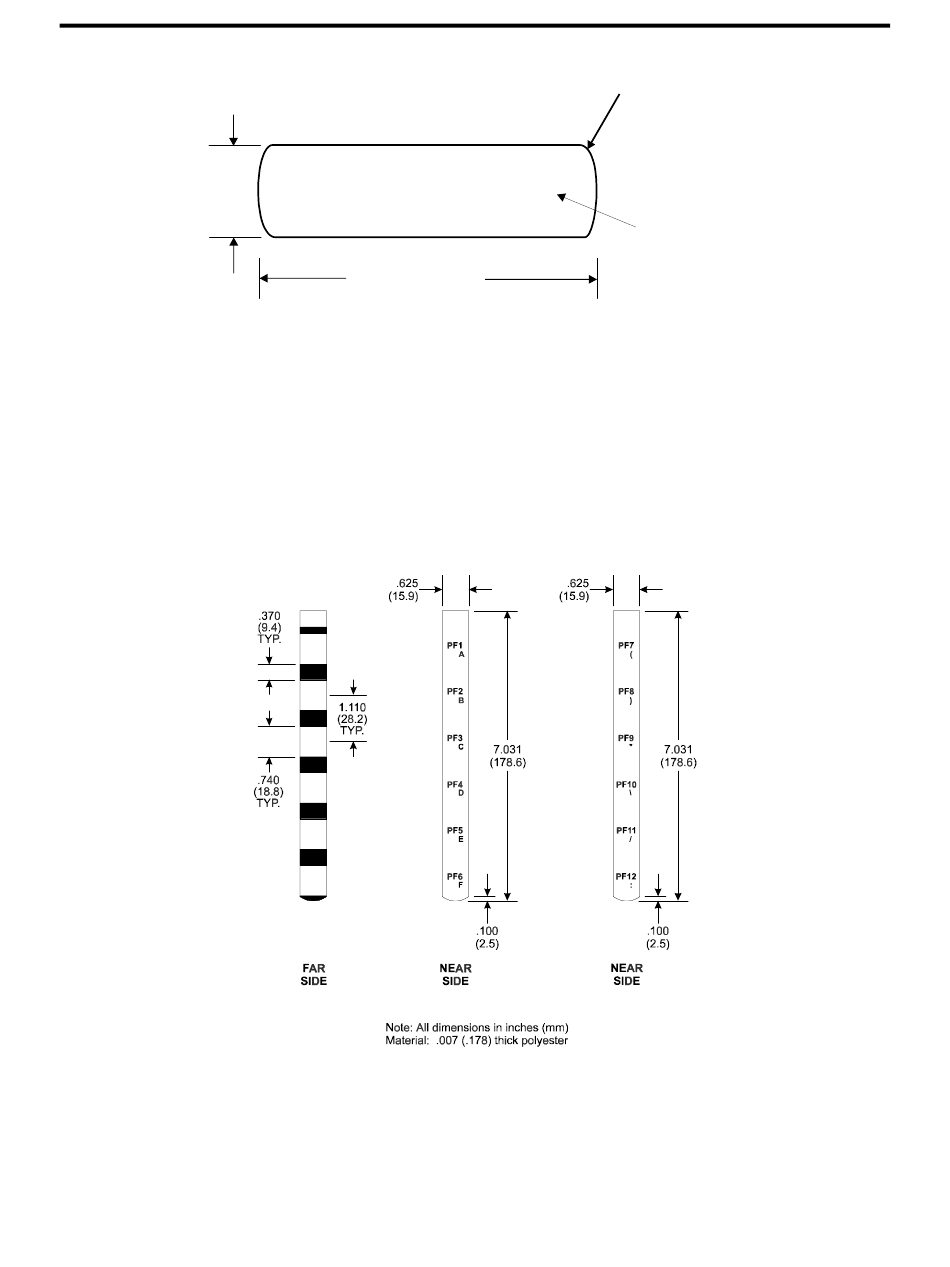

Figure 3-12. 3510KP/3512KP Keypad Inserts with Dimensions (PF1 – PF12)
2.05 (52.07)
NOTE: All dimensions are in inches (mm)
RECOMMENDED MATERIAL: 0.007 (0.176) thick
polyester with 3M #468 adhesive on far side
Figure 3-11. Logo Label Dimensions
Chapter 3-Installation
0.06 (1.52)
(4 Places)
Your Logo On
Entire Surface
3-13
