2. Using a small Phillips-head screwdriver, loosen the two protruding captive screws at
the top back of the unit, and remove the lid.
3. If a touch screen is installed, disconnect the touch screen cable (TCH1) at the top of
the system board.
4. Set the unit with the front panel down and loosen the four captive screws holding the
front panel to the display adapter plate.
5. While securely holding the front panel, flip the unit over.
6. Lift off the front panel, and set it aside.
7. Unscrew the four screws that attach the flat panel display to the standoffs.
8. Disconnect the bulb connector from the inverter card.
9. Gently lift the right side of the flat panel display, and disconnect the data interface
connector.
10. Lay the flat panel display faceup on a flat surface.
11. Referring to Figure D- 2, remove the five smaller bezel mounting screws.

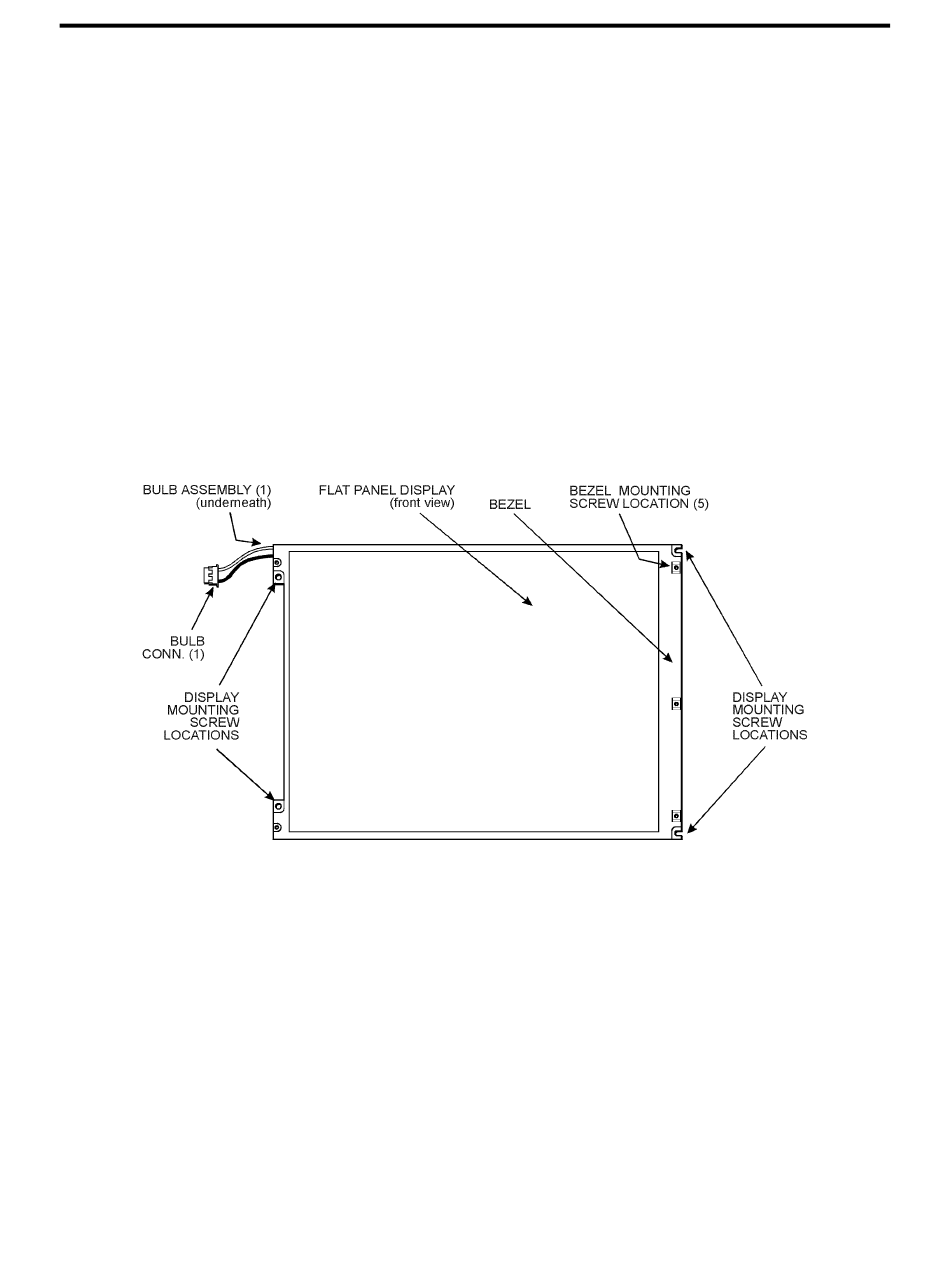

Figure D- 2. Model #AA12SB6C-ADFD Bulb Assembly - Front View
12. Turn the display facedown on a protective surface.
13. Remove the metal tape holding the bulb assembly cover.
14. Referring to Figure D- 3, remove the bulb assembly cover and bend back the foil re-
flector to expose the bulb assembly.
