Power Panel; Preparing The System - Xycom 3510T System Manual

Power Panel

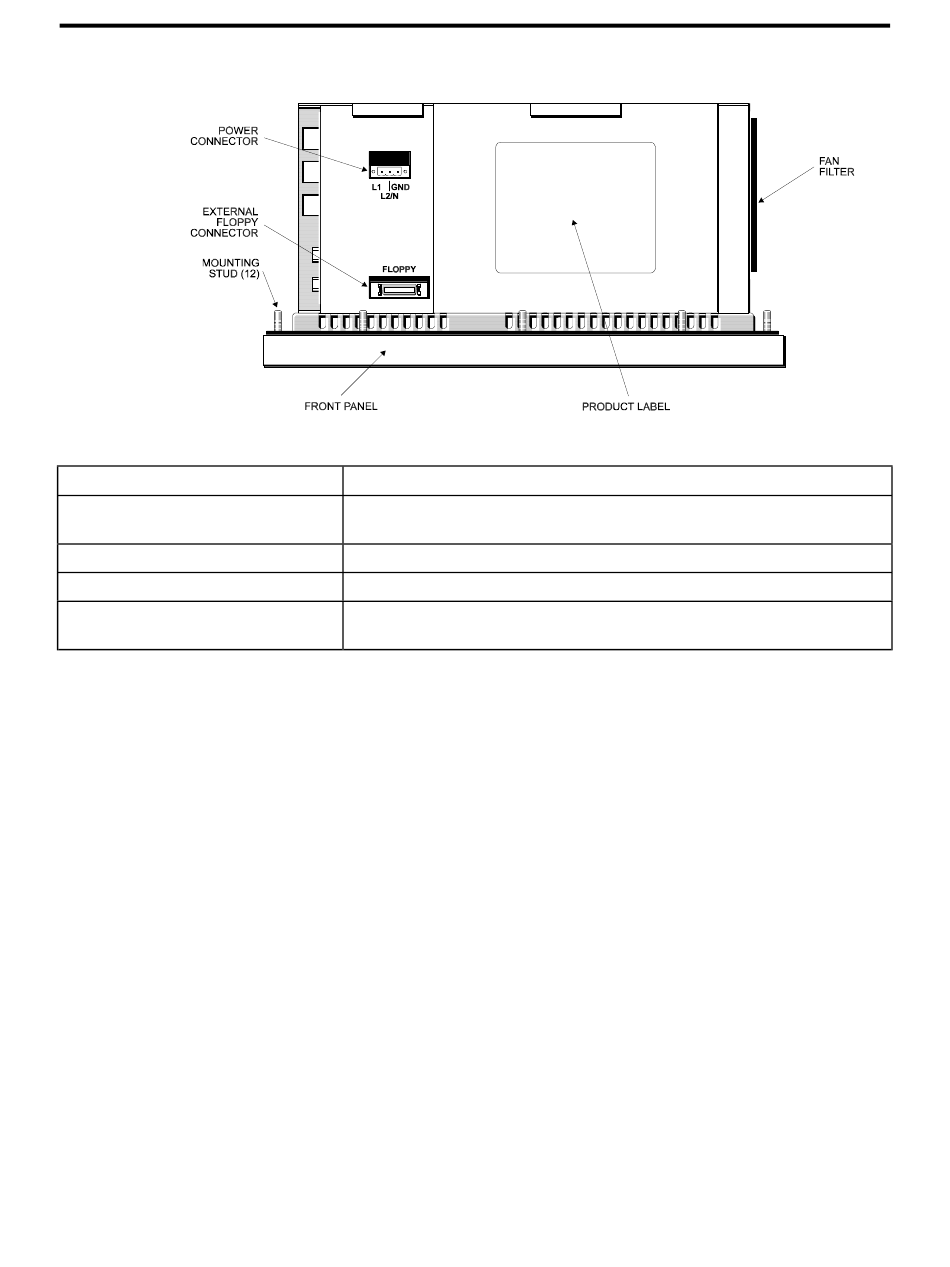

Figure 3-5. Bottom Panel with Power Connector and External Floppy Connector
Feature
Power Connector
External Floppy Drive Connector
Product ID Label
Fan and Filter

Preparing the System

Read this chapter first, comply with all the safety requirements, then mount the unit
according to the following instructions.
1. Locate a position that meets the required specifications
2. Do a panel cutout. The dimensions are given in this chapter.
3. Install optional equipment following the instructions in Installing Internal
Hardware Options and Installing External Hardware Options in this chapter.
4. Create the power cable. Refer to the Creating a Power Cable section in this
chapter.
5. Mount the system and properly secure the unit into the panel. See Installing the
System section in this chapter.
6. Attach one end of the power cord to the power receptacle and the other end to a
properly grounded 115/230 VAC, 50-60 Hz outlet or a 24 VDC outlet,
whichever applies (refer to the Hazardous Location Installations section later in
this chapter).
Description
This is a three-pin connector. Refer to the special hazardous
location installation instructions later in this chapter.
This is a 26-pin connector.
The product ID label is located on the bottom panel
The filter can be replaced or removed for cleaning. See Chapter 5
for details on the fan filter assembly.
