Welch Allyn 5002 Service Manual page 99

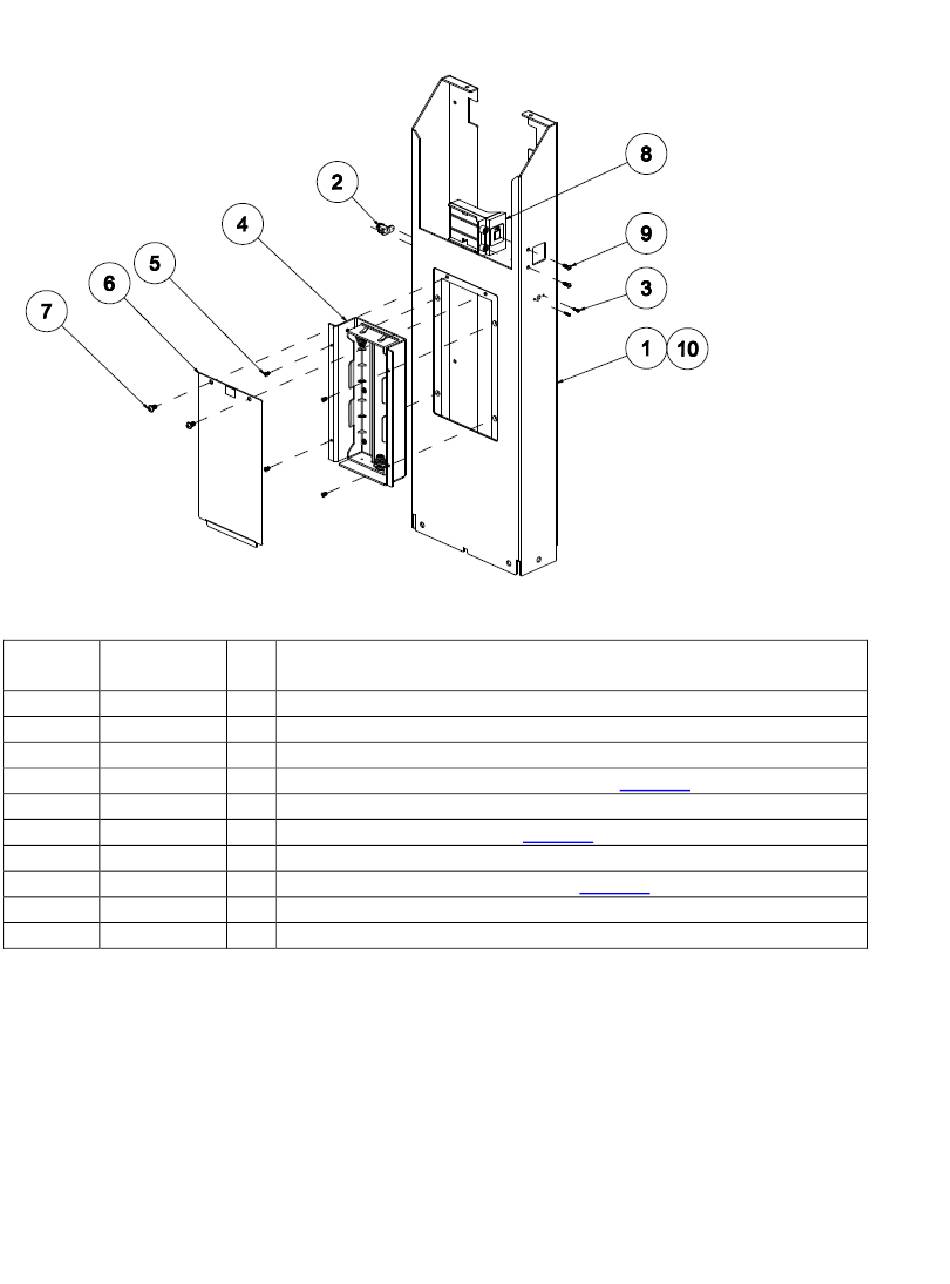

5122 Mast Assembly
Table 25 5122 Mast Assembly
Unique Welch Allyn
Identifier Part Number
1 726894
2 412432
3 726494
4
5 130204
6
7 130237
8
9 726746
10 726495
Qty Welch Allyn Part Number Description
1 SLIDER, MAST, SCALE-T
1 HARNESS POWER JACK DC 2.5MM SCALE-T
2 SCREW 1/32X3/8 THREAD FORM
1 SEE BATTERY BRACKET EXPLODED VIEW
4 SCW 6-32X1/4" FHMS UNDERCUT ZINC
1 SEE BATTERY ACCESS PANEL
2 SCW 10-32X3/8" PHIL RND MS SS
1 SEE USB BRACKET EXPLODED VIEW
2 SCW 6/32X7/16 HEX RHS 316 SS
1 SLIDER, MAST, W/O AC, SCALE – T
Table 27
Table 31
Table 26
