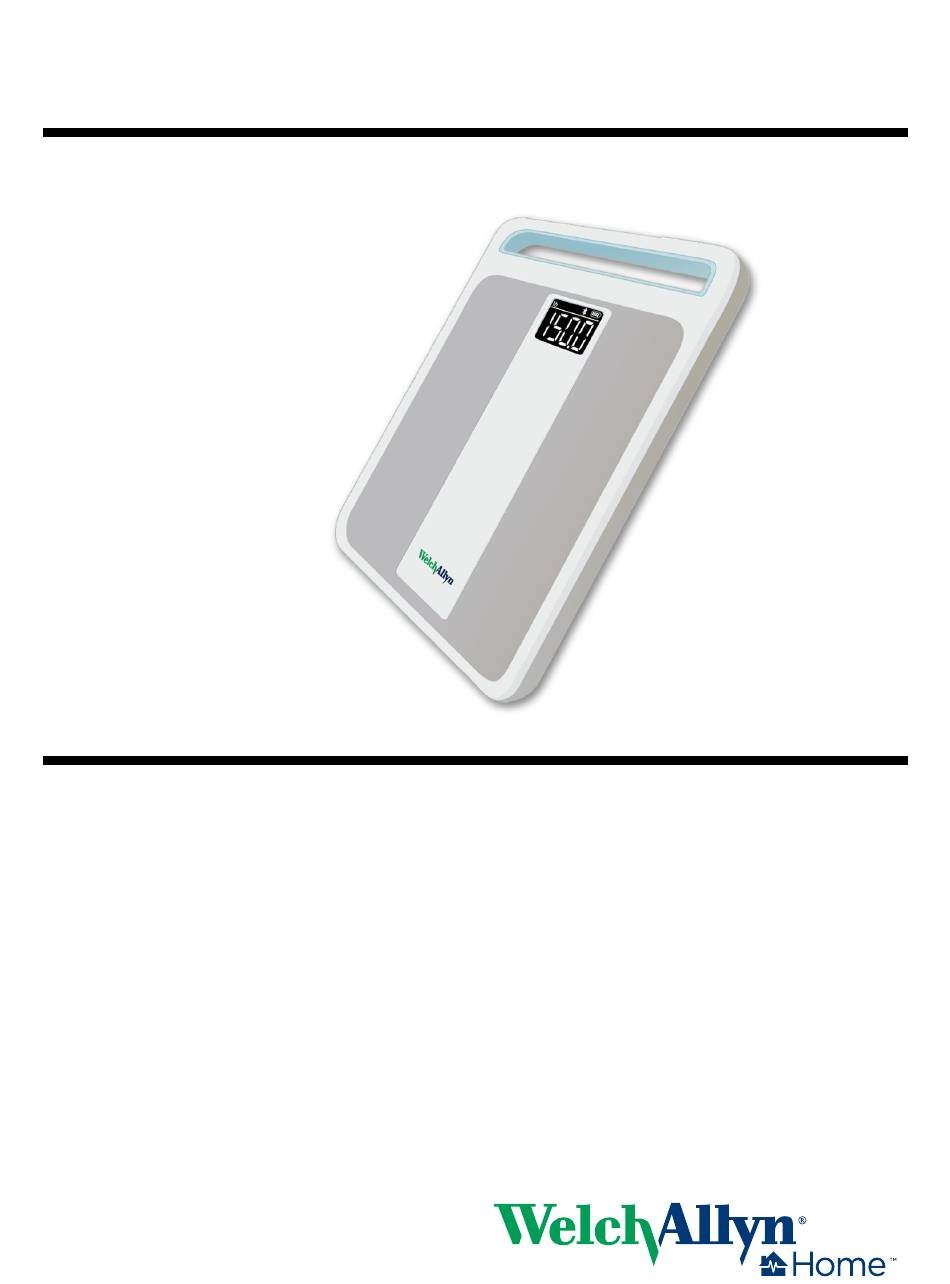

- Page 1 Welch Allyn Home™ Scale Directions for use 901077 Weight scale, Software Version 1.0...
- Page 2 © 2017 Welch Allyn. All rights are reserved. To support the intended use of the product described in this publication, the purchaser of the product is permitted to copy this publication, for internal distribution only, from the media provided byWelch Allyn. No other use, reproduction, or distribution of this publication, or any part of it, is permitted without written permission from Welch Allyn.
-
Page 3: Table Of Contents
Contents Introductory information ................ 1 Introduction ......................1 Symbols ....................... 1 About warnings and cautions ................3 Content list ......................4 Controls and indicators ..................4 Screen elements ....................5 Use the scale .................... 7 Startup ......................... 7 Insert or replace the batteries ................7 Install the carpet feet ................... - Page 4 Contents Welch Allyn Home™ Scale...
-
Page 5: Introductory Information
For information about any Welch Allyn product, contact Welch Allyn Home technical support at www.welchallynhome.com/support.htm. Indications for use The Welch Allyn Home Scale is intended for adults and children (10–17 years old) to measure weight in the home. Contraindications This device is contraindicated for any person who is connected to a wearable or implantable electronic device or instrument, such as a pacemaker or defibrillator. - Page 6 2 Introductory information Welch Allyn Home™ Scale Power symbols Direct current (DC) Shipping, storing, and environment symbols Humidity limitation Separate collection of Electrical and Electronic Equipment. Do not dispose as unsorted municipal waste. Temperature limit Atmospheric pressure limitation Recycle Stacking limit by number Connectivity symbols Bluetooth®...
-
Page 7: About Warnings And Cautions
Caution statements can appear on the Welch Allyn Home Scale device, packaging, shipping container, or in this Directions for use. The Welch Allyn Home Scale is safe for users when used in accordance with the instructions and caution statements presented in this Directions for use. -
Page 8: Content List
• (4) AAA alkaline batteries (1.5V each) • (4) extension feet for use on carpet • Directions for use Controls and indicators The Welch Allyn Home scale is simple to use. Scale top No. Feature Description LCD display Displays measurement... -
Page 9: Screen Elements
Directions for use Introductory information 5 No. Feature Description UNIT / Power button The button enables you to select kg or lb unit measure. Press and hold for 3 seconds to enter pairing mode. Battery compartment (behind cover) Houses (4) AAA alkaline batteries (1.5V each) Sensors (4) 4 load cell sensors which conduct weight measurement Screen elements... - Page 10 6 Introductory information Welch Allyn Home™ Scale...
-
Page 11: Use The Scale
Use the scale Startup The Welch Allyn Home scale uses SENSE ON™ technology to turn on the scale. Step on the scale with bare feet to begin a measurement. Insert or replace the batteries CAUTION When the symbol appears, the device will power off in four seconds. -
Page 12: Pair A Smartphone, A Tablet, Or A Communication Hub With The Scale
You have two alternatives to pair your device with these devices. • If you are using the Welch Allyn Home application, follow the pairing instructions presented in the application. •... -
Page 13: Obtain Measurement
Directions for use Use the scale 9 Obtain measurement With the original SENSE ON patent technology, the scale automatically powers on when you step on the platform in your bare feet. 1. Step on the platform in your bare feet. The scale automatically powers on and begins the measurement. - Page 14 10 Use the scale Welch Allyn Home™ Scale Error prompt Error Description Solution Dotted lines Overload. The device will power off Weight exceeds scale maximum Replace all four batteries at the same Low Battery. The device will power off time. Purchase the authorized batteries in four seconds.
- Page 15 Directions for use Use the scale 11 Problem Root cause Solution onto the scale to begin the measurement When transmitting data Problem Root cause Solution Data transmission failed Bluetooth wireless technology is off Turn on the Bluetooth wireless technology via the Settings. Application is off Press the icon to run your application.
- Page 16 12 Use the scale Welch Allyn Home™ Scale...
-
Page 17: Appendices
Appendices Specifications Warning: No modification of this equipment is allowed. Item Specification Power supply 6V 4*AAA alkaline batteries Display mode Blue LCD with White Backlight V.A.: 74x53mm Measurement unit Kilogram / Pound Measurement range 5kg to 200kg / 11lb to 441lb Resolution The measurement resolution 0–220 lb: 0.2lb... -
Page 18: General Radio Compliance
14 Appendices Welch Allyn Home™ Scale Item Specification Auto-ON SENSE ON technology Auto-OFF About 15 seconds when showing 0.0 About 15 seconds after the weight data is locked Degree of protection Type BF applied part Protection against ingress of IP22... -
Page 19: Complied Standards List
Directions for use Appendices 15 3.Consult the dealer or an experienced radio/TV technician for help. Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. FCC Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. -
Page 20: Emissions And Immunity Information
IMMUNITY LEVEL of 3V/m). Electromagnetic emissions The Welch Allyn Home Scale is intended for use in the electromagnetic environment specified below. The customer or user of the Welch Allyn Home Scale should assure that it is used in such an environment. - Page 21 IEC 61000-3-3 Electromagnetic immunity The Welch Allyn Home Scale is intended for use in the electromagnetic environment specified below. The customer or the user of the Welch Allyn Home Scale should assure that it is used in such an environment.
- Page 22 RF transmitters, an electromagnetic site survey should be considered. If the measured field strength in the location in which the Welch Allyn Home Scale is used exceeds the applicable RF compliance level above, the Welch Allyn Home Scale should be observed to verify normal operation. If abnormal performance is observed, additional measures may be necessary, such as reorienting or relocating the Welch Allyn Home Scale.
-
Page 23: Warranty
Warranty Welch Allyn will warranty the Home Scale to be free of defects in material and workmanship and to perform in accordance with manufacturer specifications for the period of two years from the date of retail purchase. -
Page 24: Approved Accessories
20 Appendices Welch Allyn Home™ Scale Approved accessories Item Description RPM-SCALEACC-01 Carpet Feet 40EA...
