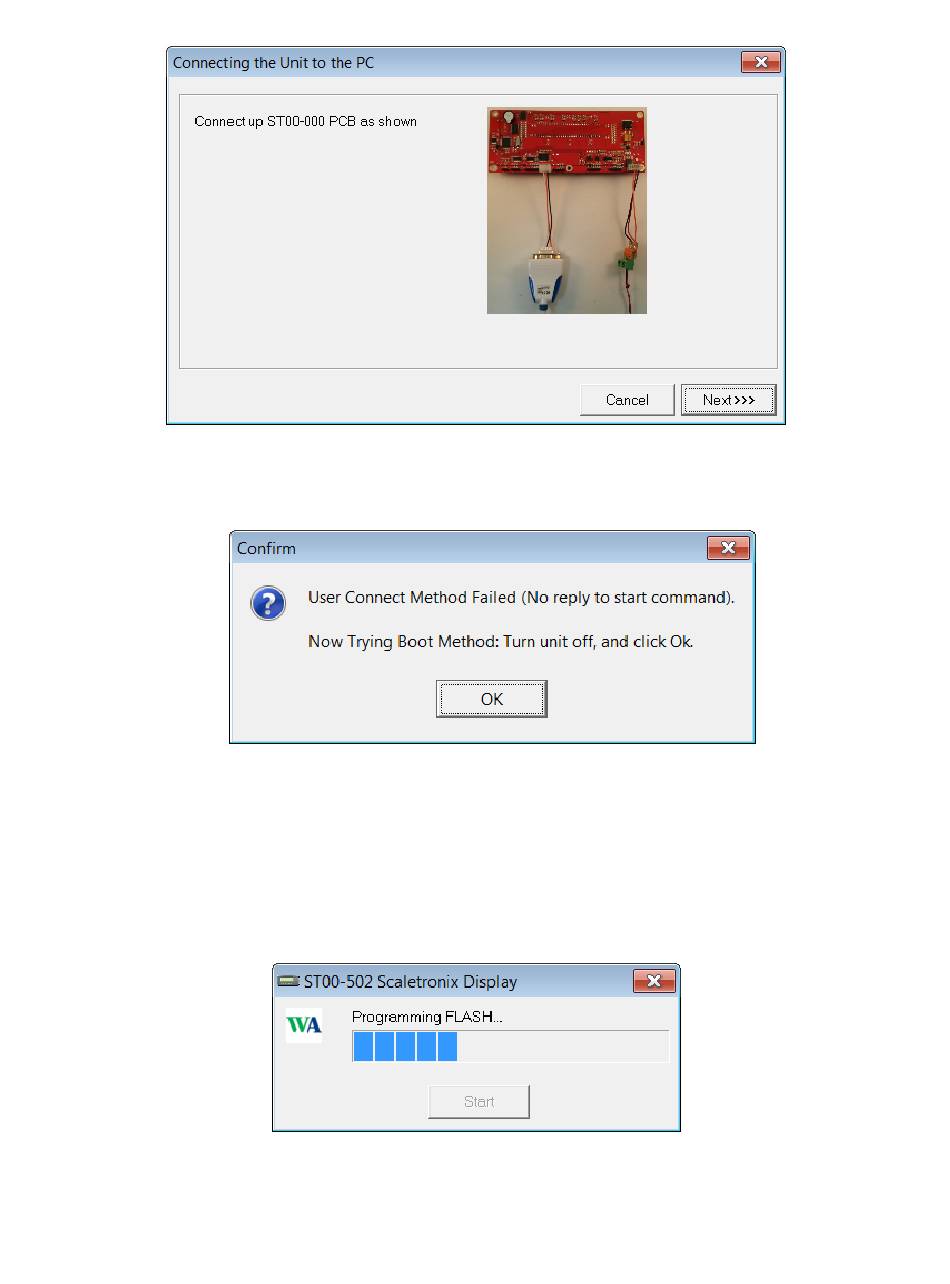

7. Click "Next". The following dialog box will appear.
8. Go to BOOT MODE by pressing "ZERO", "LB/KG", and "POWER" button simultaneously. Once the
Scale powers up and displays "88.88.88", click "OK" within 2 seconds. (IMPORTANT. If the 2 seconds
lapsed, the scale needs to be powered off and the above steps need to be repeated.)
9. Firmware update will begin when the above step is successfully executed, and the below dialog box
will appear. Wait for it to complete.
10. Click "OK" when firmware update is completed (see below dialog box).
16
