Welch Allyn 5002 Service Manual page 66

Base Repair Parts
5002

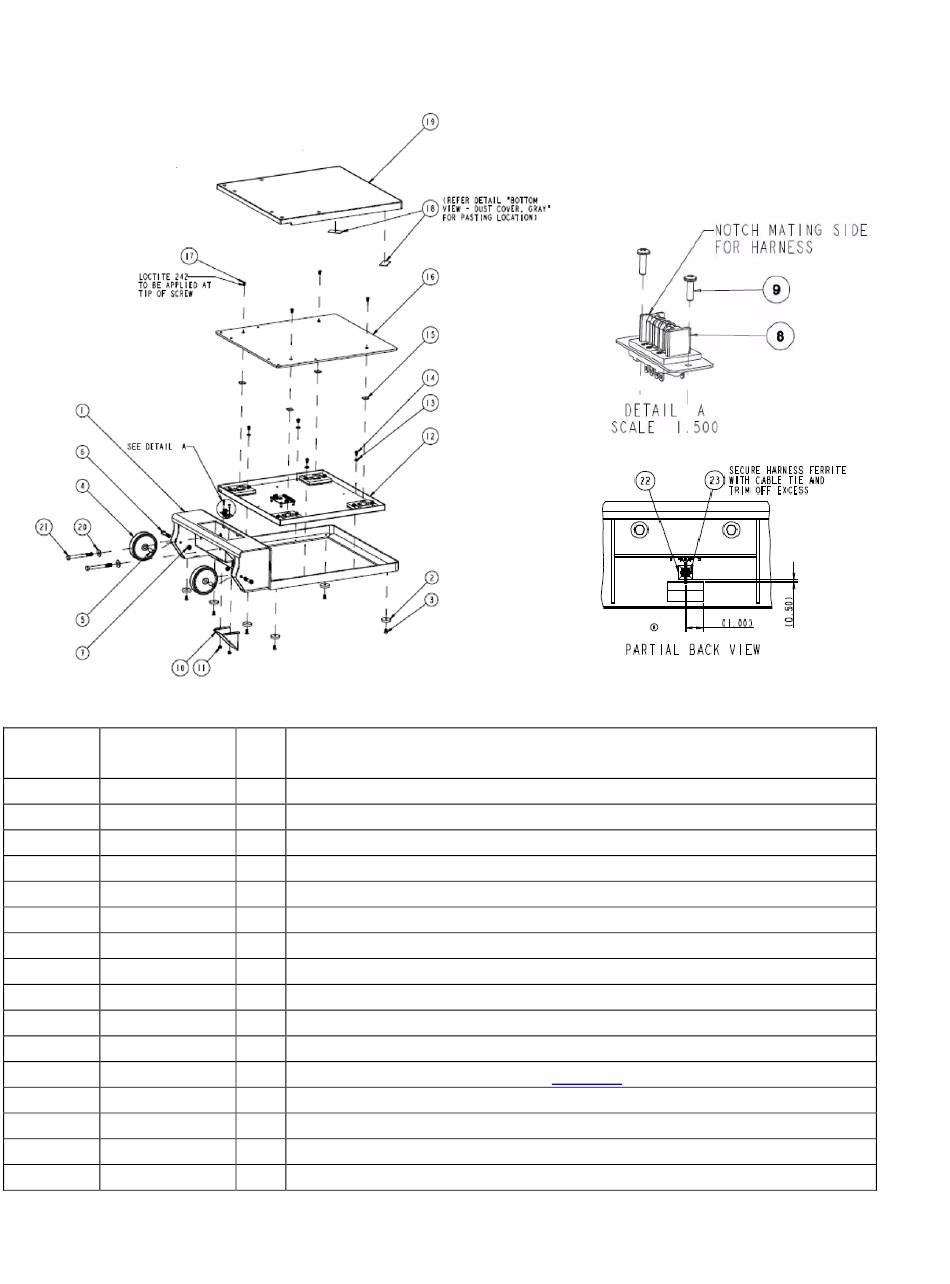

Table 8 5002 Base Assembly
Unique Welch Allyn
Identifier Part Number
1 412662
2 139041
3 130060
4 50502
5 50314
6 50614
7 52523
8 412469
9 106100-4
10 039325W
11 130212
12
13 33004
14 130237
15 50509
16 50215
Qty Welch Allyn Part Number Description
1 BASE WELDMENT 5002 SCALE-T
6 WASHER FLAT NYLON 1 1/4" X 1/4"
6 SCREW 10-32X1/2 FHS FOR DELRON
2 WHEEL 4"
2 BUSHING, WHEEL 5/16" X 1"
2 SCW 5-16-24X1 3/4 SEX CS GRD 8, NICK
2 NUT, 5/16-24 HEX NKL
1 HARNESS INTERIOR BASE LONG SCALE-T
2 SCREW 4-40 .380 PAN PHILLIPS
1 CABLE GUARD
2 10-32 X 1/4 SCREW – MHMS SOC
SEE 5002 GPR ASSY EXPLODED
4 WSH 1/4 STEEL SPLIT LOCK
4 SCW, 10-32 X 3/8" PHIL RND MS, SS
4 1/8 THICK EAR SPACER 3/4X3/4
1 PLATE TOP 5002
