Welch Allyn 5002 Service Manual page 43
Scales with usb connection, mobile stand-on/mobile bariatric/wheelchair/mobile bariatric
Hide thumbs
Also See for 5002:
- Service manual (87 pages) ,
- Directions for use manual (28 pages) ,
- Installation instructions (2 pages)
Table of Contents
Advertisement

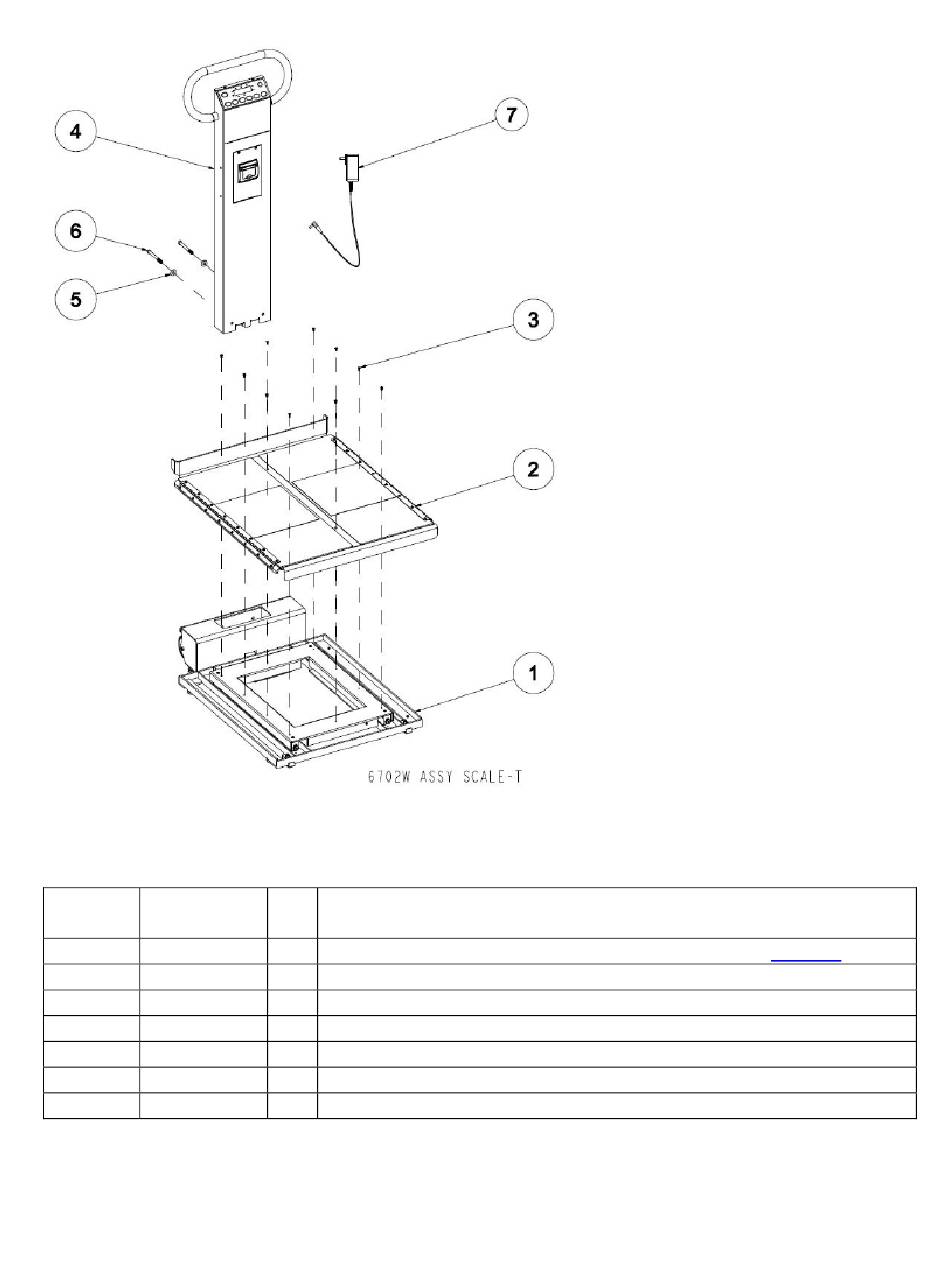

6702W Repair Parts
Unique
Welch Allyn
Identifier
Part Number
1
2
630202
3
30378
4
5
132074
6
130234
7
726551
6702W Top Level
Qty Welch Allyn Part Number Description
SEE BASE DISASSEMBLY FOR VARIATIONS AND PARTS
1
PLATFORM DECK ASSY 6702
10
10-24 X 1/2 FH SOC SCR
SEE MAST BODY ASSY EXPLODED VIEW Table 2
2
WASHER, 3/8" ID X 1" ODSS
2
BOLT 3/8-16 X 3 3/4" HEX HEAD
1
POWER SUPPLY, EXT, 12VDC
43
Table 16
