Welch Allyn 5002 Service Manual page 31
Scales with usb connection, mobile stand-on/mobile bariatric/wheelchair/mobile bariatric
Hide thumbs
Also See for 5002:
- Service manual (87 pages) ,
- Directions for use manual (28 pages) ,
- Installation instructions (2 pages)
Table of Contents
Advertisement

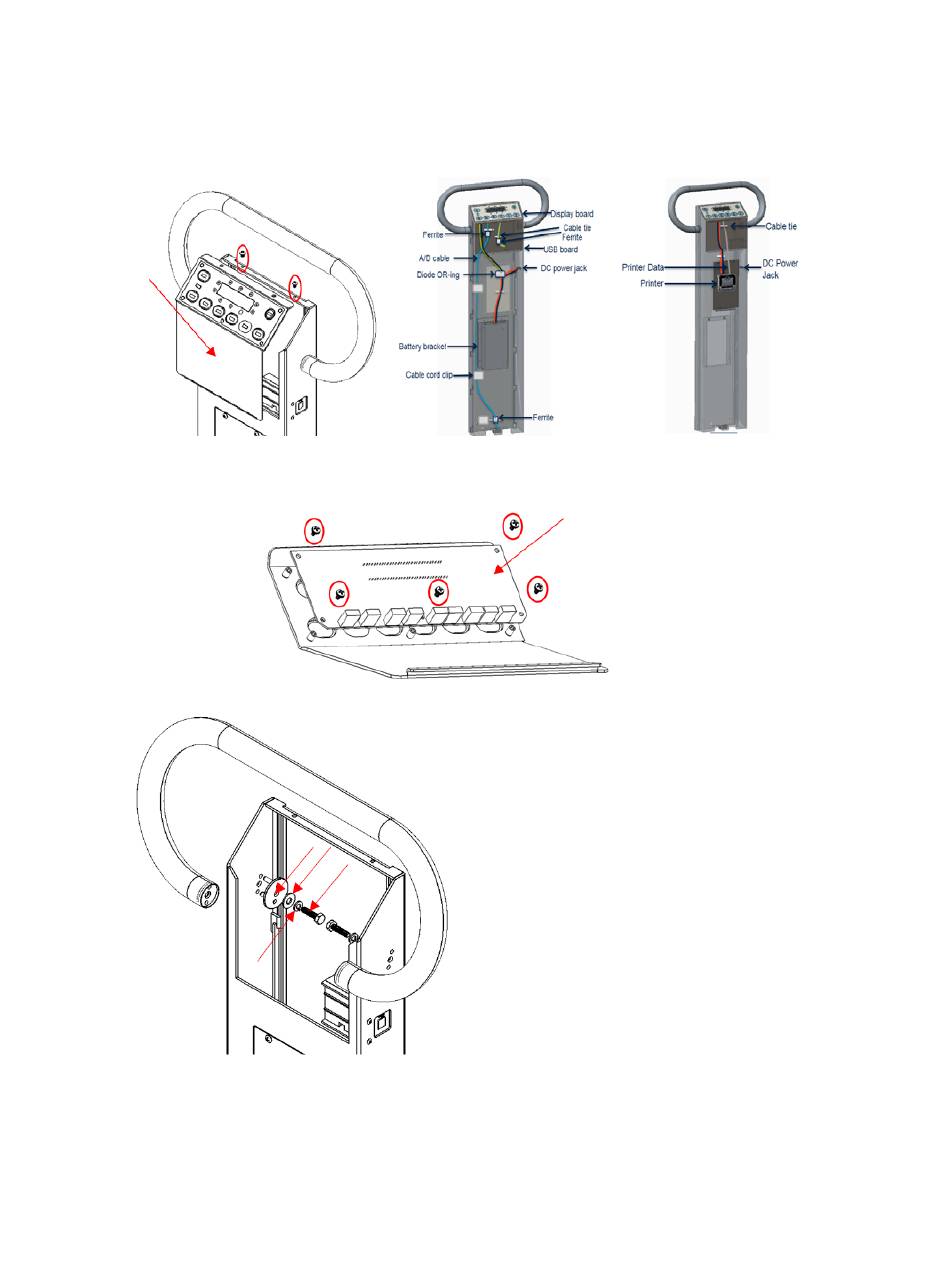

Mast Disassembly
1. Remove Readout Panel mounting screws (2) and Readout Panel. Disconnect the wire harnesses
and unlock the latching wire clips to completely remove.
2. Readout Panel Disassembly
a. Remove display board mounting screws (5) and display board
3. Remove handle bolt (2), lock washer (2), wide washer (2), pin aligner (2), and handle
31
