Welch Allyn 5002 Service Manual page 88

Scales with usb connection, mobile stand-on/mobile bariatric/wheelchair/mobile bariatric
Hide thumbs Also See for 5002:
Table of Contents

Advertisement

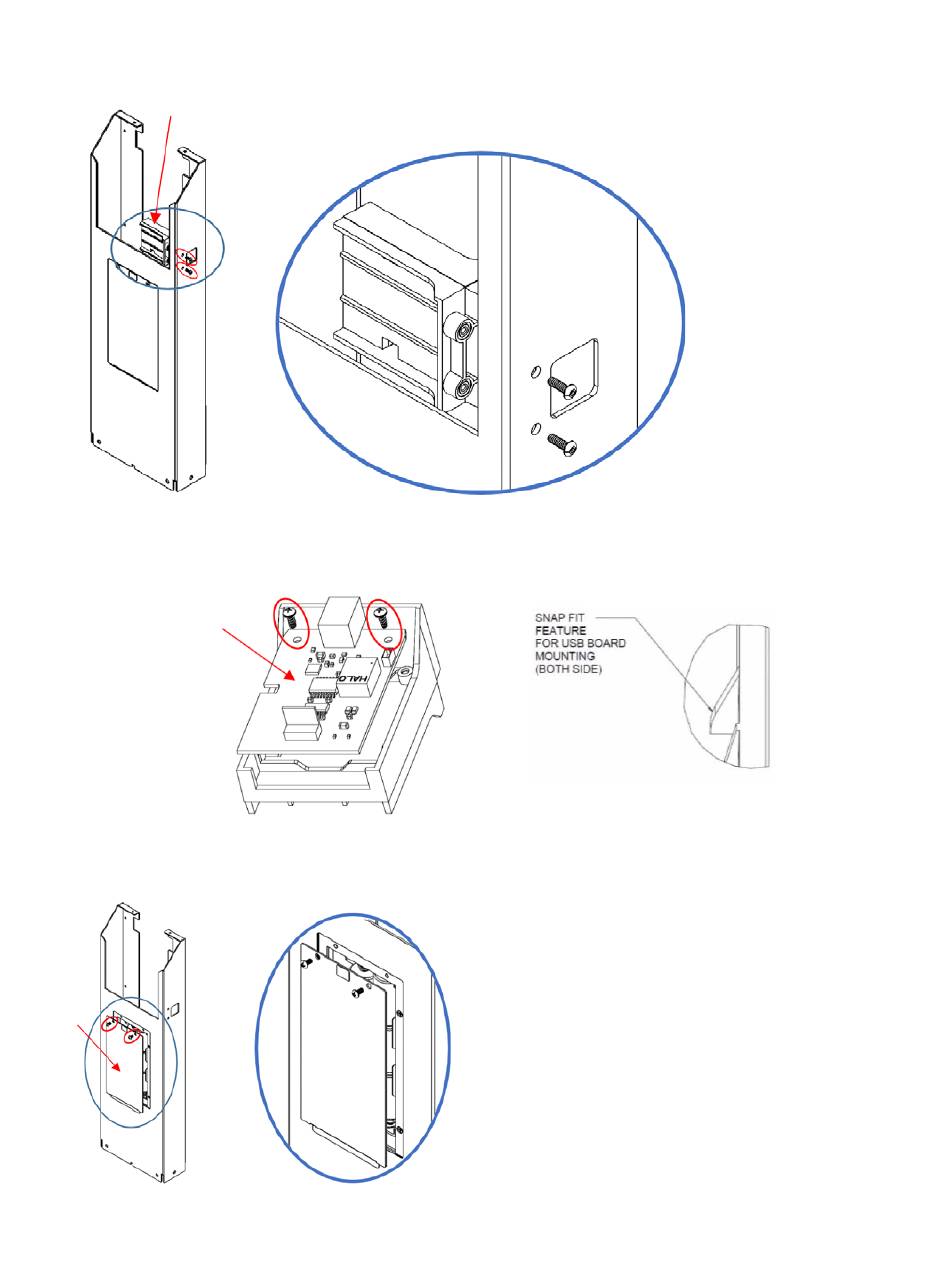

6. Remove USB assembly mounting screws (2) and USB assembly. Disconnect wiring harness to completely
remove.
a. USB Assembly disassembly
i. Remove the USB PCBA board mounting screws and then carefully remove the PCBA board
from the bracket.
7. Remove battery door screws (2) and battery door.
