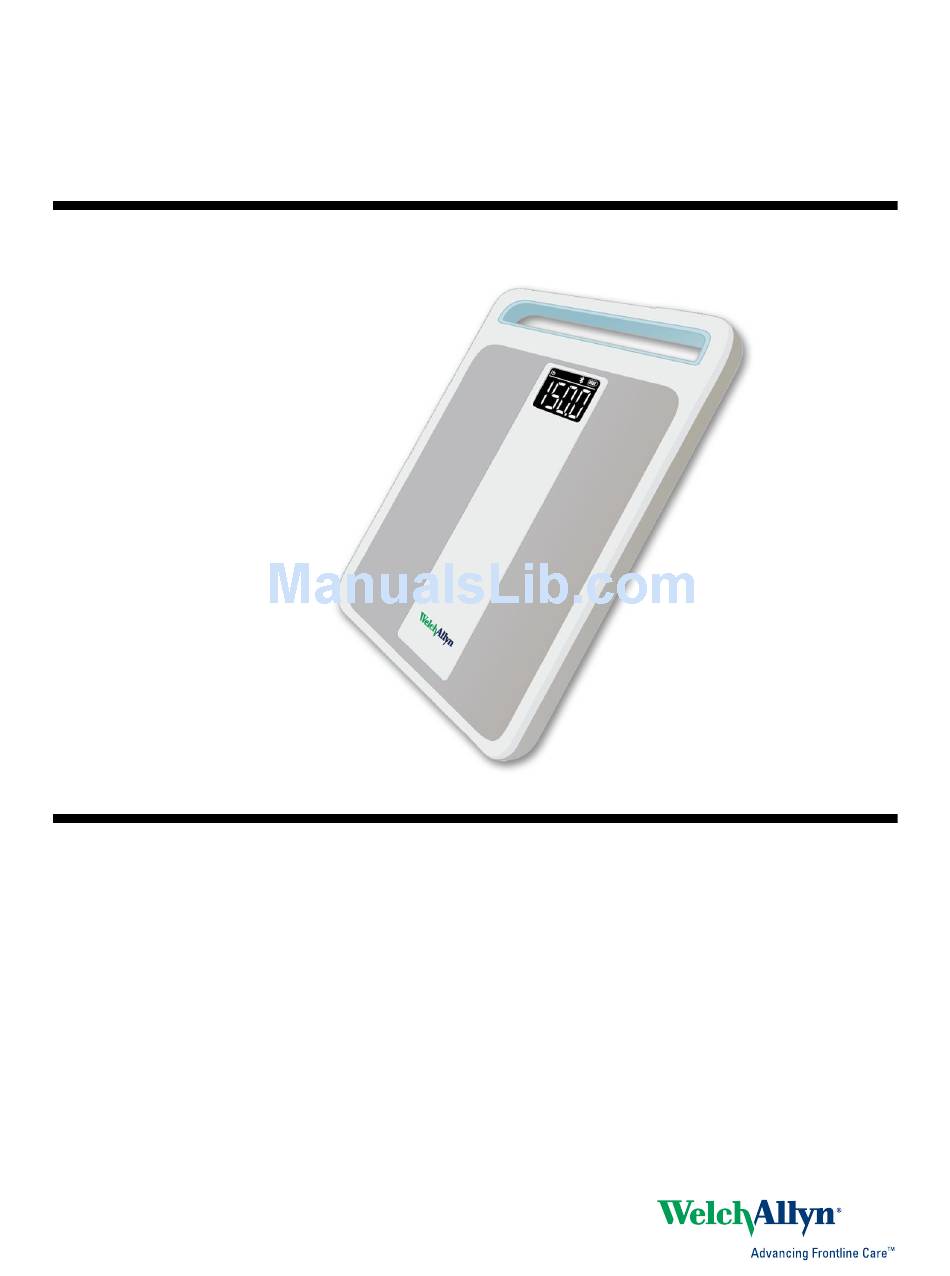

- Page 1 Welch Allyn Remote Monitoring Scale RPM-Scale100 Directions for use 901077 Weight scale, Software Version 1.0...
- Page 2 © 2015 Welch Allyn. All rights are reserved. To support the intended use of the product described in this publication, the purchaser of the product is permitted to copy this publication, for internal distribution only, from the media provided byWelch Allyn. No other use, reproduction, or distribution of this publication, or any part of it, is permitted without written permission from Welch Allyn.
-
Page 3: Table Of Contents
Contents Introductory information ................ 1 Introduction ......................1 Symbols ....................... 1 About warnings and cautions ................3 Ensure accurate measurements ................4 Content list ......................4 Controls and indicators ..................4 Screen elements ....................5 Use the scale .................... 7 Startup ......................... - Page 4 Contents Welch Allyn Remote Monitoring Scale RPM-Scale100...
-
Page 5: Introductory Information
Introductory information Introduction The Welch Allyn Remote Monitoring Scale is intended for adults and children (10-17 years old) to measure weight in a home environment. This Directions for use contains important safety and care information and provides step by step instructions for using the scale. Read the manual thoroughly before using the scale. - Page 6 2 Introductory information Welch Allyn Remote Monitoring Scale RPM-Scale100 Power symbols Direct current (DC) Shipping, storing, and environment symbols Humidity limitation Separate collection of Electrical and Electronic Equipment. Do not dispose as unsorted municipal waste. Temperature limit Atmospheric pressure limitation...
-
Page 7: About Warnings And Cautions
Caution statements can appear on the Welch Allyn weight scale device, the packaging, the shipping container, or in this Directions for use. The Welch Allyn weight scale is safe for patients and clinicians when used in accordance with the instructions and caution statements presented in this Directions for use. -
Page 8: Ensure Accurate Measurements
The following items are in the device box: • Remote Monitoring Scale • (4) AAA alkaline batteries (1.5V each) • (4) extension feet for use on carpet • Directions for use Controls and indicators The Welch Allyn weight scale is simple to use. -
Page 9: Screen Elements
Directions for use Introductory information 5 Scale top No. Feature Description LCD display Displays measurement UNIT and activation button The button enables you to select kg or lb unit measure. Press and hold for 3 seconds to enter pairing mode. Battery compartment (behind cover) Houses (4) AAA alkaline batteries (1.5V each) Sensors (4) - Page 10 6 Introductory information Welch Allyn Remote Monitoring Scale RPM-Scale100 Icon Description Icon Description Kilogram Data transmitting Pound Data pending to transmit to wireless wellness system Low battery charge Full battery charge Bluetooth wireless Bluetooth wireless technology technology is powered on...
-
Page 11: Use The Scale
Use the scale Startup The Welch Allyn weight scale uses SENSE ON™ technology to turn on the scale. Step on the scale with bare feet to begin a measurement. Insert or replace the batteries CAUTION When the symbol appears, the device will power off in four seconds. -
Page 12: Select The Measurement Unit
8 Use the scale Welch Allyn Remote Monitoring Scale RPM-Scale100 2. Press and hold the Unit button on the bottom of the scale for 2 seconds. The Bluetooth pairing sequence is activated. The dotted line surrounding the Bluetooth symbol flashes while discovering the weight scale. -
Page 13: Troubleshooting
Directions for use Use the scale 9 Troubleshooting This section includes a list of error messages and frequently asked questions for problems you may encounter with your weight scale. If the device is not operating as you think it should, check here before arranging for servicing. Error prompt Error Description... - Page 14 10 Use the scale Welch Allyn Remote Monitoring Scale RPM-Scale100 When transmitting data Problem Root cause Solution Data transmission failed Bluetooth wireless technology is off Turn on the Bluetooth wireless technology via the Settings. Application is off Press the icon to run your application.
-
Page 15: Appendices
Appendices Specifications Warning: No modification of this equipment is allowed. Item Specification Power supply 6V 4*AAA alkaline batteries Display mode Blue LCD with White Backlight V.A.: 74x53mm Measurement unit Kilogram / Pound Measurement range 5kg to 200kg / 11lb to 441lb Resolution The measurement resolution 0–220 lb: 0.2lb... -
Page 16: General Radio Compliance
12 Appendices Welch Allyn Remote Monitoring Scale RPM-Scale100 Item Specification Mode of operation Continuous operation Auto-ON SENSE ON technology Auto-OFF About 10 seconds when showing 0.0 About 15 seconds after the weight data is locked Degree of protection Type BF applied part... -
Page 17: Complied Standards List
Directions for use Appendices 13 2.Increase the separation between the equipment and receiver. 3.Consult the dealer or an experienced radio/TV technician for help. Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. FCC Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. -
Page 18: Emissions And Immunity Information
Electromagnetic emissions The Welch Allyn Remote Monitoring Scale RPM-Scale100 is intended for use in the electromagnetic environment specified below. The customer or user of the Welch Allyn Remote Monitoring Scale RPM-Scale100 should assure that it is used in such an environment. - Page 19 The Welch Allyn Remote Monitoring Scale RPM-Scale100 is intended for use in the electromagnetic environment specified below. The customer or the user of the Welch Allyn Remote Monitoring Scale RPM-Scale100 should assure that it is used in such an environment.
- Page 20 The Welch Allyn Remote Monitoring Scale RPM-Scale100 is intended for use in the electromagnetic environment specified below. The customer or the user of the Welch Allyn Remote Monitoring Scale RPM-Scale100 should assure that it is used in such an environment.
-
Page 21: Warranty
The Welch Allyn Remote Monitoring Scale RPM-Scale100 is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or user of the Welch Allyn Remote Monitoring Scale RPM- Scale100 can help prevent electromagnetic interference by maintaining a minimum distance between portable and mobile RF communications equipment (transmitters) and the Welch Allyn Remote Monitoring Scale RPM-Scale100 as recommended below, according to the maximum output power of the communications equipment. -
Page 22: Approved Accessories
Should this device require maintenance (or replacement at our option) under warranty, please deliver the original package to Welch Allyn prepaid. Please return the store receipt (with the retail purchase date) and a note with the reasons for the return.
