6702SP Repair Parts
Unique
Welch Allyn
Identifier
Part Number
1
2
630178
3
30378
4
5
132074
6
130234
7
726551

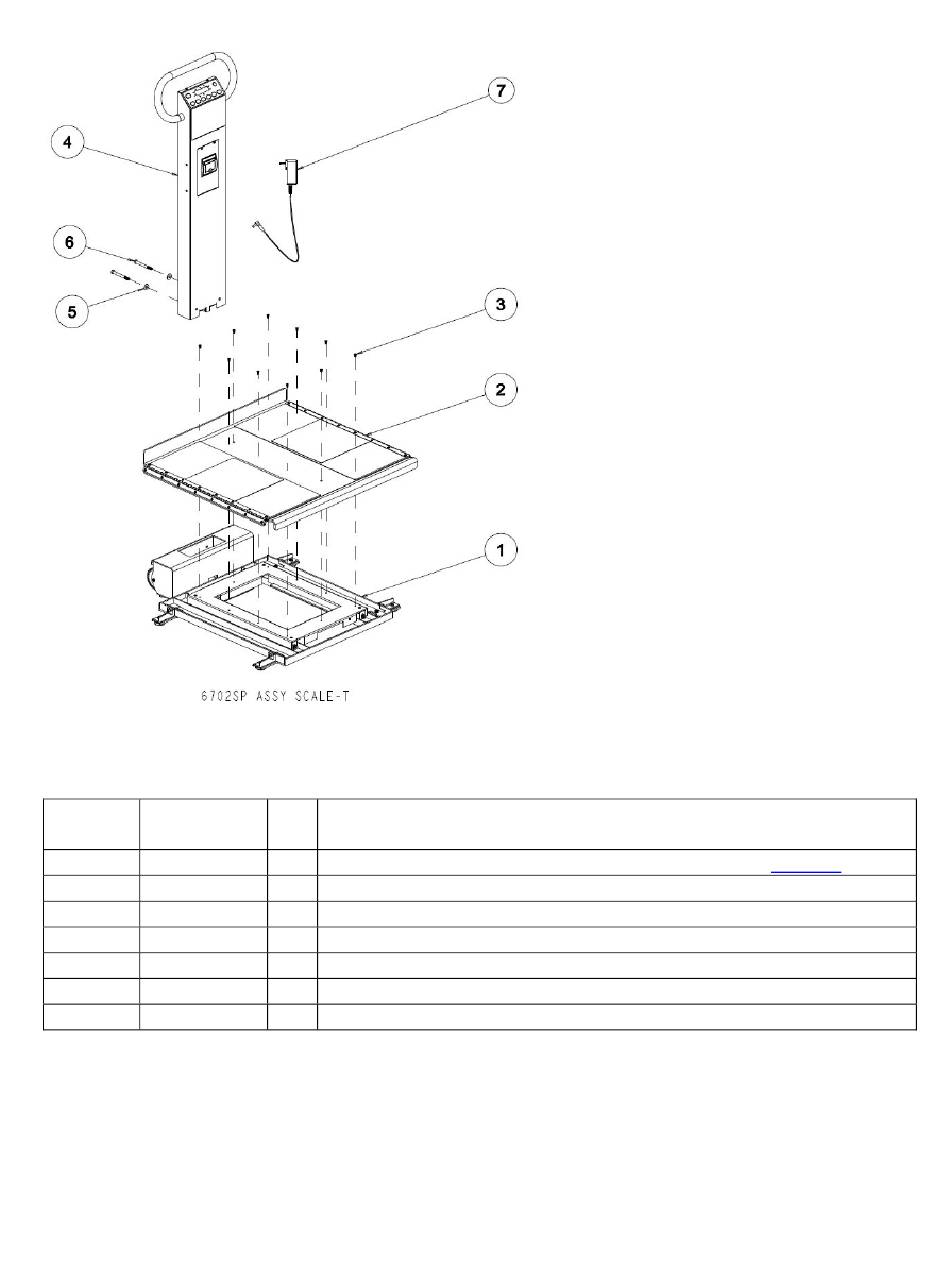

6702SP Top Level
Qty Welch Allyn Part Number Description
SEE BASE DISASSEMBLY FOR VARIATIONS AND PARTS
1
PLATFORM ASSEMBLY 30"X35"
10
10-24 X 1/2 FH SOC SCR
SEE MAST BODY ASSY EXPLODED VIEW Table 2
2
WASHER, 3/8" ID X 1" ODSS
2
BOLT 3/8-16 X 3 3/4" HEX HEAD
1
POWER SUPPLY, EXT, 12VDC
44
Table 17
