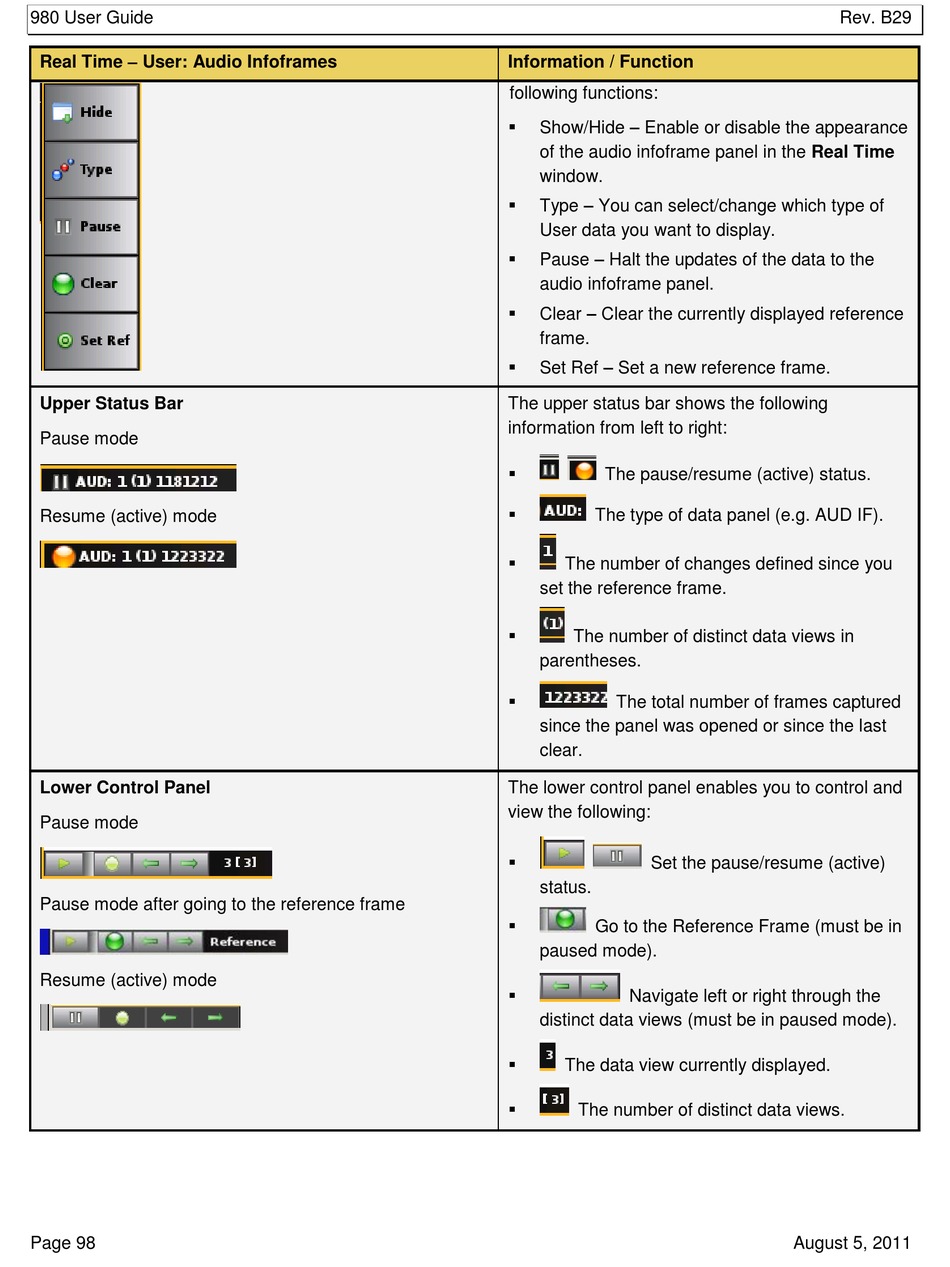

Quantum Data 980 User Manual page 98

980 User Guide
Real Time – User: Audio Infoframes
Upper Status Bar
Pause mode
Resume (active) mode
Lower Control Panel
Pause mode
Pause mode after going to the reference frame
Resume (active) mode
Page 98
Information / Function
following functions:
Show/Hide – Enable or disable the appearance

of the audio infoframe panel in the Real Time
window.
 Type – You can select/change which type of
User data you want to display.
 Pause – Halt the updates of the data to the
audio infoframe panel.
 Clear – Clear the currently displayed reference
frame.
 Set Ref – Set a new reference frame.
The upper status bar shows the following
information from left to right:

The pause/resume (active) status.

The type of data panel (e.g. AUD IF).

The number of changes defined since you
set the reference frame.

The number of distinct data views in
parentheses.

The total number of frames captured
since the panel was opened or since the last
clear.
The lower control panel enables you to control and
view the following:

Set the pause/resume (active)
status.

Go to the Reference Frame (must be in
paused mode).

Navigate left or right through the
distinct data views (must be in paused mode).

The data view currently displayed.

The number of distinct data views.
