980 User Guide

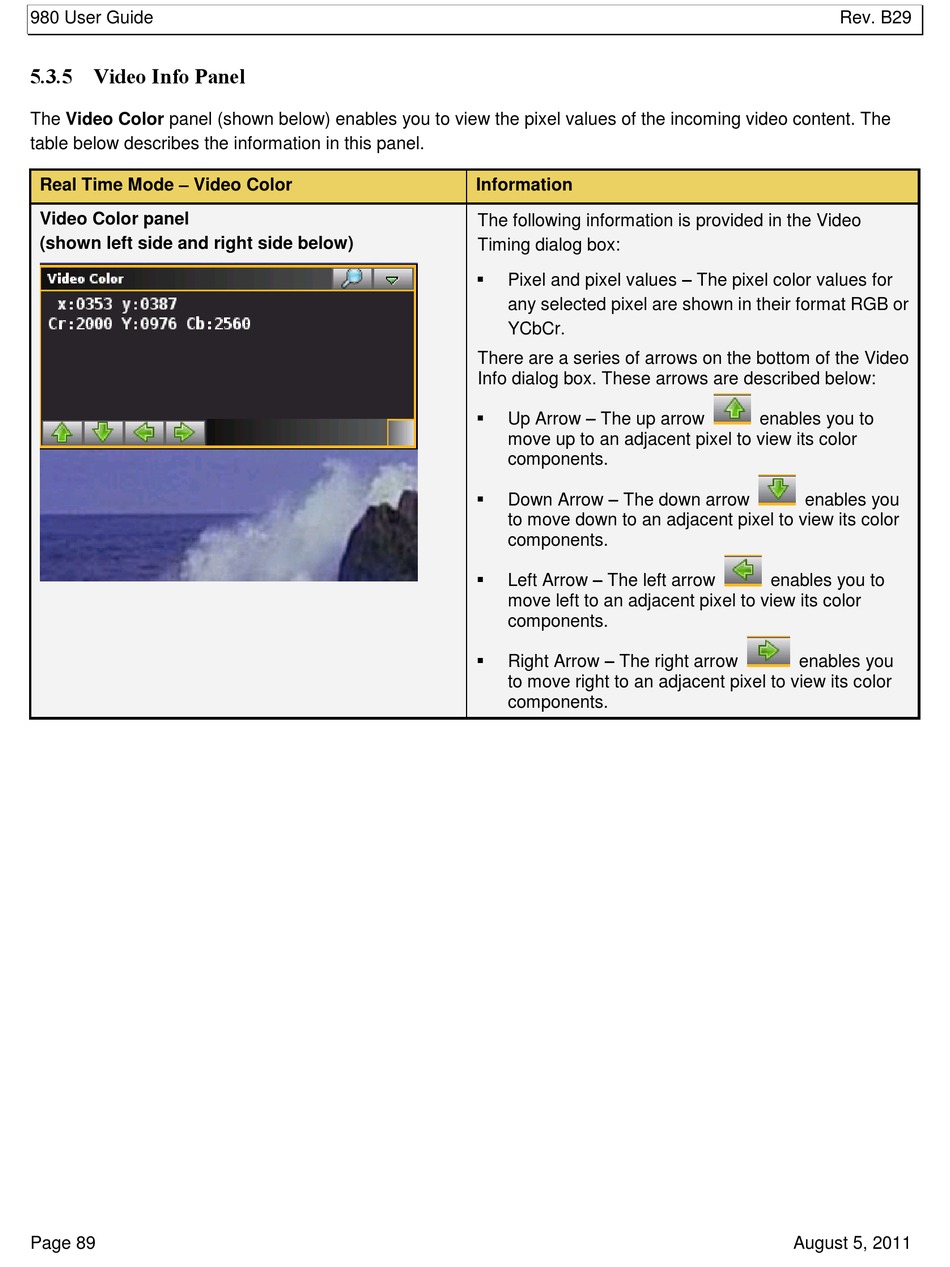

5.3.5 Video Info Panel
The Video Color panel (shown below) enables you to view the pixel values of the incoming video content. The
table below describes the information in this panel.
Real Time Mode – Video Color
Video Color panel
(shown left side and right side below)
Page 89
Information
The following information is provided in the Video
Timing dialog box:
 Pixel and pixel values – The pixel color values for
any selected pixel are shown in their format RGB or
YCbCr.
There are a series of arrows on the bottom of the Video
Info dialog box. These arrows are described below:
 Up Arrow – The up arrow
move up to an adjacent pixel to view its color
components.
 Down Arrow – The down arrow
to move down to an adjacent pixel to view its color
components.
Left Arrow – The left arrow

move left to an adjacent pixel to view its color
components.
 Right Arrow – The right arrow
to move right to an adjacent pixel to view its color
components.
Rev. B29
enables you to
enables you
enables you to
enables you
August 5, 2011
