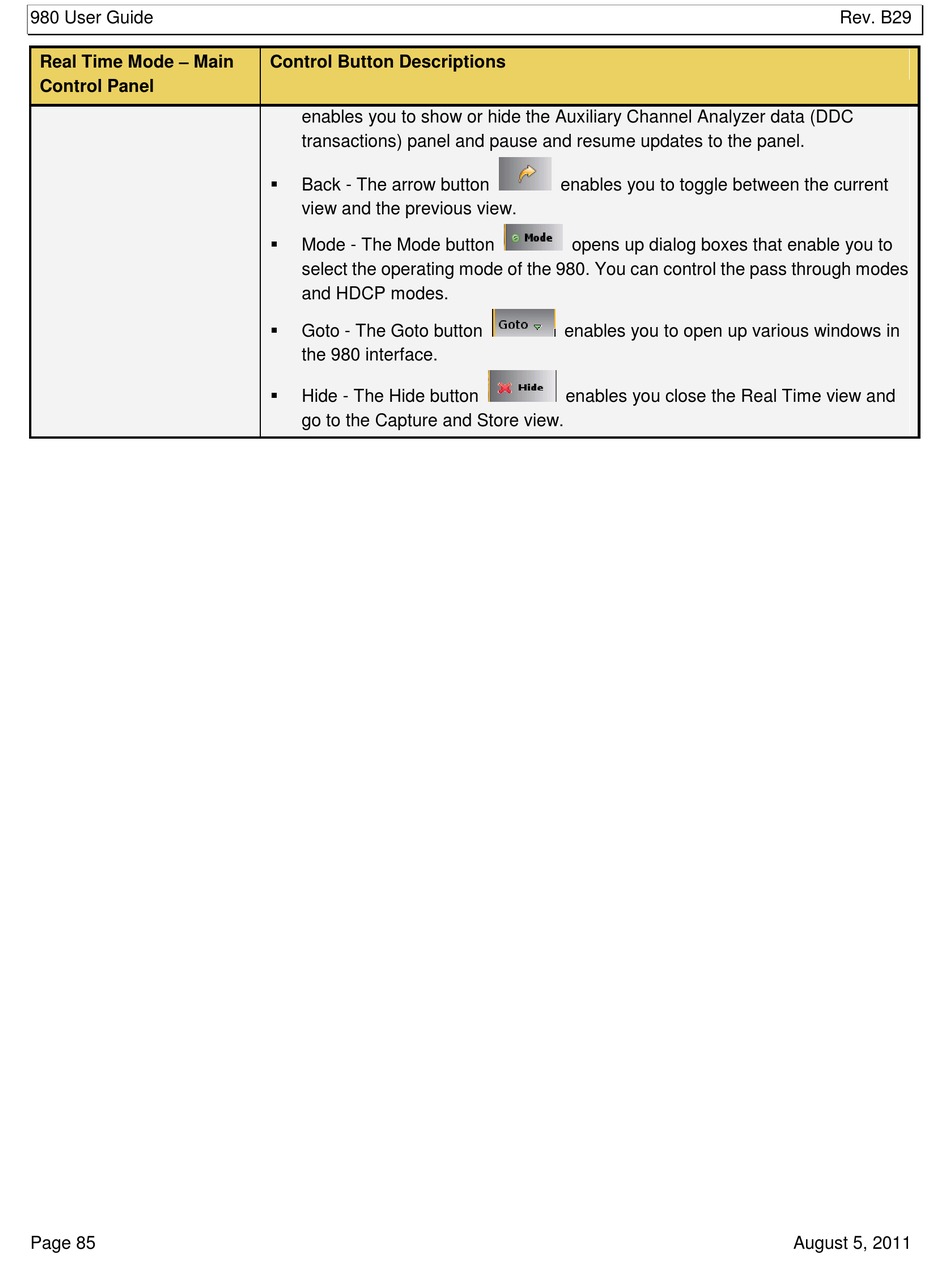

Real Time Mode – Main
Control Panel
Page 85
Control Button Descriptions
enables you to show or hide the Auxiliary Channel Analyzer data (DDC
transactions) panel and pause and resume updates to the panel.

Back - The arrow button
view and the previous view.

Mode - The Mode button
select the operating mode of the 980. You can control the pass through modes
and HDCP modes.

Goto - The Goto button
the 980 interface.

Hide - The Hide button
go to the Capture and Store view.
enables you to toggle between the current
opens up dialog boxes that enable you to
enables you to open up various windows in
enables you close the Real Time view and
