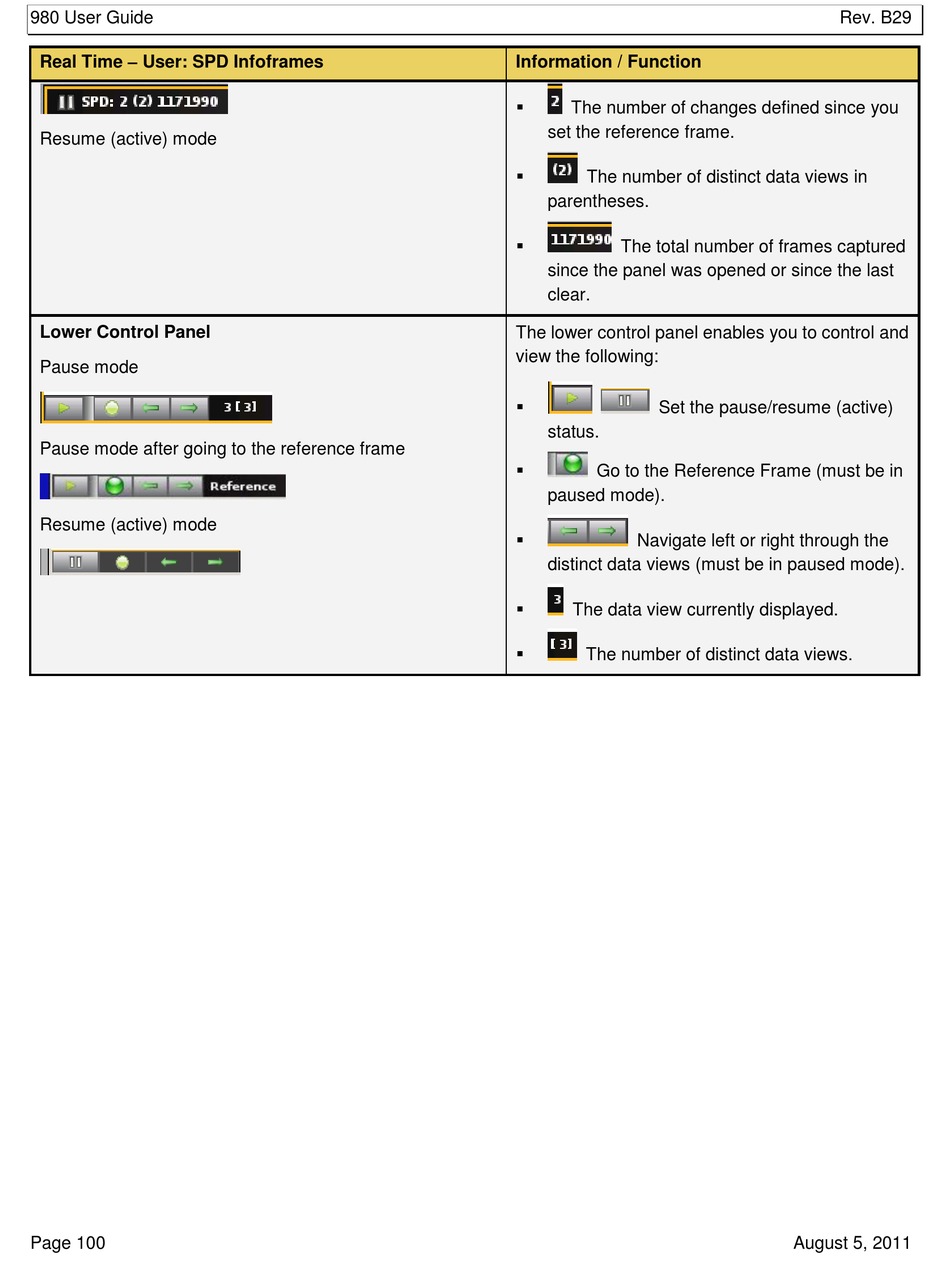

Quantum Data 980 User Manual page 100

980 User Guide
Real Time – User: SPD Infoframes
Resume (active) mode
Lower Control Panel
Pause mode
Pause mode after going to the reference frame
Resume (active) mode
Page 100
Information / Function

The number of changes defined since you
set the reference frame.

The number of distinct data views in
parentheses.

The total number of frames captured
since the panel was opened or since the last
clear.
The lower control panel enables you to control and
view the following:

Set the pause/resume (active)
status.

Go to the Reference Frame (must be in
paused mode).

Navigate left or right through the
distinct data views (must be in paused mode).

The data view currently displayed.

The number of distinct data views.
Rev. B29
August 5, 2011
