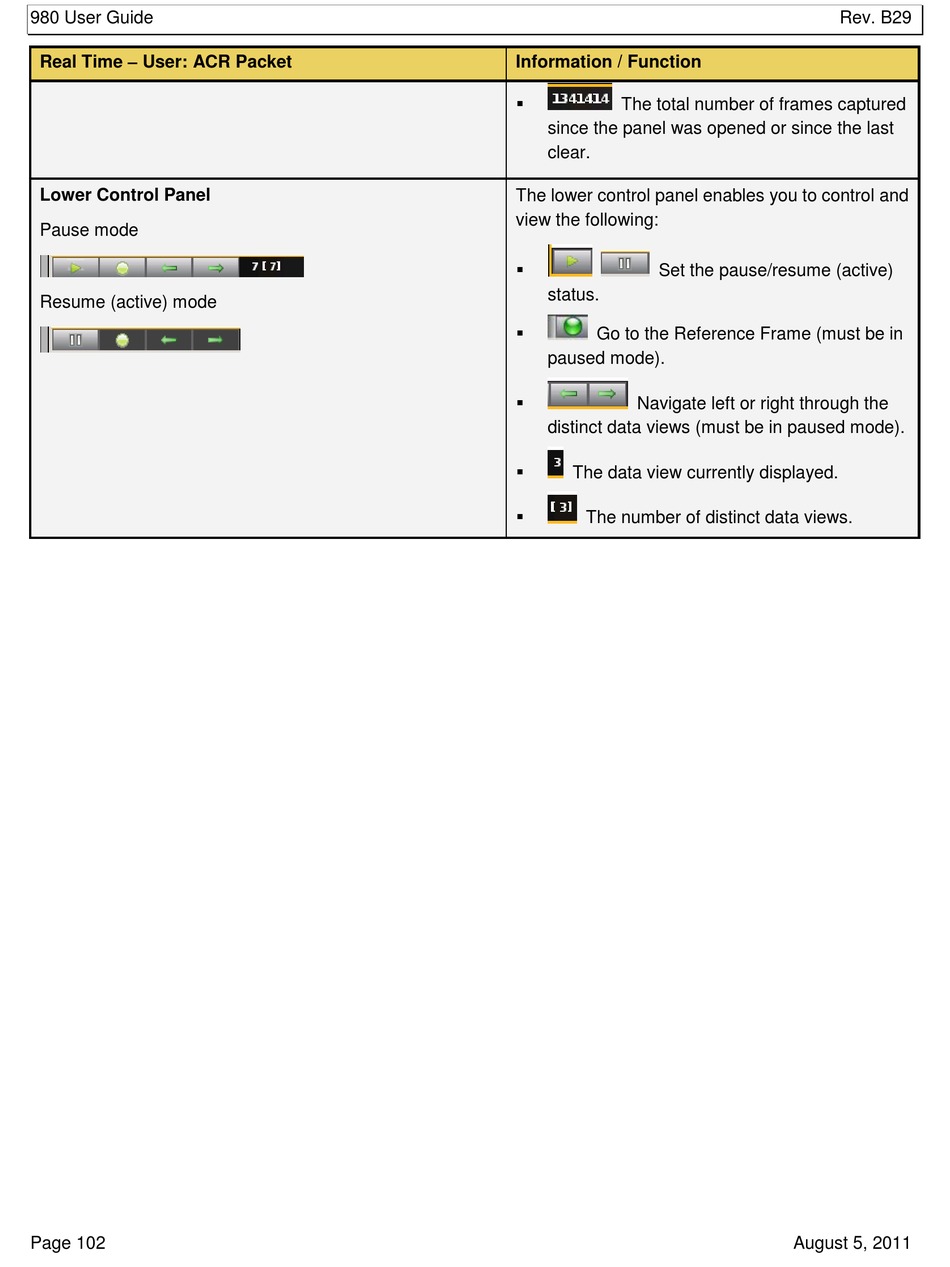

980 User Guide
Real Time – User: ACR Packet
Lower Control Panel
Pause mode
Resume (active) mode
Page 102
Information / Function

The total number of frames captured
since the panel was opened or since the last
clear.
The lower control panel enables you to control and
view the following:

Set the pause/resume (active)
status.

Go to the Reference Frame (must be in
paused mode).

Navigate left or right through the
distinct data views (must be in paused mode).

The data view currently displayed.

The number of distinct data views.
