980 User Guide

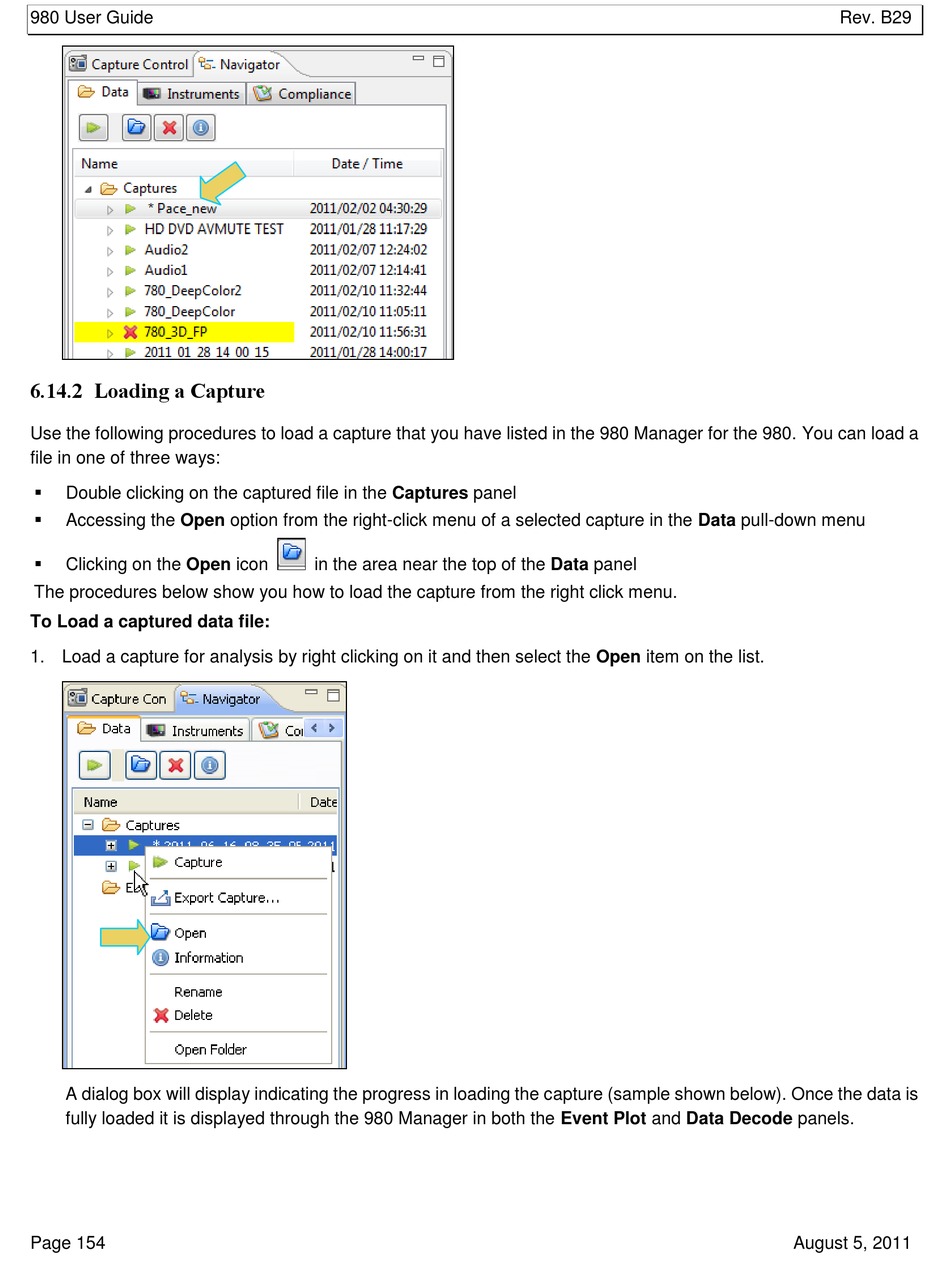

6.14.2 Loading a Capture
Use the following procedures to load a capture that you have listed in the 980 Manager for the 980. You can load a
file in one of three ways:

Double clicking on the captured file in the Captures panel

Accessing the Open option from the right-click menu of a selected capture in the Data pull-down menu

Clicking on the Open icon
The procedures below show you how to load the capture from the right click menu.
To Load a captured data file:
1. Load a capture for analysis by right clicking on it and then select the Open item on the list.
A dialog box will display indicating the progress in loading the capture (sample shown below). Once the data is
fully loaded it is displayed through the 980 Manager in both the Event Plot and Data Decode panels.
Page 154
in the area near the top of the Data panel
