980 User Guide

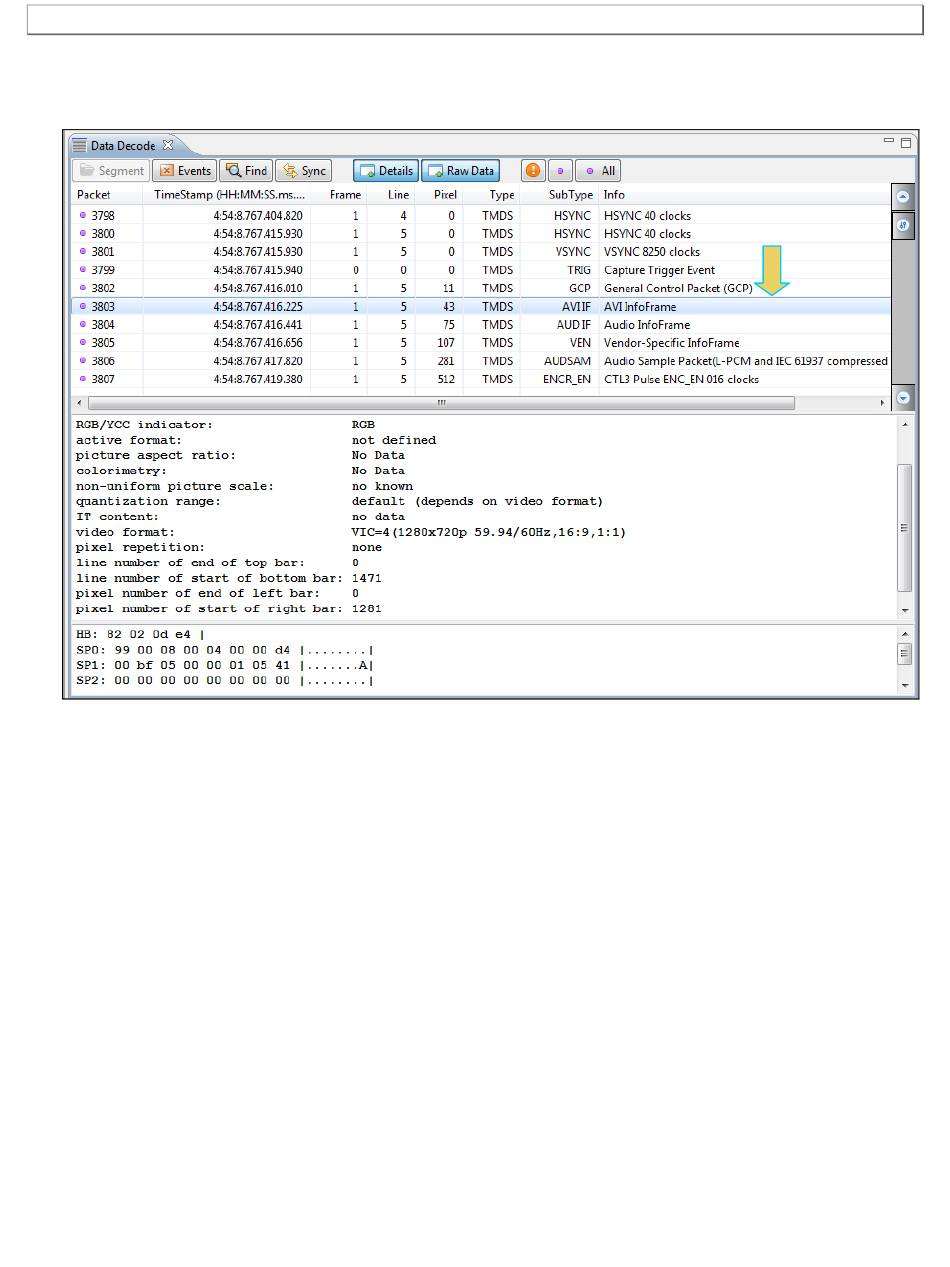

2. Highlight an AVI infoframe record to view its contents as shown below. The Data Decode window above
shows the AVI Infoframe data record selected. The AVI infoframe contents are parsed out in human readable
text on the upper panel. The hex representation of the contents is presented in the lower panel.
Page 135
Rev. B29
August 5, 2011
