980 User Guide

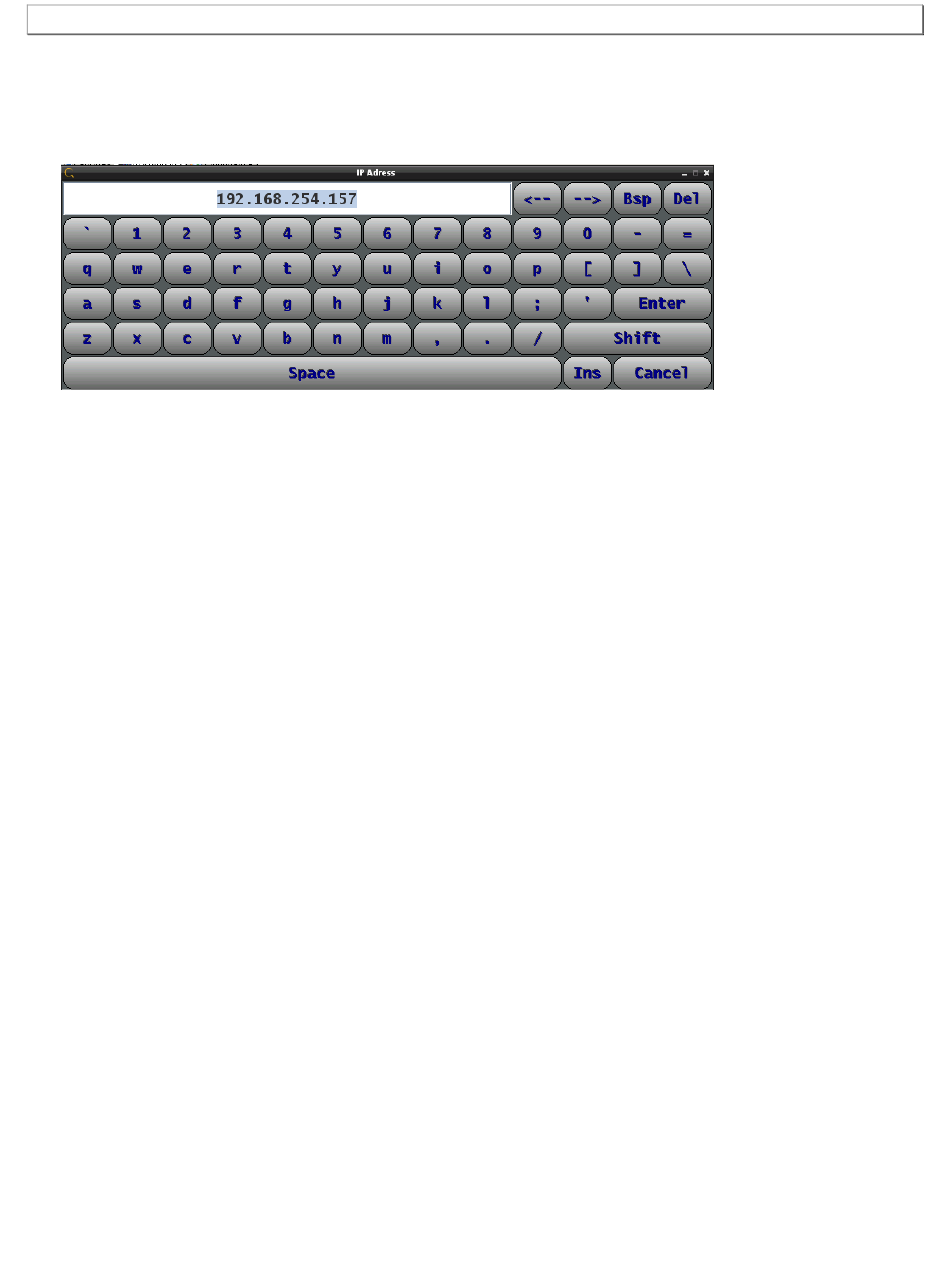

4. Alternatively, if you wish to set the IP address without DHCP, touch select the IP address field to access the
on-line keyboard which enables you to change the IP address. Edit the IP address and press the Enter key on
the on-line keyboard.
Note: You will have to deselect DHCP if it is checked in order to access the pop up keyboard.
5. Touch select the Change activation button to initiate the change. You do not have to reboot the 980 for the IP
address change to take effect.
To set the IP address of the 980 through the command line
1. Open up a DOS window on your PC.
Note: This procedure requires a telnet session. Use standards Windows OS utilities or third party utilities.
2. Establish a telnet session to the 980 using the default IP address as follows:
telnet 192.168.1.10
You will be prompted with the Pscope login: prompt. Enter the following for a user name and password:
Pscope login: qd
Password: qd
When the p-scope prompt appears, you will need to execute a command to change its IP address using the
following command:
Setip <IP_address> <subnet mask> <gateway>
Note: You will have to include the subnet mask and gateway address as arguments.
The following is an example:
p-scope> setip 192.168.254.100 255.255.255.0 192.168.254.1
If you wish to use DHCP to set the IP address, use the following command:
p-scope> setip dhcp
Reboot the 980 by pressing the power button on the lower middle part of the front panel bezel. When the 980
initializes, you will be able to view the new IP address by touch selecting the terminal icon on the lower right
corner of the 980 built-in display through the Connection Properties dialog box to view the current IP
address.
