980 User Guide

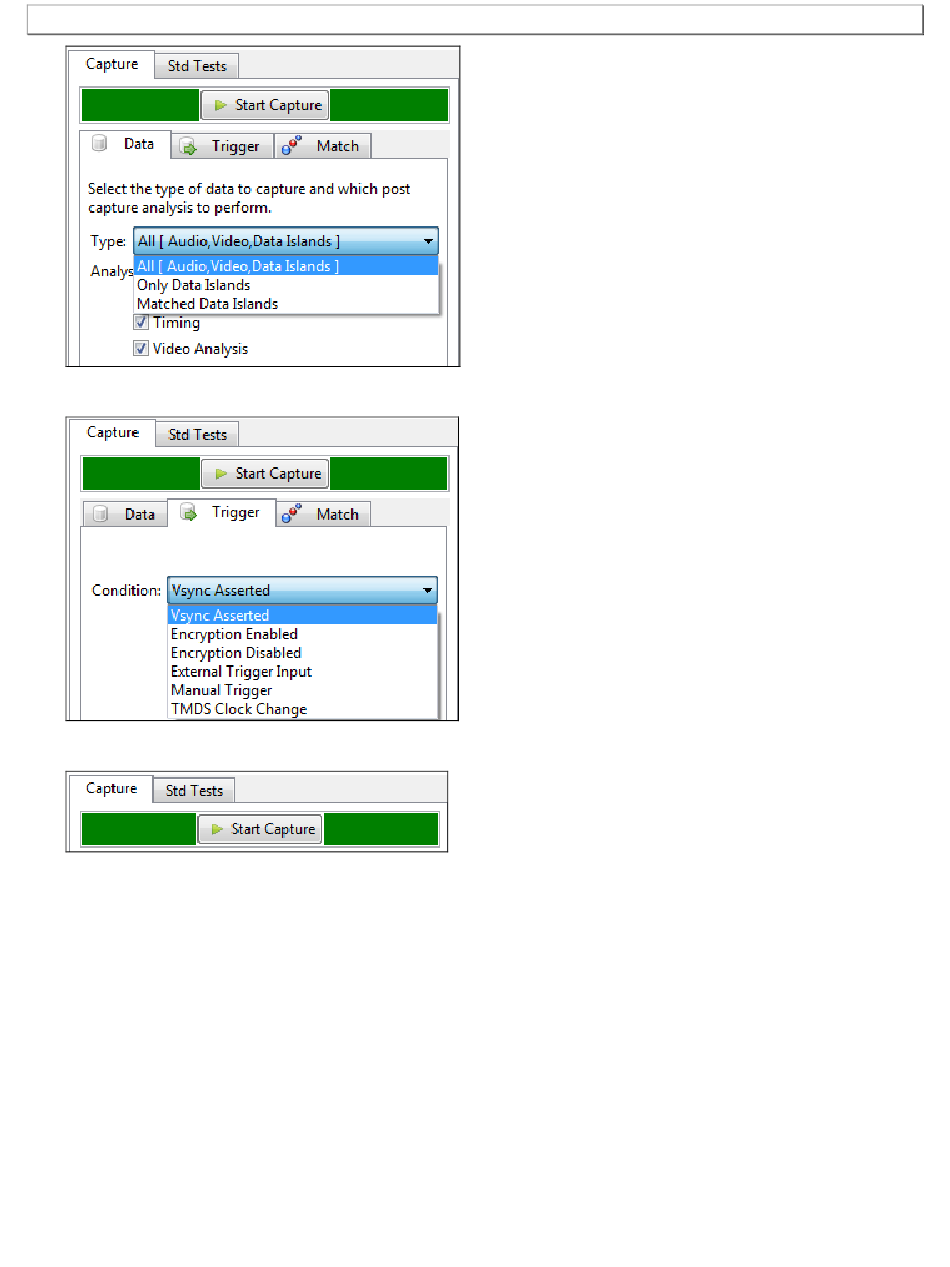

6. Select Vsync Asserted for the Trigger Selection condition.
7. Click on the Execute Capture button to initiate the test.
The 980 Protocol Analyzer will capture the data including the video data. A series of dialog boxes will appear
showing the capturing in progress (one example shown below).
Note: If there is some action that needs to be taken by a user in order to cause the trigger condition occur, the
capture dialog box will indicate that. This is shown in the following screen shot.
