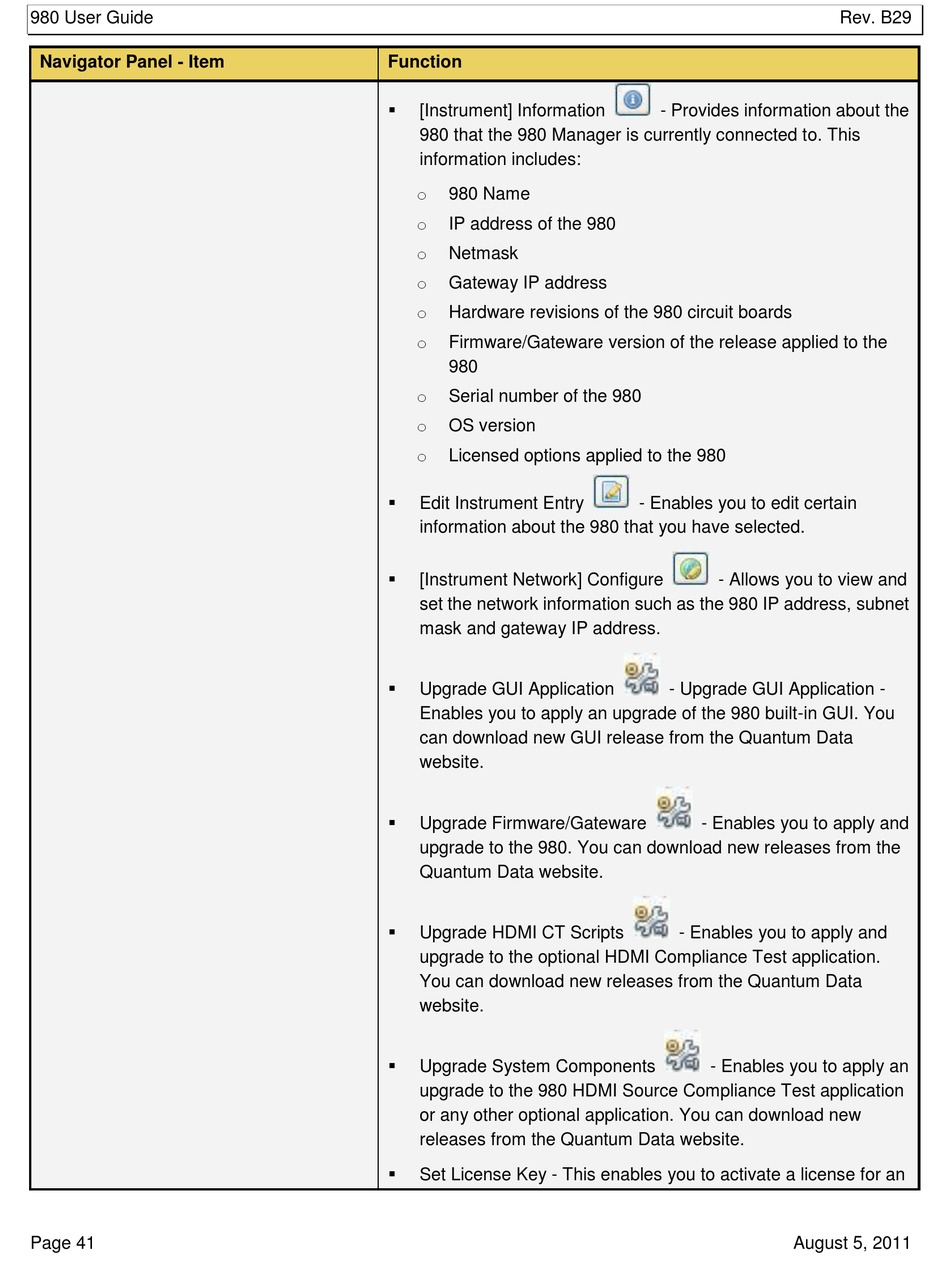

Quantum Data 980 User Manual page 41

980 User Guide
Navigator Panel - Item
Page 41
Function

[Instrument] Information
980 that the 980 Manager is currently connected to. This
information includes:
o
980 Name
o
IP address of the 980
o
Netmask
o
Gateway IP address
o
Hardware revisions of the 980 circuit boards
o
Firmware/Gateware version of the release applied to the
980
o
Serial number of the 980
o
OS version
o
Licensed options applied to the 980

Edit Instrument Entry
information about the 980 that you have selected.

[Instrument Network] Configure
set the network information such as the 980 IP address, subnet
mask and gateway IP address.

Upgrade GUI Application
Enables you to apply an upgrade of the 980 built-in GUI. You
can download new GUI release from the Quantum Data
website.

Upgrade Firmware/Gateware
upgrade to the 980. You can download new releases from the
Quantum Data website.

Upgrade HDMI CT Scripts
upgrade to the optional HDMI Compliance Test application.
You can download new releases from the Quantum Data
website.

Upgrade System Components
upgrade to the 980 HDMI Source Compliance Test application
or any other optional application. You can download new
releases from the Quantum Data website.

Set License Key - This enables you to activate a license for an
- Provides information about the
- Enables you to edit certain
- Allows you to view and
- Upgrade GUI Application -
- Enables you to apply and
- Enables you to apply and
- Enables you to apply an
August 5, 2011
Rev. B29
