980 User Guide
2.8

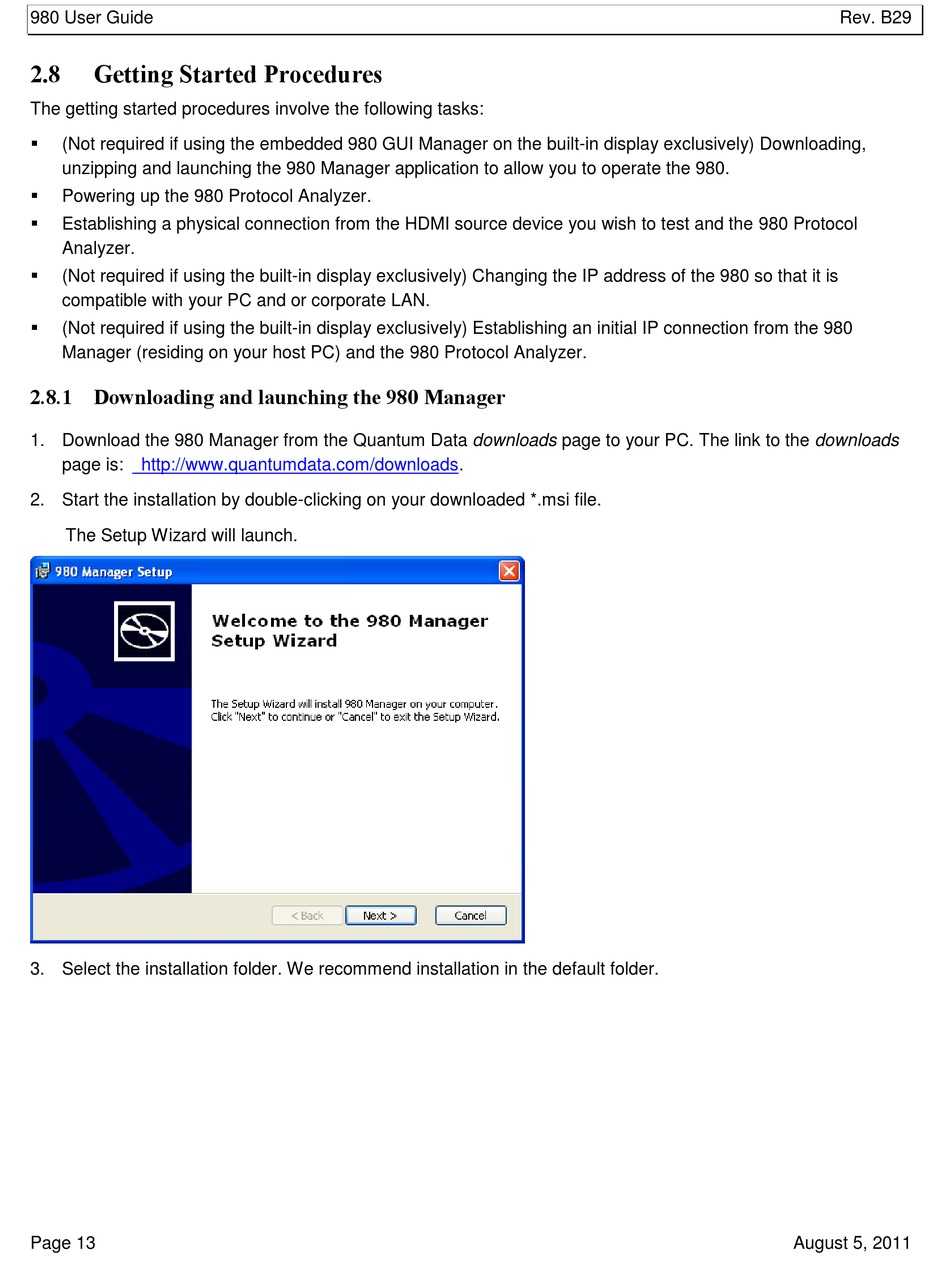

Getting Started Procedures

The getting started procedures involve the following tasks:

(Not required if using the embedded 980 GUI Manager on the built-in display exclusively) Downloading,
unzipping and launching the 980 Manager application to allow you to operate the 980.

Powering up the 980 Protocol Analyzer.

Establishing a physical connection from the HDMI source device you wish to test and the 980 Protocol
Analyzer.

(Not required if using the built-in display exclusively) Changing the IP address of the 980 so that it is
compatible with your PC and or corporate LAN.

(Not required if using the built-in display exclusively) Establishing an initial IP connection from the 980
Manager (residing on your host PC) and the 980 Protocol Analyzer.
2.8.1 Downloading and launching the 980 Manager
1. Download the 980 Manager from the Quantum Data downloads page to your PC. The link to the downloads
page is: http://www.quantumdata.com/downloads.
2. Start the installation by double-clicking on your downloaded *.msi file.
The Setup Wizard will launch.
3. Select the installation folder. We recommend installation in the default folder.
