Quantum Data 980 User Manual page 40

980 User Guide

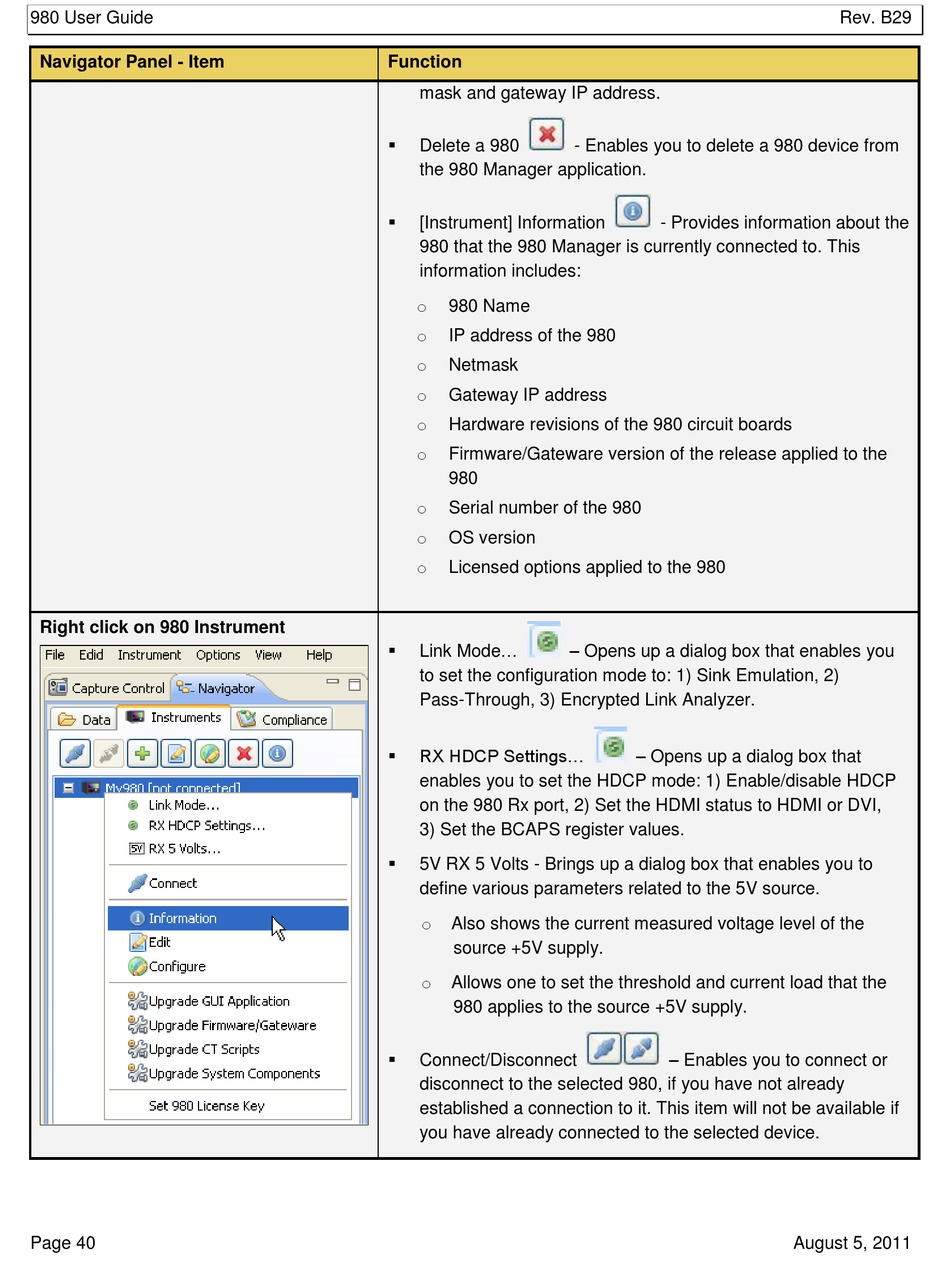

Navigator Panel - Item
Right click on 980 Instrument
Page 40
Function
mask and gateway IP address.

Delete a 980
the 980 Manager application.

[Instrument] Information
980 that the 980 Manager is currently connected to. This
information includes:
o
980 Name
o
IP address of the 980
o
Netmask
o
Gateway IP address
o
Hardware revisions of the 980 circuit boards
o
Firmware/Gateware version of the release applied to the
980
o
Serial number of the 980
o
OS version
o
Licensed options applied to the 980

Link Mode...
to set the configuration mode to: 1) Sink Emulation, 2)
Pass-Through, 3) Encrypted Link Analyzer.
 RX HDCP Settings...
enables you to set the HDCP mode: 1) Enable/disable HDCP
on the 980 Rx port, 2) Set the HDMI status to HDMI or DVI,
3) Set the BCAPS register values.

5V RX 5 Volts - Brings up a dialog box that enables you to
define various parameters related to the 5V source.
o
Also shows the current measured voltage level of the
source +5V supply.
o
Allows one to set the threshold and current load that the
980 applies to the source +5V supply.

Connect/Disconnect
disconnect to the selected 980, if you have not already
established a connection to it. This item will not be available if
you have already connected to the selected device.
- Enables you to delete a 980 device from
- Provides information about the
– Opens up a dialog box that enables you
– Opens up a dialog box that
– Enables you to connect or
Rev. B29
August 5, 2011
