You can view captured 3D images in the Video Analysis panel. The 3D images appear adjacent to one another
in the window, either side by side or one on top and the other below it for the left and right eyes depending on

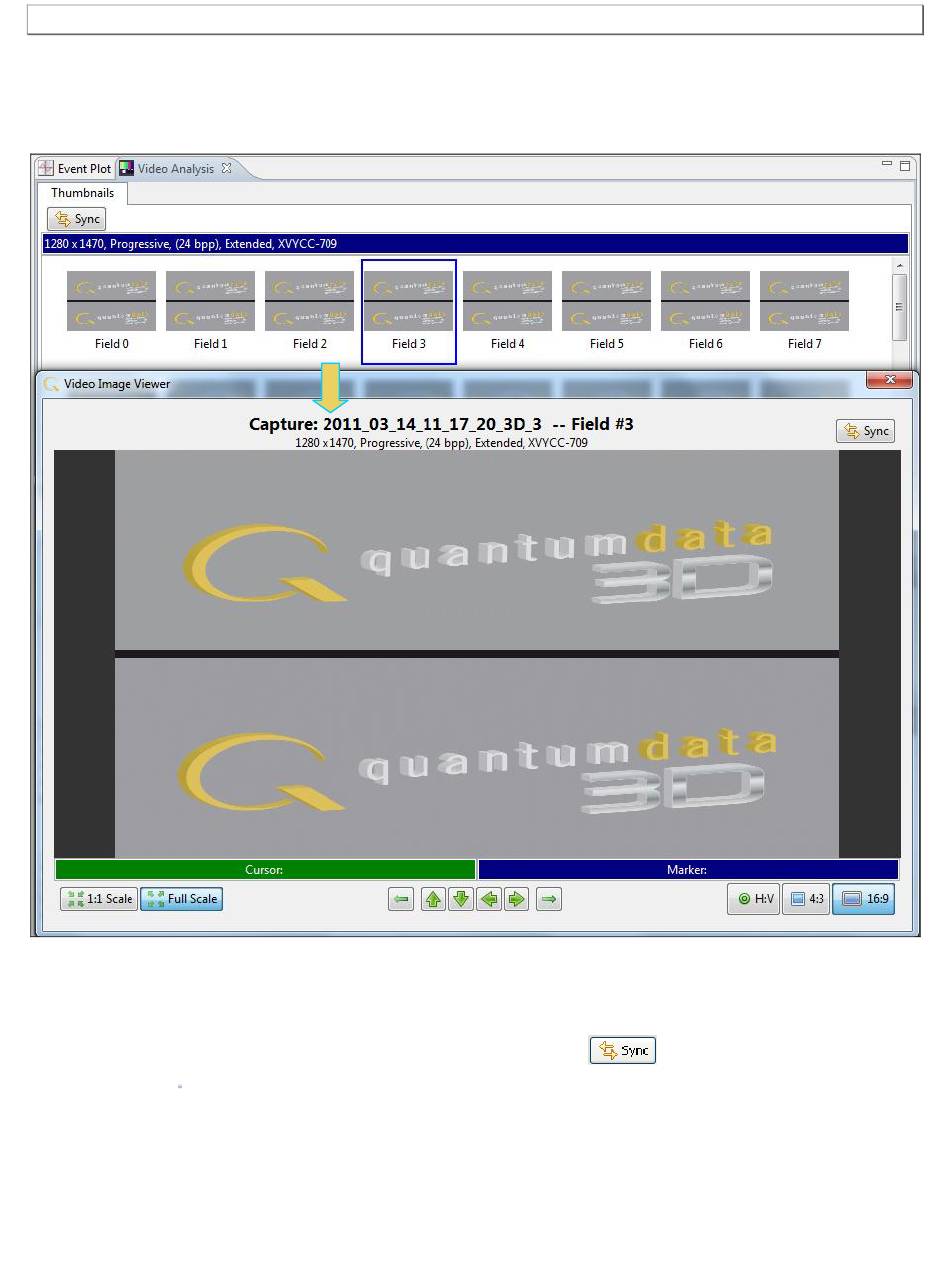

the 3D structure that is used. The screen shot below shows an example of a 3D image in the Frame Packing
format at 720p60. Note the vertical timing (1470 lines) shown in the heading area just above the top image.
9. Navigate to the Data Decode panel by first synchronizing the Data Decode Panel to the Video Analysis panel
and then activating the Data Decode panel. The Video Analysis panel is shown in the screen image below.
The Video Analysis panel can synchronize with the Data Decode panel by pressing the ALT key and clicking
on a frame. You can also synchronize by activating the sync button
Decode panel.
