6.15.3 Setting the HDCP mode
The 980 enables you to enable and disable HDCP on the Rx sink emulation port. This enables you to test how your
source device under test responds to a sink that does not support HDCP. You can also configure certain HDCP
configuration registers such as the BSTATUS and BCAPS. Use the following procedures to set the HDCP mode
and registers.

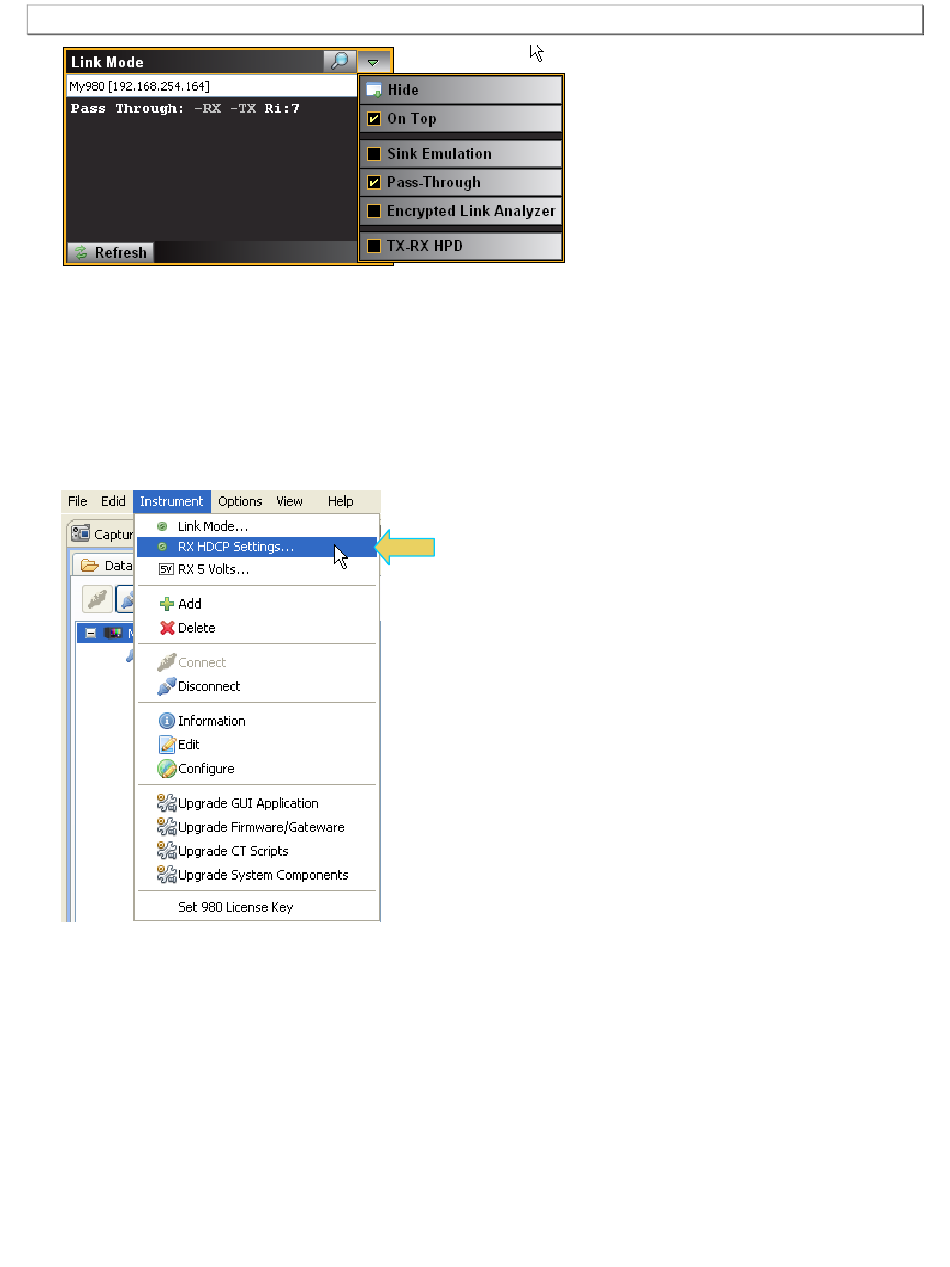

1. Select the RX HDCP Settings... item from the Instrument pull-down menu on the built-in front panel as shown
below.
The mode dialog box appears as shown below.
