980 User Guide
Rev. B29

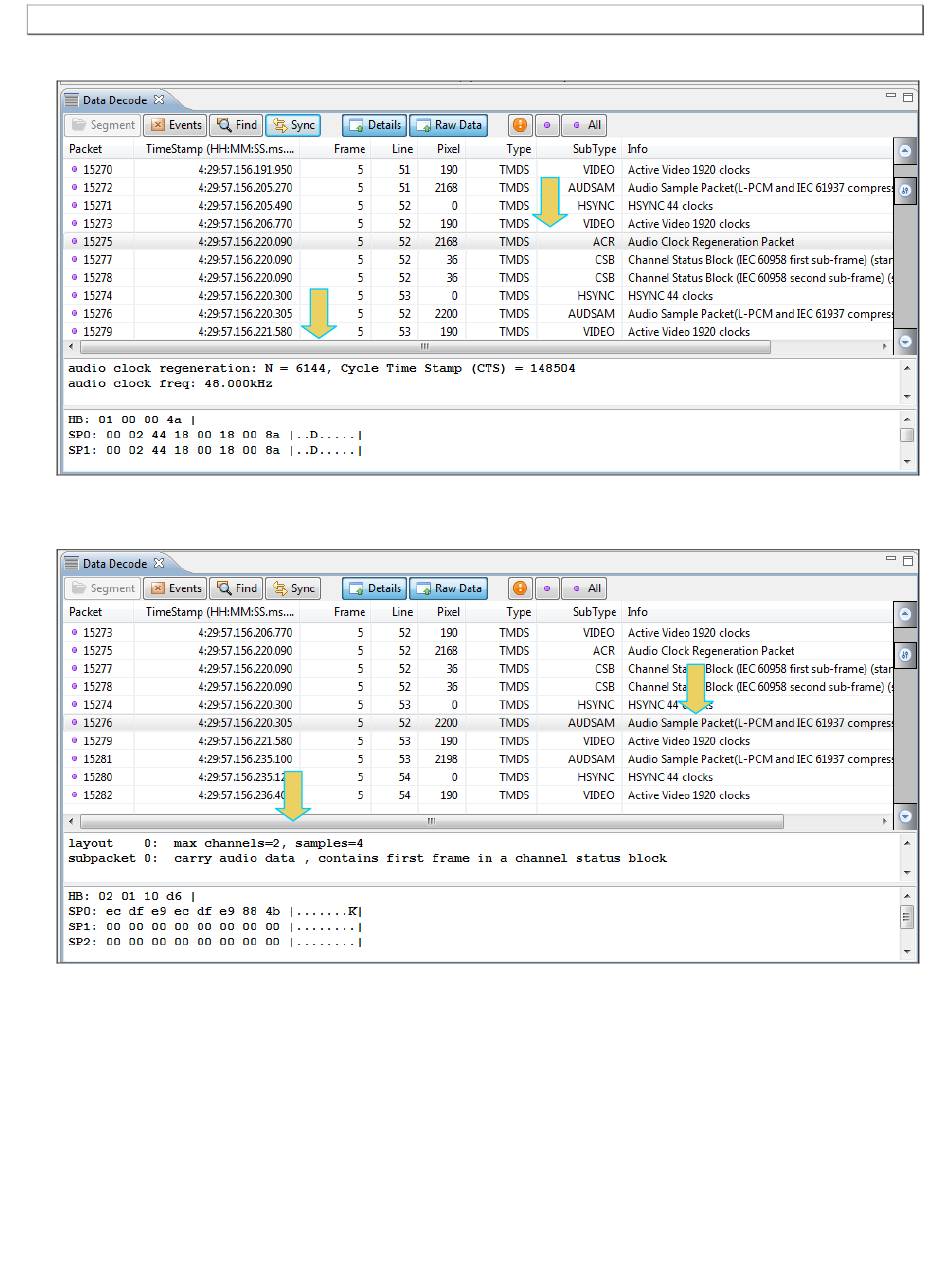

6. Highlight an Audio Clock Regeneration packet record to view its contents as shown below.
7. Highlight an audio sample packet record to view its contents as shown below. The number of channels and
samples are provided and the content of the samples is shown in the lower panel.
Page 138
August 5, 2011
