980 User Guide

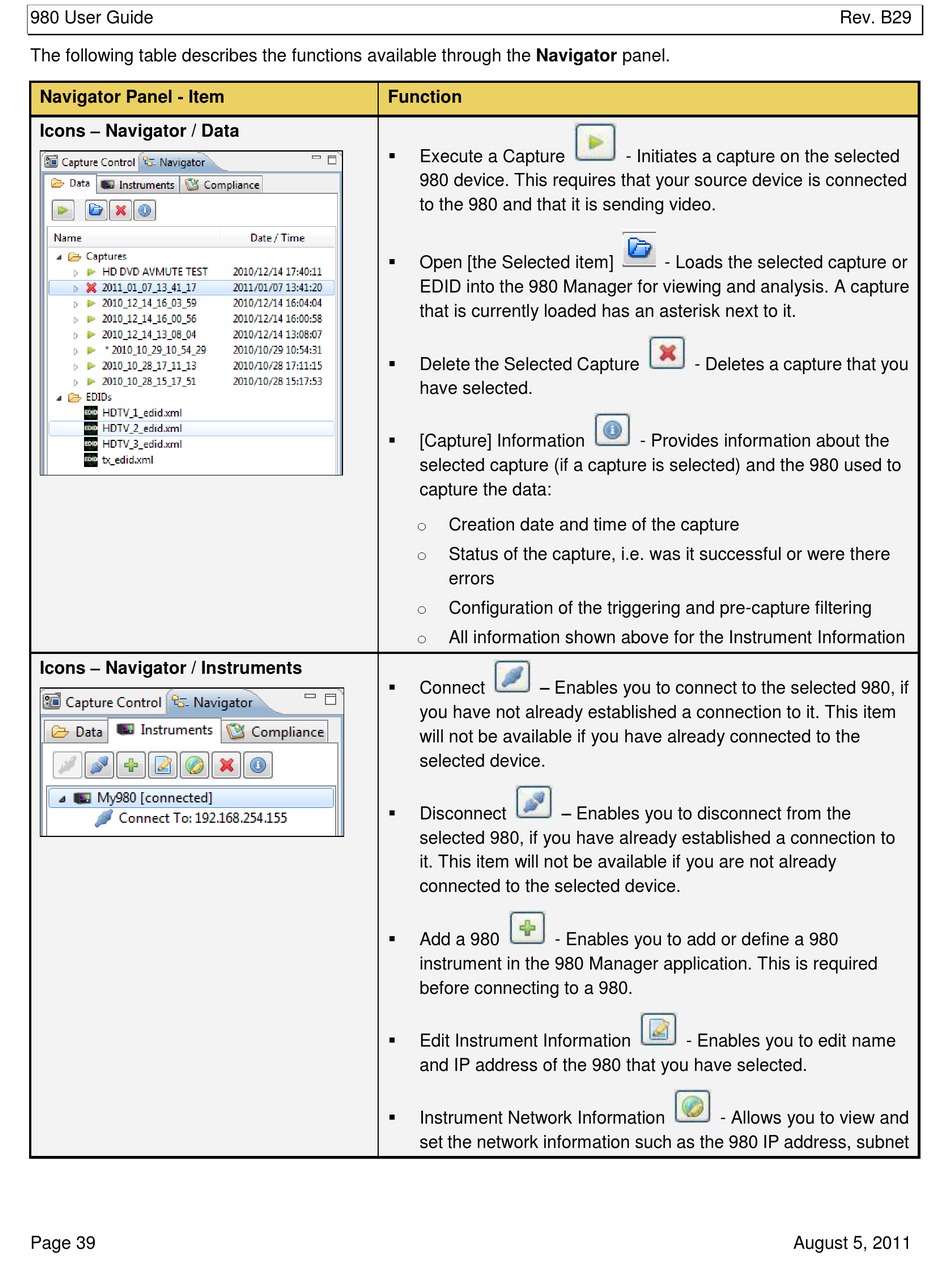

The following table describes the functions available through the Navigator panel.
Navigator Panel - Item
Icons – Navigator / Data
Icons – Navigator / Instruments
Page 39
Function

Execute a Capture
980 device. This requires that your source device is connected
to the 980 and that it is sending video.

Open [the Selected item]
EDID into the 980 Manager for viewing and analysis. A capture
that is currently loaded has an asterisk next to it.

Delete the Selected Capture
have selected.

[Capture] Information
selected capture (if a capture is selected) and the 980 used to
capture the data:
o
Creation date and time of the capture
o
Status of the capture, i.e. was it successful or were there
errors
o
Configuration of the triggering and pre-capture filtering
o
All information shown above for the Instrument Information
 – Enables you to connect to the selected 980, if
Connect
you have not already established a connection to it. This item
will not be available if you have already connected to the
selected device.
 – Enables you to disconnect from the
Disconnect
selected 980, if you have already established a connection to
it. This item will not be available if you are not already
connected to the selected device.

Add a 980 - Enables you to add or define a 980
instrument in the 980 Manager application. This is required
before connecting to a 980.

Edit Instrument Information
and IP address of the 980 that you have selected.

Instrument Network Information
set the network information such as the 980 IP address, subnet
- Initiates a capture on the selected
- Loads the selected capture or
- Deletes a capture that you
- Provides information about the
- Enables you to edit name
- Allows you to view and
August 5, 2011
Rev. B29
