3.1.2 Top level menus

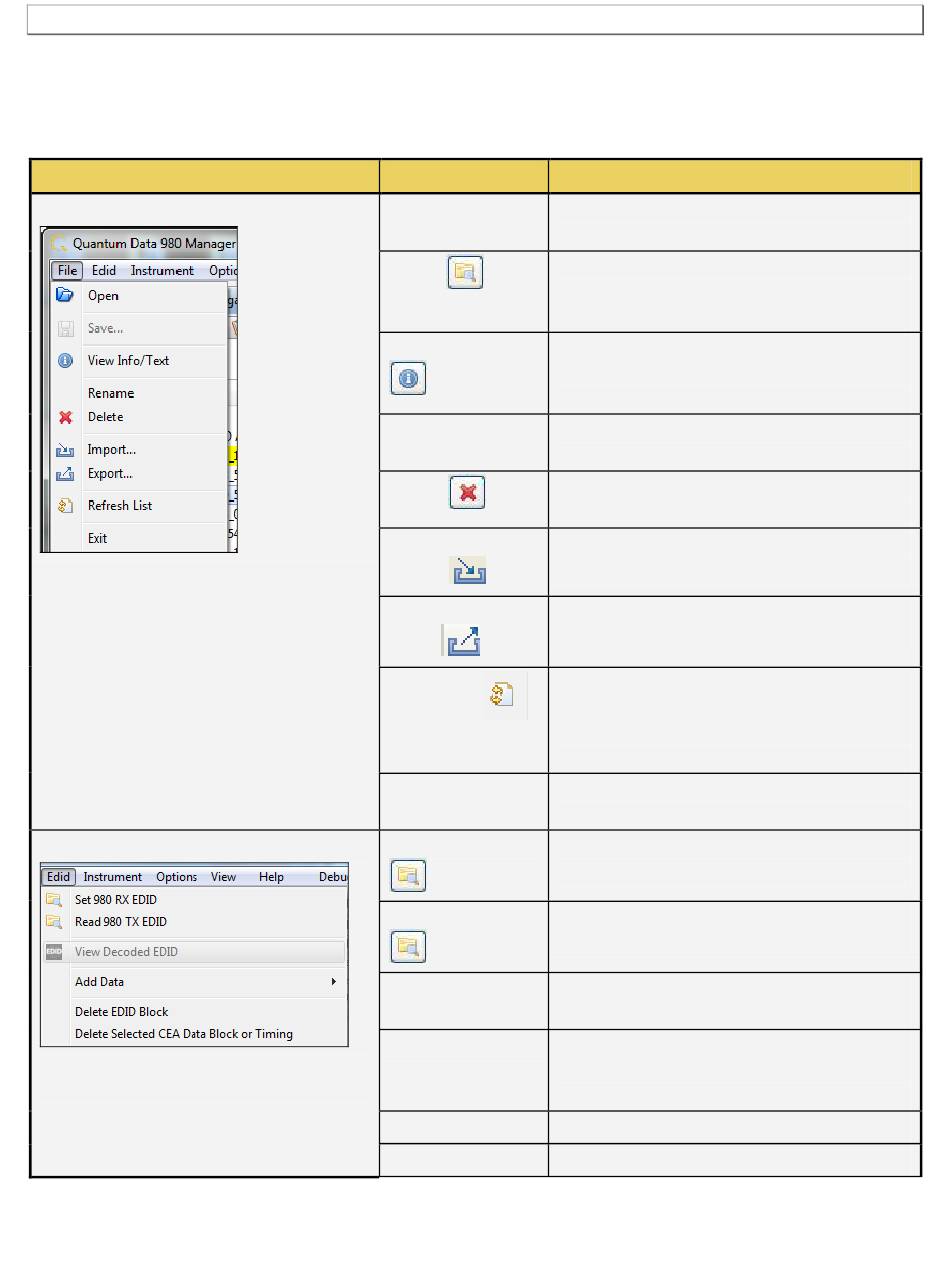

There are a series of top level menus on the 980 GUI Manager graphical interface. These are described in the
following image and table:
Menu
File
EDID
Note: This menu is context sensitive. Its
contents depend on whether the EDID
Editor Panel is open and being used.
Page 32
Selection Function
Open Opens a capture in the GUI. You must select
a capture for this option to be available.
Saves the EDID that you have created or
Save...
modified using the EDID Management Editor
to the host PC.
View Info/Text Enables you to view the information related to
a capture or EDID in the Navigator/Data
view.
Rename Enables you to rename a capture or EDID
file.
Enables you to delete a capture or EDID file
Delete
from the 980 Manager application.
Import Capture Enables you to import a capture file that
resides on the 980 Manager host.
Data...
Export Capture Enables you to export a capture file that
resides on the 980 Manager host PC.
Data...
Enables you to refreshes the list of captures
to remove captures that you have marked for
Refresh List
deletion. Also resets the list to the default
unexploded view.
Exit Enables you to exit out of the 980 Manager
application.
Set 980 RX EDID Configures the 980 Rx port with the specified
EDID.
Read 980 TX EDID Loads an EDID from the HDMI sink device
connected to the 980 Tx port.
View Decoded Enables you to view the human readable text
EDID of the selected EDID
Add Data Enables you to add an EDID data element
such as a CEA extension block or a Video or
Data block to the CEA extension block.
Delete EDID Block Deletes a selected EDID block.
Delete Selected Deletes a selected CEA data block.
