2.9.2 Setting the IP address of the 980 Protocol Analyzer
This procedure describes how to set the IP address of the 980 Protocol Analyzer. You can change the 980's IP
address through the 980's front panel touch screen display manually. You can also allow the network DHCP server
to assign an IP address. These procedures assume that you have powered up the 980 and that the embedded 980
GUI Manager has been launched and established a physical Ethernet connection.
To set the IP address of the 980 through the embedded 980 GUI Manager

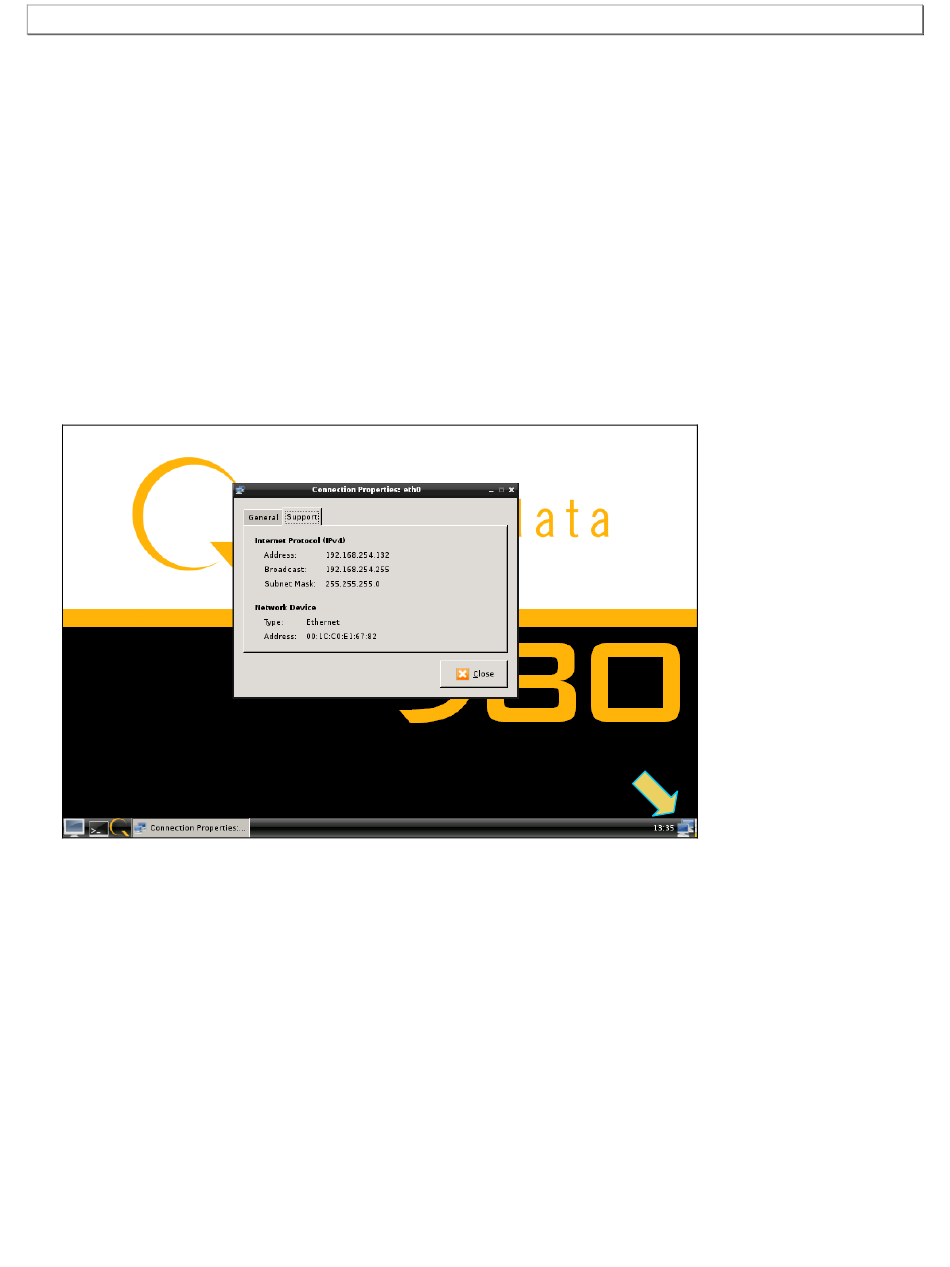

1. Touch select the terminal icon on the lower right corner of the 980 built-in display to access the Connection
Properties dialog box to view the current IP address. If the IP address of the 980 is compatible with IP address
of your PC and corporate network, no further action is required.
Note: If you do not see the icon in the lower right corner, press the Hide button in the Real Time Window.
2. Touch select the Instrument pulldown menu and select Configure.
