4.7.3. LW3 Terminal

ThiswindowisthesurfaceoftheLightwareProtocol3(LW3)treewith
a terminal window. Commands and specific parameters (which are
notavailableonthegraphicaluserinterfaceoftheLDC)canberun
andset.TheintroductionoftheLW3protocolandthemostimportant
commands can be found in the Programmers' Reference
Legend #terminal
1 LW3 Protocol Displaying the most important information
Help about LW3 protocol commands in a new
window.
2 Terminal Commands and responses with time and
Window date stamps are listed in this window. Sent
command starts with '>' character, received
response starts with '<' character. The content
of the window can be emptied by the Clear
button. If the Autoscroll option is ticked, the list
is scrolled automatically when a new line is
added.
3 Edit Mode The default appearance is the read-only mode.
If you want to modify the values or parameters,
ticktheoption.Youwillbepromptedtoconfirm
your selection.
4 Protocol Tree LW3 protocol tree; select an item to see its
content.
5 Node List The parameters and nodes of the selected item
in the protocol tree are shown.
ƒ Manual button: displaying the manual
(short description) of the node in a pop-up
window.
ƒ Set button: Saving the value/parameter
typed in the textbox.
ƒ Call button: Executing the method, e.g.
reloading the factory default settings.
6 Warning If this option is enabled, a warning window
Mode pops up when you enable the Edit mode.
7
Command Type the desired command and execute it by
Line pressing the Send button.
VINX-1x0-HDMI Extenders – User's Manual
1
section.
7
Appliedfirmwarepackage:v2.0.0b27 | LDCsoftware:v1.34.0b2
2 3

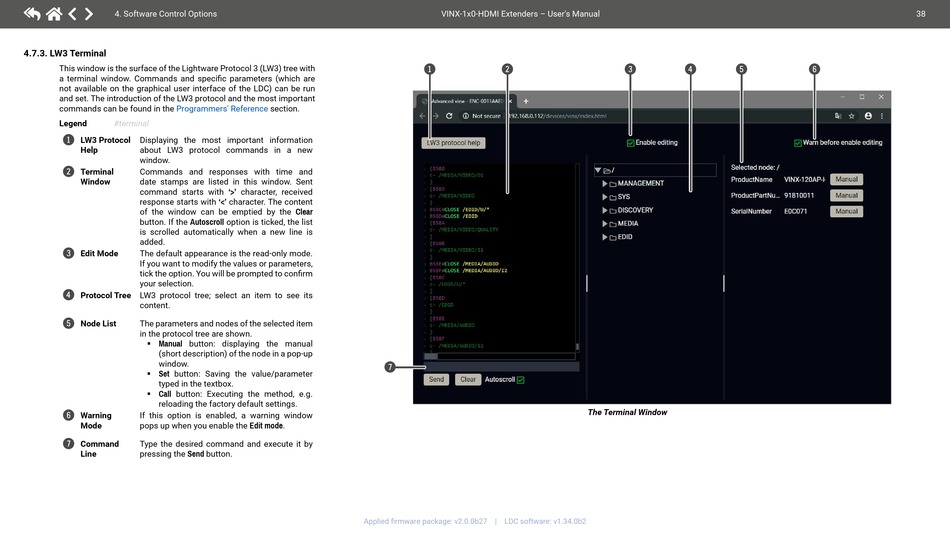

The Terminal Window
