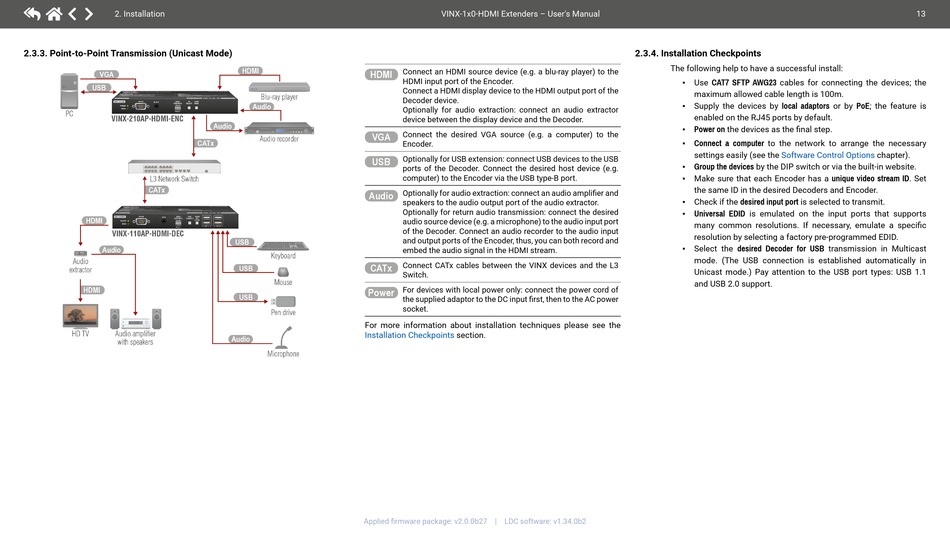

2.3.3. Point-to-Point Transmission (Unicast Mode)

VINX-1x0-HDMI Extenders – User's Manual
HDMI Connect an HDMI source device (e.g. a blu-ray player) to the
HDMI input port of the Encoder.
Connect a HDMI display device to the HDMI output port of the
Decoder device.
Optionally for audio extraction: connect an audio extractor
device between the display device and the Decoder.
Connect the desired VGA source (e.g. a computer) to the
VGA
Encoder.
Optionally for USB extension: connect USB devices to the USB
USB
ports of the Decoder. Connect the desired host device (e.g.
computer) to the Encoder via the USB type-B port.
Optionallyforaudioextraction:connectanaudioamplifierand
Audio
speakers to the audio output port of the audio extractor.
Optionally for return audio transmission: connect the desired
audio source device (e.g. a microphone) to the audio input port
of the Decoder. Connect an audio recorder to the audio input
and output ports of the Encoder, thus, you can both record and
embed the audio signal in the HDMI stream.
Connect CATx cables between the VINX devices and the L3
CATx
Switch.
Power For devices with local power only: connect the power cord of
thesuppliedadaptortotheDCinputfirst,thentotheACpower
socket.
For more information about installation techniques please see the

Installation Checkpoints

section.
Appliedfirmwarepackage:v2.0.0b27 | LDCsoftware:v1.34.0b2
2.3.4. Installation Checkpoints
The following help to have a successful install:
Use CAT7 SFTP AWG23 cables for connecting the devices; the
▪
maximum allowed cable length is 100m.
▪ Supply the devices by local adaptors or by PoE; the feature is
enabledontheRJ45portsbydefault.
▪
Power onthedevicesasthefinalstep.
▪ Connect a computer to the network to arrange the necessary
settings easily (see the Software Control Options
Group the devices by the DIP switch or via the built-in website.
▪
Make sure that each Encoder has a unique video stream ID. Set
▪
the same ID in the desired Decoders and Encoder.
▪ Check if the desired input port is selected to transmit.
Universal EDID is emulated on the input ports that supports
▪
many common resolutions. If necessary, emulate a specific
resolution by selecting a factory pre-programmed EDID.
Select the desired Decoder for USB transmission in Multicast
▪
mode. (The USB connection is established automatically in
Unicast mode.) Pay attention to the USB port types: USB 1.1
and USB 2.0 support.
13
chapter).
