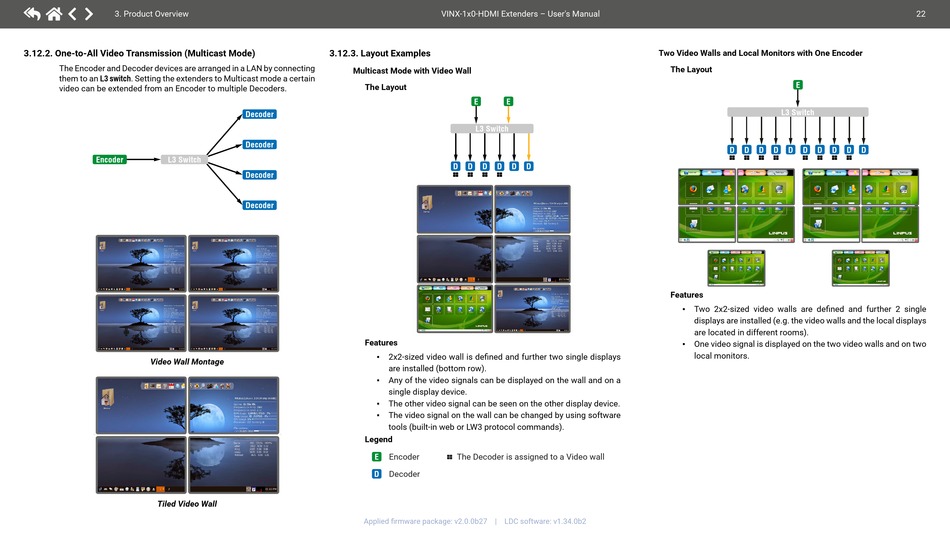

3.12.2. One-to-All Video Transmission (Multicast Mode)

TheEncoderandDecoderdevicesarearrangedinaLANbyconnecting
them to an L3 switch. Setting the extenders to Multicast mode a certain
video can be extended from an Encoder to multiple Decoders.
Encoder L3 Switch
Video Wall Montage
Tiled Video Wall

3.12.3. Layout Examples

Multicast Mode with Video Wall
The Layout
Decoder
Decoder
Decoder
Decoder
Features
2x2-sizedvideowallisdefinedandfurthertwosingledisplays
▪
are installed (bottom row).
▪ Any of the video signals can be displayed on the wall and on a
single display device.
The other video signal can be seen on the other display device.
▪
▪ The video signal on the wall can be changed by using software
tools(built-inweborLW3protocolcommands).
Legend
E Encoder
D Decoder
Appliedfirmwarepackage:v2.0.0b27 | LDCsoftware:v1.34.0b2
VINX-1x0-HDMI Extenders – User's Manual
E E
L3 Switch
D D D D D D
The Decoder is assigned to a Video wall
Two Video Walls and Local Monitors with One Encoder
The Layout
E
L3 Switch
D D D D D D D D
Features
▪ Two 2x2-sized video walls are defined and further 2 single
displays are installed (e.g. the video walls and the local displays
are located in different rooms).
▪ One video signal is displayed on the two video walls and on two
local monitors.
22
D D
