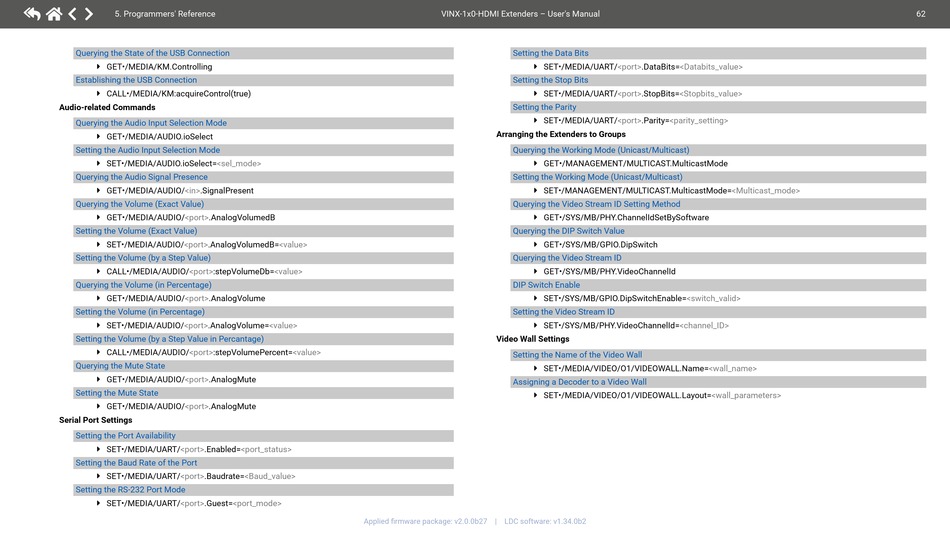

Lightware VINX-120AP-HDMI-ENC-DNT User Manual page 62

   
5.Programmers'Reference
QueryingtheStateoftheUSBConnection
ç GET•/MEDIA/KM.Controlling
Establishing the USB Connection
ç CALL•/MEDIA/KM:acquireControl(true)
Audio-related Commands
QueryingtheAudioInputSelectionMode
ç GET•/MEDIA/AUDIO.ioSelect
Setting the Audio Input Selection Mode
SET•/MEDIA/AUDIO.ioSelect=<sel_mode>
ç
QueryingtheAudioSignalPresence
ç GET•/MEDIA/AUDIO/<in>.SignalPresent
QueryingtheVolume(ExactValue)
ç GET•/MEDIA/AUDIO/<port>.AnalogVolumedB
Setting the Volume (Exact Value)
SET•/MEDIA/AUDIO/<port>.AnalogVolumedB=<value>
ç
Setting the Volume (by a Step Value)
CALL•/MEDIA/AUDIO/<port>:stepVolumeDb=<value>
ç
QueryingtheVolume(inPercentage)
ç GET•/MEDIA/AUDIO/<port>.AnalogVolume
Setting the Volume (in Percentage)
SET•/MEDIA/AUDIO/<port>.AnalogVolume=<value>
ç
Setting the Volume (by a Step Value in Percantage)
CALL•/MEDIA/AUDIO/<port>:stepVolumePercent=<value>
ç
QueryingtheMuteState
ç GET•/MEDIA/AUDIO/<port>.AnalogMute
Setting the Mute State
ç GET•/MEDIA/AUDIO/<port>.AnalogMute
Serial Port Settings
Setting the Port Availability
SET•/MEDIA/UART/<port>.Enabled=<port_status>
ç
Setting the Baud Rate of the Port
SET•/MEDIA/UART/<port>.Baudrate=<Baud_value>
ç
Setting the RS-232 Port Mode
SET•/MEDIA/UART/<port>.Guest=<port_mode>
ç
VINX-1x0-HDMI Extenders – User's Manual
Setting the Data Bits
ç
Setting the Stop Bits
ç
Setting the Parity
ç
Arranging the Extenders to Groups
QueryingtheWorkingMode(Unicast/Multicast)
ç GET•/MANAGEMENT/MULTICAST.MulticastMode
SettingtheWorkingMode(Unicast/Multicast)
ç
QueryingtheVideoStreamIDSettingMethod
ç GET•/SYS/MB/PHY.ChannelIdSetBySoftware
QueryingtheDIPSwitchValue
ç GET•/SYS/MB/GPIO.DipSwitch
QueryingtheVideoStreamID
ç GET•/SYS/MB/PHY.VideoChannelId
DIP Switch Enable
ç
Setting the Video Stream ID
ç
Video Wall Settings
SettingtheNameoftheVideoWall
ç
AssigningaDecodertoaVideoWall
ç
Appliedfirmwarepackage:v2.0.0b27 | LDCsoftware:v1.34.0b2
SET•/MEDIA/UART/<port>.DataBits=<Databits_value>
SET•/MEDIA/UART/<port>.StopBits=<Stopbits_value>
SET•/MEDIA/UART/<port>.Parity=<parity_setting>
SET•/MANAGEMENT/MULTICAST.MulticastMode=<Multicast_mode>
SET•/SYS/MB/GPIO.DipSwitchEnable=<switch_valid>
SET•/SYS/MB/PHY.VideoChannelId=<channel_ID>
SET•/MEDIA/VIDEO/O1/VIDEOWALL.Name=<wall_name>
SET•/MEDIA/VIDEO/O1/VIDEOWALL.Layout=<wall_parameters>
