4.SoftwareControlOptions

4.3.2. Establishing the Connection

LaunchtheLDCsoftware.TheEthernet tab consists of two lists:
Favorite Devices: You can add any Lightware device that is
▪
connected via Ethernet and no need to browse all the available
devices. Devices can be added by pressing the Add button or
marking the desired device by the
▪
All Devices:TheLightwaredevicesarelistedwhichareavailable
in the connected network.
Select the unit from the discovered Ethernet devices; double click on
the device or select it and click on the green Connect button.
Direct Connection by Known IP Address
Format: LightwareDeviceController -i <IP_address>:<port>
LightwareDeviceController -i 192.168.0.115:6107
Example:
TheLDCisconnectedtoadevicewiththeindicatedstaticIPaddress
directly; the Device Discovery window is not displayed.
Further Tools
The Tools menu contains the following options:
▪ Log Viewer:The tool can be used for reviewing log files which
have been saved previously.
Create EDID: ThistoolopenstheEasyEDIDCreatorwizardwhich
▪
can be used for creating unique EDIDs in a few simple steps.
Functionality is the same as the Easy EDID Creator.
Demo Mode: This is a virtual MX-FR17 matrix router with full
▪
functionalitybuiltintotheLDC.Functionsandoptionsarethe
sameasarealMX-FR17device.
The Terminal window is also available by pressing its button on the
bottom.
TIPS AND TRICKS:
Press the VINX drawing in the top left corner to
navigate back to the Device Discovery window.
symbol in the All Devices list.

Appliedfirmwarepackage:v2.0.0b27 | LDCsoftware:v1.34.0b2
VINX-1x0-HDMIExtenders–User'sManual

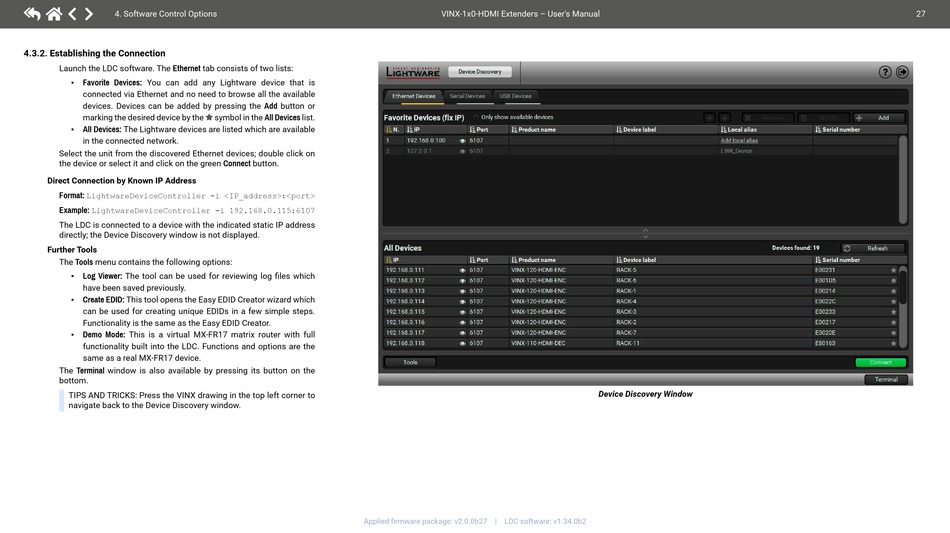

Device Discovery Window
27
