3. Product Overview

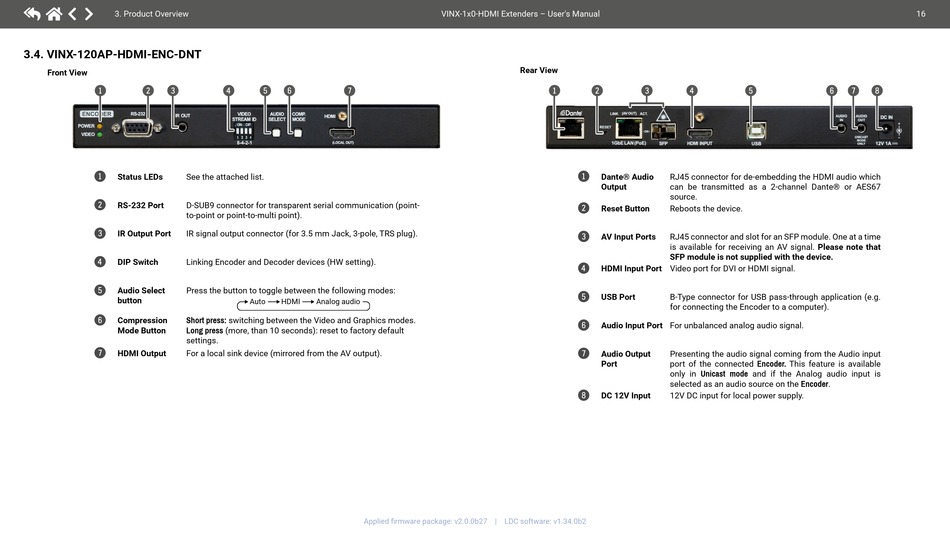

3.4. VINX-120AP-HDMI-ENC-DNT

Front View
1 2 3
1 Status LEDs See the attached list.
2 RS-232 Port D-SUB9 connector for transparent serial communication (point-
to-point or point-to-multi point).
3 IR Output Port IRsignaloutputconnector(for3.5mmJack,3-pole,TRSplug).
4 DIP Switch LinkingEncoderandDecoderdevices(HWsetting).
5 Audio Select Press the button to toggle between the following modes:
button
6 Compression Short press: switching between the Video and Graphics modes.
Mode Button Long press (more, than 10 seconds): reset to factory default
settings.
7 HDMI Output For a local sink device (mirrored from the AV output).
4 5 6 7
Auto HDMI Analog audio
Appliedfirmwarepackage:v2.0.0b27 | LDCsoftware:v1.34.0b2
VINX-1x0-HDMI Extenders – User's Manual
Rear View
1 2
1 Dante® Audio
Output
2 Reset Button
3
AV Input Ports
4 HDMI Input Port Video port for DVI or HDMI signal.
5
USB Port
6 Audio Input Port For unbalanced analog audio signal.
7
Audio Output
Port
8 DC 12V Input
3 4 5
RJ45connectorforde-embeddingtheHDMIaudiowhich
can be transmitted as a 2-channel Dante® or AES67
source.
Reboots the device.
RJ45connectorandslotforanSFPmodule.Oneatatime
is available for receiving an AV signal. Please note that
SFP module is not supplied with the device.
B-Type connector for USB pass-through application (e.g.
for connecting the Encoder to a computer).
Presenting the audio signal coming from the Audio input
port of the connected Encoder. This feature is available
only in Unicast mode and if the Analog audio input is
selected as an audio source on the Encoder.
12V DC input for local power supply.
16
6 7 8
