9. Appendix

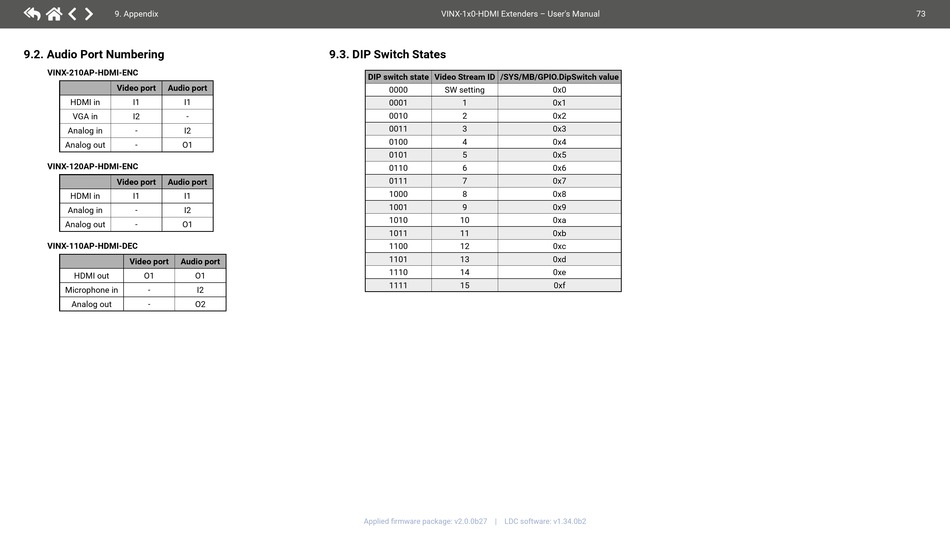

9.2. Audio Port Numbering

VINX-210AP-HDMI-ENC
Video port Audio port
HDMI in I1 I1
VGA in I2 -
Analog in - I2
Analog out - O1
VINX-120AP-HDMI-ENC
Video port Audio port
HDMI in I1 I1
Analog in - I2
Analog out - O1
VINX-110AP-HDMI-DEC
Video port Audio port
HDMI out O1 O1
Microphone in - I2
Analog out - O2
VINX-1x0-HDMIExtenders–User'sManual

9.3. DIP Switch States

DIP switch state Video Stream ID /SYS/MB/GPIO.DipSwitch value
0000 SWsetting
0001 1
0010 2
0011 3
0100 4
0101 5
0110 6
0111 7
1000 8
1001 9
1010 10
1011 11
1100 12
1101 13
1110 14
1111 15
Appliedfirmwarepackage:v2.0.0b27 | LDCsoftware:v1.34.0b2
0x0
0x1
0x2
0x3
0x4
0x5
0x6
0x7
0x8
0x9
0xa
0xb
0xc
0xd
0xe
0xf
