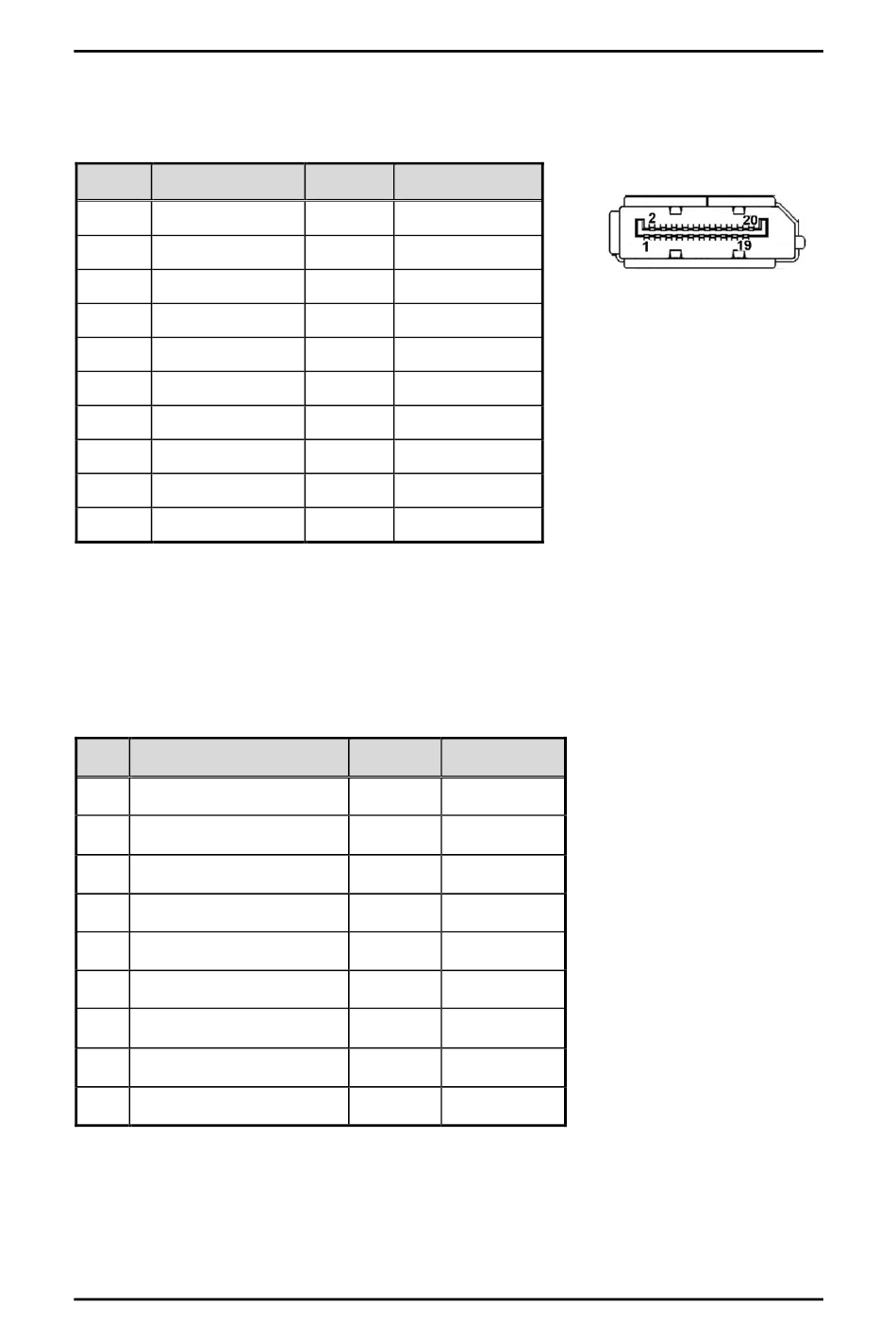

DisplayPort Connector (CN1,CN24,CN25)

eBOX671-521-FL supports three DisplayPort outputs, CN24 & CN25 are designed by MXM
optional. DisplayPort interface is also called DP port.
Pins
Signals
1
DPB_LANE0
2
GND
3
DPB_LANE0#
4
DPB_LANE1
5
GND
6
DPB_LANE1#
7
DPB_LANE2
8
GND
9
DPB_LANE2#
10
DPB_LANE3
3.3.4

Serial Port Connector (CN27,CN27)

The system has two serial ports. COM1~COM2 are RS-232/422/485 ports. Please refer to
Chapter 4 for the detail of BIOS setting.
※COM1~2 (CN27,CN28)
Pins
RS-232
1
DCD, Data Carrier Detect
2
RXD, Receive Data
3
TXD, Transmit Data
4
DTR, Data Terminal Ready
5
GND, Ground
6
DSR, Data Set Ready
7
RTS, Request To Send
8
CTS, Clear To Send
9
RI, Ring Indicator
30
Pins
Signals
11
GND
12
DPB_LANE3#
13
Detect Pin
14
GND
15
DPB_AUX
16
GND
17
DPB_AUX#
18
DPB_HPDE
19
GND
20
+3.3V
RS-422
RS-485
TX-
Data-
TX+
Data+
RX+
No use
RX-
No use
No use
No use
No use
No use
No use
No use
No use
No use
No use
No use
