  • Page 1 EBOX630-830 Fanless Embedded System User’s Manual...
  • Page 2 AXIOMTEK assumes no responsibility for any inaccuracies that may be contained in this document. AXIOMTEK makes no commitment to update or to keep current the information contained in this manual. AXIOMTEK reserves the right to make improvements to this document and/or product at any time and without notice.

  • Page 3: Safety Precautions

    Safety Precautions Before getting started, read the following important cautions. 1. The EBOX630-830 does not come equipped with an operating system. An operating system must be loaded first before installing any software into the computer. 2. Be sure to ground yourself to prevent static charge when installing the internal components.

  • Page 4: Classification

    Classification 1. Degree of production against electric shock: not classified 2. Degree of protection against the ingress of water: IPX0 3. Equipment not suitable for use in the presence of a flammable anesthetic mixture with air or with oxygen or nitrous oxide. 4.

  • Page 5: General Cleaning Tips

    General Cleaning Tips You may need the following precautions before you begin to clean the computer. When you clean any single part or component for the computer, please read and understand the details below fully. 1. When you need to clean the device, please rub it with a piece of dry cloth.
  • Page 6 particles, and other particles out of a computer can be one of the best methods of cleaning a computer. Over time these items can restrict the airflow in a computer and cause circuitry to corrode. Cotton swabs: Cotton swaps moistened with rubbing alcohol or water are excellent tools for wiping hard to reach areas in your keyboard, mouse, and other locations.

  • Page 7: Scrap Computer Recycling

    Scrap Computer Recycling If the computer equipments need the maintenance or are beyond repair, we strongly recommended that you should inform us as soon as possible for the suitable solution. For the computers that are no longer useful or no longer work well, please contact us for recycling and we will make the proper arrangement.
  • Page 8 Trademarks Acknowledgments AXIOMTEK is a trademark of AXIOMTEK Co., Ltd. IBM, PC/AT, PS/2, VGA are trademarks of International Business Machines Corporation. Intel and Pentium are trademarks of Intel Corporation. MS-DOS, Microsoft C and QuickBASIC are trademarks of Microsoft Corporation. VIA is a trademark of VIA Technologies, Inc.
  • Page 9 This page does not contain any information.

  • Page 10: Table Of Contents

    Table of Contents Disclaimers................ii Safety Precautions .............iii Classification ..............iv General Cleaning Tips............v Scrap Computer Recycling..........vii C h a p t e r 1 ..............1 Introduction ................1 1.1 General Description ..........1 1.2 Specifications ............2 1.2.1 Main CPU Board............2 1.2.2 I/O System..............2 1.2.3 System Specification..........3 1.3 Dimensions ...............4...
  • Page 11 3.8 Integrated Peripherals ...........31 3.9 Power Management Setup ........37 3.10 PnP/PCI Configuration Setup........41 3.11 PC Health Status ............43 3.12 Frequency/Voltage Control........45 3.13 Load Optimized Defaults ........46 3.14 Set Supervisor/User Password ......47 3.15 Save & Exit Setup...........49 3.16 Exit Without Saving ..........50 Table of Contents...

  • Page 13: Chapter 1

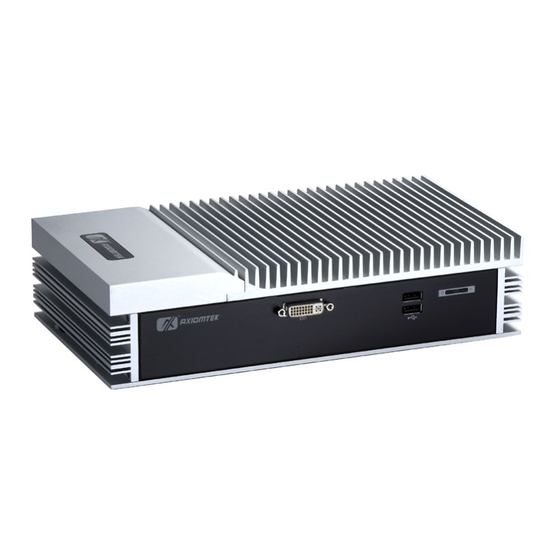

    I/O Outlets System Specification Utilities Supported Dimensions Package List General Description The EBOX630-830 is a fanless embedded system, and is equipped with low power consumption CPU, the ULV Intel® Celeron® M 423. EBOX630-830 supports Windows® Windows® embedded, and Linux. The EBOX630-830 is also designed with fanless solution and suitable for continuously running.

  • Page 14: Specifications

    EBOX630-830 User’s Manual Specifications 1.2.1 Main CPU Board ULV Intel Celeron M 423. CPU: Intel 945GME + ICH7M System Chipset: Phoenix-Award BIOS, 4Mbit with RPL/PXE LAN BIOS: Boot ROM, SmartView and Customer CMOS Backup. x 200-pin DDR2 SODIMM max. up to System Memory: 1 1.2.2...

  • Page 15: System Specification

    EBOX630-830 User’s Manual Ethernet: - Realtek RTL 8111B PCI-E Gigabit Ethernet 1.2.3 System Specification Disk Drive: Support 1 x 2.5” SATA HDD Power Supply: 60W AC-DC Adapter Power Input: 100~240VAC, 50/60Hz, Max. 4A Dimension: 280mm(W) x 67mm(H) x 150mm (D) Operation Temperature: 0℃...

  • Page 16: Dimensions

    EBOX630-830 User’s Manual Dimensions The following diagrams show the dimensions and outlines of EBOX630-830. Award BIOS Utility...

  • Page 17: I/O Outlets

    EBOX630-830 User’s Manual I/O Outlets The following figure shows the I/O locations of the EBOX630-830. 12 13 14 15 Power LED COM1 HDD LED DVI-I LAN 1 DVI-D (factory option) LAN 2 COM2 COM3 COM4 DC Jack Mic-In Switch Line-Out...

  • Page 18: Package List

    EBOX630-830 User’s Manual 1.5 Package List When you receive the EBOX630-830 there are following items in the package. If you can not find it, please contact AXIOMTEK distributors. 1. EBOX630-830 Unit x 1 2. Power Cord x 1 3. Power Adaptor x 1 4.

  • Page 19: Chapter 2

    It includes: HDD Installation The EBOX630-830 offers a convenient drive bay module for users to install HDD. The EBOX630-830 offers one 2.5” HDD drive for users to install. Please follow the steps: Step 1) Turn-off the EBOX630-830...
  • Page 20 EBOX630-830 User’s Manual Step 4) Remove the Back Cover Award BIOS Utility...
  • Page 21 EBOX630-830 User’s Manual Step 5) Prepare HDD Assembly Parts HDD Bracket x 1 2.5inch HDD (SATA I/F) Screws x 4 Award BIOS Utility...
  • Page 22 EBOX630-830 User’s Manual Step 6) Assembly the HDD with HDD bracket Step 7) Assembly the HDD assembly into eBOX630 Step 8) Plug-in the SATA & Power Cable to HDD Award BIOS Utility...
  • Page 23 EBOX630-830 User’s Manual Step 9) Assembly back the Back Cover. Award BIOS Utility...

  • Page 24: Install Memory Module

    EBOX630-830 User’s Manual 2.2 Install Memory Module Step 1) Turn-off the EBOX630-830 Step 2) Un-plug the AC power-cord Step 3) Release the 8 screws which are marked on the following picture. Award BIOS Utility...
  • Page 25 EBOX630-830 User’s Manual Step 4) Remove the Back Cover Award BIOS Utility...
  • Page 26 EBOX630-830 User’s Manual Step 5) Install the Memory Module. Award BIOS Utility...
  • Page 27 EBOX630-830 User’s Manual Step 6) Install the Back Cover. Award BIOS Utility...

  • Page 28: Chapter 3

    EBOX630-830 User’s Manual C h a p t e r 3 BIOS Setting The Phoenix-Award BIOS provides users with a built-in Setup program to modify basic system configuration. All configured parameters are stored in a battery-backed-up RAM (CMOS RAM) to save the Setup information whenever the power is turned off.

  • Page 29: Control Keys

    EBOX630-830 User’s Manual Control Keys Move cursor to the previous item Up arrow Move cursor to the next item Down arrow Move cursor to the item on the left hand Left arrow Move to the item in the right hand...

  • Page 30: The Main Menu

    EBOX630-830 User’s Manual The Main Menu Once you enter the Award BIOS CMOS Setup Utility, the Main Menu appears on the screen. In the Main Menu, there are several Setup functions and a couple of Exit options for your selection. Use arrow keys to select the Setup Page you intend to configure then press <Enter>...

  • Page 31: Standard Cmos Setup Menu

    EBOX630-830 User’s Manual 3.5 Standard CMOS Setup Menu The Standard CMOS Setup Menu displays basic information about your system. Use arrow keys to highlight each item, and use <PgUp> or <PgDn> key to select the value you want in each item.
  • Page 32 EBOX630-830 User’s Manual This item shows current time of your system with the format <hour> <minute> <second>. The time is calculated based on the 24-hour military-time clock. For example, 1 p.m. is 13:00:00. Award BIOS Utility...
  • Page 33 EBOX630-830 User’s Manual IDE Channel 0 Master/IDE Channel 0 Slave/IDE Channel 1 Master/IDE Channel 1 Slave These items identify the types of each IDE channel installed in the computer. There are 45 predefined types (Type 1 to Type 45) and 2 user’s definable types (Type User) for Enhanced IDE BIOS.
  • Page 34 EBOX630-830 User’s Manual 720K, 3.5 inch double-sided drive; 720Kb Mini ITXcity 1.44M, 3.5 inch double-sided drive; 1.44MB Mini ITXcity 2.88M, 3.5 inch double-sided drive; 2.88MB Mini ITXcity Award BIOS Utility...
  • Page 35 EBOX630-830 User’s Manual Halt On This item determines whether the system will halt or not, if an error is detected while powering up. The system booting will halt on any errors detected. No errors (default) Whenever BIOS detects a non-fatal error, the All errors system will stop and you will be prompted.

  • Page 36: Advanced Bios Features

    EBOX630-830 User’s Manual Advanced BIOS Features This section allows you to configure and improve your system, to set up some system features according to your preference. Award BIOS Utility...
  • Page 37 EBOX630-830 User’s Manual Hard Disk Boot Priority Scroll to this item and press <Enter> to view the sub menu to decide the disk boot priority. Press <Esc> to return to the Advanced BIOS Features page. Virus Warning This option flashes on the screen. During and after the system boot up, any attempt to write to the boot sector or partition table of the hard disk drive will halt the system with the following message.
  • Page 38 EBOX630-830 User’s Manual It automatically activates while the Enabled system boots up and a warning message appears for an attempt to access the boot sector or hard disk partition table. No warning message will appear for Disabled attempts to access the boot sector or hard disk partition table.
  • Page 39 EBOX630-830 User’s Manual This item allows users to enable or disable the boot device not listed in the First/Second/Third boot devices option above. The default setting is “Enabled”. Boot Up NumLock Status Set the the Num Lock status when the system is powered on.
  • Page 40 EBOX630-830 User’s Manual This option defines how many milliseconds must elapse before a held-down key begins generating repeat characters. The default value is “250”. 250 msec 500 msec 750 msec 1000 1000 msec Security Option This item allows you to limit access to the system and Setup, or just to Setup.

  • Page 41: Advanced Chipset Features

    EBOX630-830 User’s Manual 3.7 Advanced Chipset Features This section contains completely optimized chipset’s features on the board that you are strongly recommended to leave all items on this page at their default values unless you are very familiar with the technical specifications of your system hardware.
  • Page 42 EBOX630-830 User’s Manual installed DRAM. Do not change these values unless you have to change the specifications of the installed DRAM or CPU. DRAM RAS# to CAS# Delay When DRAM is refreshed, both rows and columns are addressed separately. This field lets you insert a timing delay between the CAS and RAS strobe signals, used when DRAM is written to, read from, or refreshed.

  • Page 43: Integrated Peripherals

    EBOX630-830 User’s Manual PEG Force X1 Use this item to select PCI Express X1 forcedly. On-Chip Frame Buffer Size Use this item to set the VGA frame buffer size. DVMT Mode DVMT (Dynamic Video Memory Technology) helps you select the video mode.
  • Page 44 EBOX630-830 User’s Manual Award BIOS Utility...
  • Page 45 EBOX630-830 User’s Manual OnChip IDE Device Scroll to this item and press <Enter> to view the sub menu OnChip IDE Device. IDE HDD Block Mode Block mode is also called block transfer, multiple commands, or multiple sector read/write. If your IDE hard drive supports...
  • Page 46 EBOX630-830 User’s Manual automatically remove the IDE Primary Master/ Slave PIO and/or IDE Secondary Master/Slave PIO items on the menu. IDE Primary/Secondary Master/Slave PIO The four IDE PIO (Programmed Input/Output) fields let you set a PIO mode (0-4) for each of the four IDE devices that the onboard IDE interface supports.
  • Page 47 EBOX630-830 User’s Manual Onboard Device Scroll to this item and press <Enter> to view the sub menu Onboard Device. USB Controller Enable this item if you are using the USB in the system. You should disable this item if a higher-level controller is added.
  • Page 48 EBOX630-830 User’s Manual Super IO Device Scroll to this item and press <Enter> to view the sub menu Super IO Device. Onboard FDC Controller Select Enabled, if your system has a floppy disk controller (FDC) installed on the system board and you want to use it.

  • Page 49: Power Management Setup

    EBOX630-830 User’s Manual ECP Mode Use DMA Select a DMA channel for the parallel port while using the ECP mode. Press <Esc> to return to the Integrated Peripherals page, and press it again to the Main Menu. 3.9 Power Management Setup The Power Management Setup allows you to save energy of your system effectively.
  • Page 50 EBOX630-830 User’s Manual -- (2) -- ACPI Function This item allows you to enable/disable the Advanced Configuration and Power Management (ACPI). The function is always “Enabled”. ACPI Suspend Type This item specifies the power saving modes for ACPI function. If...
  • Page 51 EBOX630-830 User’s Manual save energy. The information stored in memory will be used to restore the system when a “wake up” event occurs. Power Management This option allows you to select the type of power Management. Options: APM, ACPI. Video Off Method This setting determines the manner in which the monitor is blanked.
  • Page 52 EBOX630-830 User’s Manual Soft-Off by PWR-BTTN This option only works with systems using an ATX power supply. It also allows users to define which type of soft power OFF sequence the system will follow. The default value is “Instant-Off”. This option follows the conventional manner of system performance when turning the power to OFF.

  • Page 53: Pnp/Pci Configuration Setup

    EBOX630-830 User’s Manual This item can be used to detect PCI device activities; if no activity, the system will enter the sleep mode. PWRON After PWR-Fail This item enables your computer to automatically restart or return to its operating status.
  • Page 54 EBOX630-830 User’s Manual serious conflict that the operating system can not boot. Options: Enabled, Disabled. Resources Controlled By The Award Plug and Play BIOS can automatically configure all boot and Plug and Play-compatible devices. If you select Auto, all interrupt request (IRQ), DMA assignment, and Used DMA fields disappear, as the BIOS automatically assigns them.

  • Page 55: Pc Health Status

    EBOX630-830 User’s Manual 3.11 PC Health Status This section supports hardware monitering that lets you monitor those parameters for critical voltages, temperatures and fan speed of the board. Shutdown Temperature It helps you set the maximum temperature they system can reach before...
  • Page 56 EBOX630-830 User’s Manual Press <Esc> to return to the Main Menu page. Award BIOS Utility...

  • Page 57: Frequency/Voltage Control

    EBOX630-830 User’s Manual 3.12 Frequency/Voltage Control This section is to control the CPU frequency and Supply Voltage, DIMM OverVoltage and AGP voltage. Auto Detect PCI Clk The enabled item can automatically disable the clock source for a PCI slot without a module, to reduce EMI (ElectroMagnetic Interference).

  • Page 58: Load Optimized Defaults

    EBOX630-830 User’s Manual 3.13 Load Optimized Defaults This option allows you to load your system configuration with default values. These default settings are optimized to enable high performance features. To load CMOS SRAM with SETUP default values, please enter “Y”. If not, please enter “N”.

  • Page 59: Set Supervisor/User Password

    EBOX630-830 User’s Manual 3.14 Set Supervisor/User Password You can set a supervisor or user password, or both of them. The differences between them are: Supervisor password: You can enter and change the options on the setup menu. User password: You can just enter, but have no right to change the options on the setup menu.
  • Page 60 EBOX630-830 User’s Manual Additionally, when a password is enabled, you can also require the BIOS to request a password every time the system reboots. This would prevent unauthorized use of your computer. You decide when the password is required for the BIOS Features Setup Menu and its Security option.

  • Page 61: Save & Exit Setup

    EBOX630-830 User’s Manual 3.15 Save & Exit Setup This section allows you to determine whether or not to accept your modifications. Type “Y” to quit the setup utility and save all changes into the CMOS memory. Type “N” to bring you back to the Setup utility.

  • Page 62: Exit Without Saving

    EBOX630-830 User’s Manual 3.16 Exit Without Saving Select this option to exit the Setup utility without saving changes you have made in this session. Type “Y”, and it will quit the Setup utility without saving your modifications. Type “N” to return to the Setup utility.
  • Page 63 EBOX630-830 User’s Manual...
