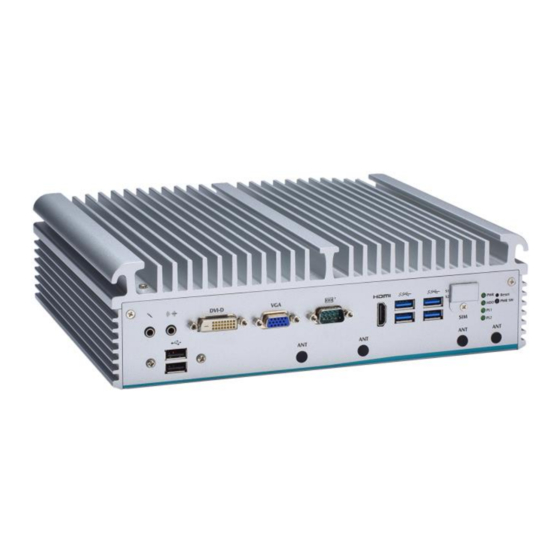

eBOX671-517-FL Series
Embedded System
User's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the eBOX671-517-FL Series and is the answer not in the manual?

Questions and answers

Related Manuals for AXIOMTEK eBOX671-517-FL Series

Summary of Contents for AXIOMTEK eBOX671-517-FL Series

  • Page 1 Series Embedded System User’s Manual...

  • Page 2: Disclaimers

    Axiomtek does not make any commitment to update any information in this manual. Axiomtek reserves the right to change or revise this document and/or product at any time without notice. No part of this document may be reproduced, stored in a retrieval system, or transmitted in any forms or by any means, electronic, mechanical, photocopying, recording, among others, without prior written permissions of Axiomtek Co., Ltd.

  • Page 3: Safety Precautions

    Safety Precautions Before getting started, please read the following important safety precautions. The eBOX671-517-FL does not come with an operating system which must be loaded first before installation of any software into the computer. Be sure to ground yourself to prevent static charge when installing any internal components.

  • Page 4: Classifications

    Classifications Degree of production against electric shock: not classified Degree of protection against ingress of water: IP40 Equipment not suitable for use in the presence of a flammable anesthetic mixture with air, oxygen or nitrous oxide. Mode of operation: Continuous...

  • Page 5: General Cleaning Tips

    General Cleaning Tips Please keep the following precautions in mind while understanding the details fully before and during any cleaning of the computer and any components within. A piece of dry cloth is ideal to clean the device. Be cautious of any tiny removable components when using a vacuum cleaner to absorb dirt on the floor.

  • Page 6: Scrap Computer Recycling

    Scrap Computer Recycling Please inform the nearest Axiomtek distributor as soon as possible for suitable solutions in case computers require maintenance or repair; or for recycling in case computers are out of order. Trademarks Acknowledgments Axiomtek is a trademark of Axiomtek Co., Ltd.

  • Page 7: Table Of Contents

    Table of Contents Disclaimers ......................ii Safety Precautions ....................iii Classifications ....................... iv General Cleaning Tips ................... v Scrap Computer Recycling ................... vi SECTION 1 INTRODUCTION ................ 1 General Descriptions ................. 1 System Specifications ............... 2 1.2.1 CPU ........................2 1.2.2 I/O System ......................
  • Page 8 3.2.16 Full-Size PCI Express Mini Card Slot (CN10 & CN12) ........ 29 3.2.17 Half-Size Mini Card Slot (CN15 & CN16) ............31 SECTION 4 BIOS SETUP UTILITY .............. 33 Starting ..................... 33 Navigation Keys ................33 Main Menu ..................34 Advanced Menu ................

  • Page 9: Section 1 Introduction

    Series user’s Manual SECTION 1 INTRODUCTION This section contains general information and detailed specifications of the eBOX671-517- FL.Section 1 consist of the following sub-sections:  General Descriptions  System Specifications  Dimensions  I/O Outlets  Packing List ...

  • Page 10: System Specifications

    Series user’s Manual Features ® ® Core™ i7/i5/i3 & Celeron  LGA1151 socket 7 generation Intel ® -35/65 watt processor (Kaby Lake / Skylake) with Intel Q170  Supports 8 channels gigabit PoE ports, IEEE802.3 af compliance  Supports Jumbo Frame (9.5k), W oL, PXE Remote Boot, Teaming ...

  • Page 11: I/O System

    Series user’s Manual 1.2.2 I/O System  Display  1 x HDMI (Resolution:4K/2K@60Hz)  1 x DVI-D (Resolution:4K/2K@60Hz)  1 x VGA (Resolution: 1920X1200@60Hz) 【Note】: If users use HDMI /DVI monitor to install graphic driver, please press "win + P"...

  • Page 12: System Specifications

    Series user’s Manual 1.2.3 System Specifications  Watchdog Timer  1~255 seconds or minutes; up to 255 levels.  Power Supply  24VDC input by terminal block connector  Operation Temperature  35W Tj=100°C CPU: -40°C to +70°C (-40°F to +158°F) with W.T. SSD & DRAM ...

  • Page 13: Dimensions

    Series user’s Manual 1.3 Dimensions The following diagrams show dimensions and outlines of the eBOX671-517-FL. 1.3.1 System Dimensions Introduction...

  • Page 14: Wall-Mount Bracket Dimensions

    Series user’s Manual 1.3.2 Wall-mount Bracket Dimensions Introduction...

  • Page 15: I/O Outlets

    Series user’s Manual 1.4 I/O Outlets The following figures show I/O outlets on the eBOX671-517-FL. Front View Rear View Introduction...

  • Page 16: Packing List

    Fanless embedded system with LGA1151 socket 7th/6th gen Intel® Core™ i7/i5/i3 & Celeron® processors, Intel® Q170, eBOX671-517-FL-DC VGA, DVI-D, HDMI, 8-CH PoE, 6 USB and 24 VDC Please contact Axiomtek’s distributors immediately in case any abovementioned items are missing. Introduction...

  • Page 17: Section 2 Hardware Installation

    Series user’s Manual SECTION 2 HARDWARE INSTALLATION The eBOX671-517-FL is convenient for various hardware configurations, such as 35/65W CPU, DRAM, HDD (Hard Disk Drive), SSD (Solid State Drive) and PCI Express Mini card modules. Section 2 contains guidelines for hardware installation.
  • Page 18 Series user’s Manual Step 4 CPU installation steps:  Lift processor package from shipping media by grasping the substrate edges.  Scan the processor package gold pads for any presence of foreign material.  Locate connection 1 indicator on the processor which aligns with connection 1 indicator chamfer on the socket, and notice processor keying features that line up with posts along socket walls.
  • Page 19 Series user’s Manual Step 5 Align pins of the CPU with pin holes of the socket. Be careful of the CPU’s orientation that user’s need to align the arrow mark on the CPU with the arrow key on the socket.

  • Page 20: Installation Of 2.5" Sata Device

    Series user’s Manual 2.2 Installation of 2.5" SATA Device Step 1 Turn off the system and unplug the power cord. Step 2 Turn the system upside down to locate seven screws at the bottom and then loosen all screws.
  • Page 21 Series user’s Manual Step 5 Assemble the SSD/HDD with the four HDD mounting screws. Make sure the PCB side of the SSD/HDD will be facing the bottom cover and connected the SATA power cable. Step 6 Put the bottom cover and fasten all the screws back onto the system.

  • Page 22: Installation Of So-Dimm

    Series user’s Manual 2.3 Installation of SO-DIMM Step 1 Turn off the system and unplug the power cord. Step 2 Loosen four screws to remove top cover. Step 3 Located the dual SO-DIMM sockets on main board. Step 4 Locate the memory module, insert a gold colored contact into the socket and push the module two end latches till locked and put the top DRAM thermal pad from accessory pack onto the top of DRAM.

  • Page 23: Installation Of Mini Pcie Module (Full-Size)

    Series user’s Manual 2.4 Installation of Mini PCIe Module (Full-size) Step 1 Turn off the system and unplug the power cord. Step 2 Turn the system upside down to locate screws at the bottom, and then loosen all screws.
  • Page 24 Series user’s Manual ※ Loosen the SIM cover screws and insert the SIM card. 【Note】 The system provides two PCIe slots for SIM card installation. Pay attention to the orientation when inserting a SIM card: The SIM card’s contacts must face downward when the card is being inserted into the SIM1 slot;...

  • Page 25: Installation Of Flexible I/O Modules

    Series user’s Manual 2.5 Installation of Flexible I/O Modules The eBOX671-517 provides an optional window for customer add flexible I/O modules, according to different modules , please refer to quick manual -1CH LAN Module (RJ45*1) -32CH DIO Module (DB32*1) *...
  • Page 26 Series user’s Manual Step 4 Insert the mini PCIe I/O card. Step 5 Assemble I/O connector with bracket and fix this I/O bracket into the Flexible I/O Window Step 6 Put the bottom cover and fasten two screws back onto the system.

  • Page 27: Section 3 Jumper & Connector Settings

    Series user’s Manual SECTION 3 JUMPER & CONNECTOR SETTINGS Proper jumper settings configure the eBOX671-517-FL to meet various application needs. Hereby all jumpers settings along with their default settings are listed for devices onboard. 3.1 Locations of Jumpers & Connectors SBC87517 Top View Jumper &...
  • Page 28 Series user’s Manual SBC87517 Bottom View 【Note】 It is strongly recommended that any unmentioned jumper settings should not be modified without instructions by Axiomtek FAEs. Any modifications without instructions might cause system failure. Jumper & Connector Settings...

  • Page 29: Summary Of Jumper Settings

    Series user’s Manual 3.2 Summary of Jumper Settings Proper DIP switch settings configure the eBOX671-517-FL to meet various application purposes. Hereby all jumper settings along with their default settings are listed for devices onboard. Descriptions Settings For CN15 mSATA mode(Optional)

  • Page 30: Connectors

    Series user’s Manual 3.3 Connectors Please refer to pin assignments below: External Connectors Sections DC-in Phoenix Power Connector 3.3.1 HDMI Connector 3.3.2 DVI-D Connector 3.3.3 3.3.4 Serial Port Connector 3.3.5 Ethernet Connector 3.3.6 USB 3.0 Connector 3.3.7 USB 2.0 Connector 3.3.8...

  • Page 31: Hdmi Connector

    Series user’s Manual 3.3.2 HDMI Connector The HDMI (High-Definition Multimedia Interface) is a compact digital interface which is capable of transmitting high-definition video and high-resolution audio over a single cable. Pins Signals Pins Signals HDMI OUT_DATA2+ HDMI OUT Clock- HDMI OUT_DATA2- N.C.

  • Page 32: Dvi-D

    Series user’s Manual 3.3.3 DVI-D Pins Signals Pins Signals Pins Signals TMDS Data 2- TMDS Data 1- TMDS Data 0- TMDS Data 2+ TMDS Data 1+ TMDS Data 0+ No use No use DVI_SPD_Clock TMDS Clock+ DVI_SPD_Data No use...

  • Page 33: Serial Port Connector(Com1~Com2)

    Series user’s Manual 3.3.5 Serial Port Connector(COM1~COM2) The system has four serial ports. COM1~COM2 are RS-232/422/485 ports. Please refer to Chapter 4 for detailed BIOS settings. Pins RS-232 RS-422 RS-485 Data- DCD, Data carrier detect Data+ RXD, Receive data...

  • Page 34: Usb 3.0 Connector

    Series user’s Manual 3.3.7 USB 3.0 Connector The Universal Serial Bus connectors are compliant with USB 3.0 (5 GB/s), ideal for connecting USB peripherals such as scanners, cameras and other USB devices. Pins Signal USB Port 0 Pins Signal USB Port 1...

  • Page 35: Audio Connector

    Series user’s Manual 3.3.9 Audio Connector These two audio jacks ideal are for Audio Mic-In and Audio Line-out. Pins Signals Microphone In Line Out 3.3.10 Isolated Digital I/O The eBOX671-517-FL supports an isolated 6-in/2-out Digital I/O (DIO) Pins Signals...

  • Page 36: Sata Connector (Sata 1~2)

    Series user’s Manual 3.3.13 SATA Connector (SATA 1~2) These Serial Advanced Technology Attachment (Serial ATA or SATA) connectors are for high-speed SATA interfaces. They are computer bus interfaces for connecting to devices such as hard disk drives. This board has two SATA 3.0 ports with 6Gb/s performance.

  • Page 37: Full-Size Pci Express Mini Card Slot (Cn10 & Cn12)

    Series user’s Manual 3.3.16 Full-Size PCI Express Mini Card Slot (CN10 & CN12) The eBOX671-517-FL supports dual full-size PCI-Express Mini Card slots.CN10 and CN12 apply to either PCI-Express or USB 2.0 signals, and comply with PCI-Express Mini Card Spec.
  • Page 38 Series user’s Manual CN12 Pins Signals Pins Signals W AKE# +3.3VSB No use No use +1.5V No use SIM S1_PW R SIM S1_I/O REFCLK- SIM S1_CLK REFCLK+ SIM S1_RST SIM S1_VPP No use No use W _DISABLE# PERST# +3.3VSB...

  • Page 39: Half-Size Mini Card Slot (Cn15 & Cn16)

    Series user’s Manual 3.3.17 Half-Size Mini Card Slot (CN15 & CN16) CN15 applies to PCI-Express and SATA (mSATA) signals and complies with PCI-Express Mini Card Spec. V1.2. Thus, users can install an mSATA card into this slot. Please refer to chapter 3.2 DIP Switch Mode.
  • Page 40 Series user’s Manual CN16 Pins Signals Pins Signals W AKE# +3.3VSB No use No use +1.5V No use No use No use No use No use No use No use No use No use No use W _DISABLE# PERST# No use +3.3VSB...

  • Page 41: Section 4 Bios Setup Utility

    Series user’s Manual SECTION 4 BIOS SETUP UTILITY This section provides users with detailed descriptions in terms of how to set up basic system configurations through the BIOS setup utility. 4.1 Starting To enter the setup screens, follow the steps below: Turn on the computer and press the <Del>...

  • Page 42: Main Menu

    Series user’s Manual 4.3 Main Menu The Main Menu screen is the first screen users see when entering the setup utility. Users can always return to the Main setup screen by selecting the Main tab. System Time/Date can be set up as described below.

  • Page 43: Advanced Menu

    Series user’s Manual 4.4 Advanced Menu The Advanced menu also allows users to set configuration of the CPU and other system devices. Users can select any items in the left frame of the screen to go to sub menus: ►...
  • Page 44 Series user’s Manual ACPI Settings Use this screen to select options for the ACPI configuration, and change the value of the selected option. A description of the selected item appears on the right side of the screen. ACPI Sleep State When the sleep button is pressed, the system will be in the ACPI sleep state.
  • Page 45 Series user’s Manual CPU Configurations This screen shows the CPU version and its detailed information. Intel Virtualization Technology It allows a hardware platform to run multiple operating systems separately and simultaneously, enabling one system to virtually function as several systems.
  • Page 46 Series user’s Manual NCT6106D Super IO Configurations Use this screen to select options for the NCT6106D Super IO Configurations, and change the value of the selected option. A description of the selected item appears on the right side of the screen.
  • Page 47 Series user’s Manual BIOS Setup Utility...
  • Page 48 Series user’s Manual NCT6106D HW Monitor This screen displays the temperature of system and CPU and system voltages (VCORE, +3.3V, +12V and +5V). BIOS Setup Utility...
  • Page 49 Series user’s Manual SATA Configurations In this Configuration menu, you can see the currently installed hardware in the SATA ports. During system boot up, the BIOS automatically detects the presence of SATA devices. SATA Mode Selection AHCI (Advanced Host Controller Interface) mode is how SATA controller(s) operate.
  • Page 50 Series user’s Manual PCH-FW Configuration This screen shows ME Firmware information. BIOS Setup Utility...
  • Page 51 Series user’s Manual USB Configurations USB Devices Display all detected USB devices. BIOS Setup Utility...
  • Page 52 BIOS flash utility is a tool for flash BIOS on setup menu. Follow the step to flash BIOS. Create a folder and rename it to Axiomtek on the root of USB storage (Ex: X:\Axiomtek) Copy the BIOS file to the Axiomtek folder (Ex: X:\Axiomtek\SBC87517X.005)
  • Page 53 Series user’s Manual BIOS Flash Utility BIOS Setup Utility...
  • Page 54 Series user’s Manual NCT6106D DIO Configurations Use this screen to display DIO polarity and level. BIOS Setup Utility...
  • Page 55 Series user’s Manual PoE Configurations Use this screen to select options for the PoE configurations, eBOX671-517-FL supports 8-CH PoE, users can base on this screen to adjust their PoE setting. The default PoE power budget is 90W. A description of the selected item appears on the right side of the screen. For items marked with , please press <Enter>...
  • Page 56 Series user’s Manual PoE Port 1 ~ 8 Use this screen to enable or disable 8-CH PoE ports, users can adjust each PoE ports. BIOS Setup Utility...

  • Page 57: Chipset Menu

    Series user’s Manual 4.5 Chipset Menu The Chipset menu allows users to change the advanced chipset settings. Users can select any of the items in the left frame of the screen to go to the sub menus: ► System Agent (SA) Configurations For items marked with “”, please press <Enter>...
  • Page 58 Series user’s Manual System Agent (SA) Configurations Graphics Configuration Use this item to configure internal graphics controller. Memory Configuration Use this item to refer to the information related to system memory. BIOS Setup Utility...
  • Page 59 Series user’s Manual Graphic Configurations Primary IGFX Boot Display Select the video device which will be activated during POST (Power-On Self-Test). The default is HDMI (ONBOARD).The image above shows option list in Primary IGFX Boot Display when no I/O board is installed.
  • Page 60 Series user’s Manual Memory Configurations This screen shows the system memory information. BIOS Setup Utility...
  • Page 61 Series user’s Manual Security Menu Administrator Password This item indicates whether an administrator password has been set (installed or uninstalled). User Password This item indicates whether a user password has been set (installed or uninstalled). BIOS Setup Utility...

  • Page 62: Boot Menu

    Series user’s Manual 4.6 Boot Menu The Boot menu allows users to change boot options of the system. Setup Prompt Timeout Use this item to set up number of seconds to wait for setup activation key where 65535(0xFFFF) means indefinite waiting.

  • Page 63: Save & Exit Menu

    Series user’s Manual 4.7 Save & Exit Menu The Save & Exit menu allows users to load system configurations with optimal or fail-safe default values. Save Changes and Exit When users have completed the system configuration changes, select this option to leave Setup and return to Main Menu.
  • Page 64 Series user’s Manual Save Changes When completed the system configuration changes, select this option to save changes. Select Save Changes from the Save & Exit menu and press <Enter>. Select Yes to save changes. Discard Changes Select this option to quit Setup without making any permanent changes to the system configurations.

  • Page 65: Appendix Awatchdog Timer

    Series user’s Manual APPENDIX A WATCHDOG TIMER About Watchdog Timer Software stability is a major issue in most applications. Some embedded systems are not watched by humans for 24 hours. It is usually too slow to wait for someone to reboot when a computer hangs.
  • Page 66 Series user’s Manual Disable Watchdog timer STEP Sample code Note O 2E 87 Un-lock super I/O 1. Enter configuration mode O 2E 87 Un-lock super I/O O 2E 07 Select logic register 2. Select logic device O 2F 08...

  • Page 67: Appendix Bdigital I/O

    Series user’s Manual APPENDIX B DIGITAL I/O Digital I/O Specification Digital Input: Input channels: 6, sink/source type Input voltage: 0 to 30VDC at 25Hz Input level for dry contacts: Logic level 0: close to ground Logic level 1: open Input level for wet contacts: Logic level 1: +/-3VDC max.
  • Page 68 Series user’s Manual Digital Input Wiring Digital I/O...
  • Page 69 Series user’s Manual Digital Output Wiring About Programmable Digital I/O LED eBOX671-517-FL supports Isolated digital I/O which allows user to 4DI or 2DO. Please refer to Driver CD for sample code and demo tool. 【 】 Note DIO Status Bit1~2 are DO. When select it, can check DO active low.
  • Page 70 Series user’s Manual Digital I/O...

  • Page 71: Appendix Cconfiguring Sata For Raid

    Series user’s Manual APPENDIX C CONFIGURING SATA FOR RAID ® Configuring SATA Hard Drive(s) for RAID (Controller: Intel Q170) Before you begin the SATA configuration, please prepare four SATA hard drives (to ensure optimal performance, it is recommended that you use two hard drives with the identical model and capacity).
  • Page 72 Series user’s Manual Turn on your system, and then press the <Del> button to enter BIOS Setup during running 2.1. POST (Power-On Self-Test). If you want to create RAID, just go to the Advanced Settings menu\SATA Configuration, select the “SATA Mode Selection”, and press <Enter> for more options.
  • Page 73 Series user’s Manual 3. Configuring RAID by the RAID BIOS. Enter the RAID BIOS setup utility to configure a RAID array. Skip this step and proceed if you do not want to create a RAID. After the POST memory testing and before the operating system booting, a message 3.1.
  • Page 74 Series user’s Manual After entering the Create Volume Menu screen, you can type the disk array name with 3.3. 1~16 letters (letters cannot be special characters) in the item “Name:”. When finished, press <Enter> to select a RAID level. There are two RAID levels: RAID0, 3.4.
  • Page 75 Series user’s Manual Set the stripe block size. The KB is the standard unit of stripe block size. The stripe block 3.5. size can be 4KB to 128KB. After the setting, press <Enter> for the array capacity. After setting all the items on the menu, select Create Volume and press <Enter> to start 3.6.
  • Page 76 Series user’s Manual When prompting the confirmation, press <Y> to create this volume, or <N> to cancel the 3.7. creation. After the creation is completed, you will see detailed information about the RAID array in the Disk/Volume Information section, including RAID mode, disk block size, disk name, disk capacity, etc.
  • Page 77 Series user’s Manual Delete RAID volume If you want to delete a RAID volume, select the Delete RAID Volume option in Main Menu. Press <Enter> and follow on-screen instructions. Please press <Esc> to exit the RAID BIOS utility. Now, you can proceed to install a SATA driver controller and the operating system.
