The eBOX671-521-FL is convenient for various hardware configurations, such as CPU,

DRAM, HDD (Hard Disk Drive), SSD (Solid State Drive), PCI Express Mini card modules and

optional MXM graphic module. Section 2 contains guidelines for hardware installation.

Step 1

Turn off the system and unplug the power cord.

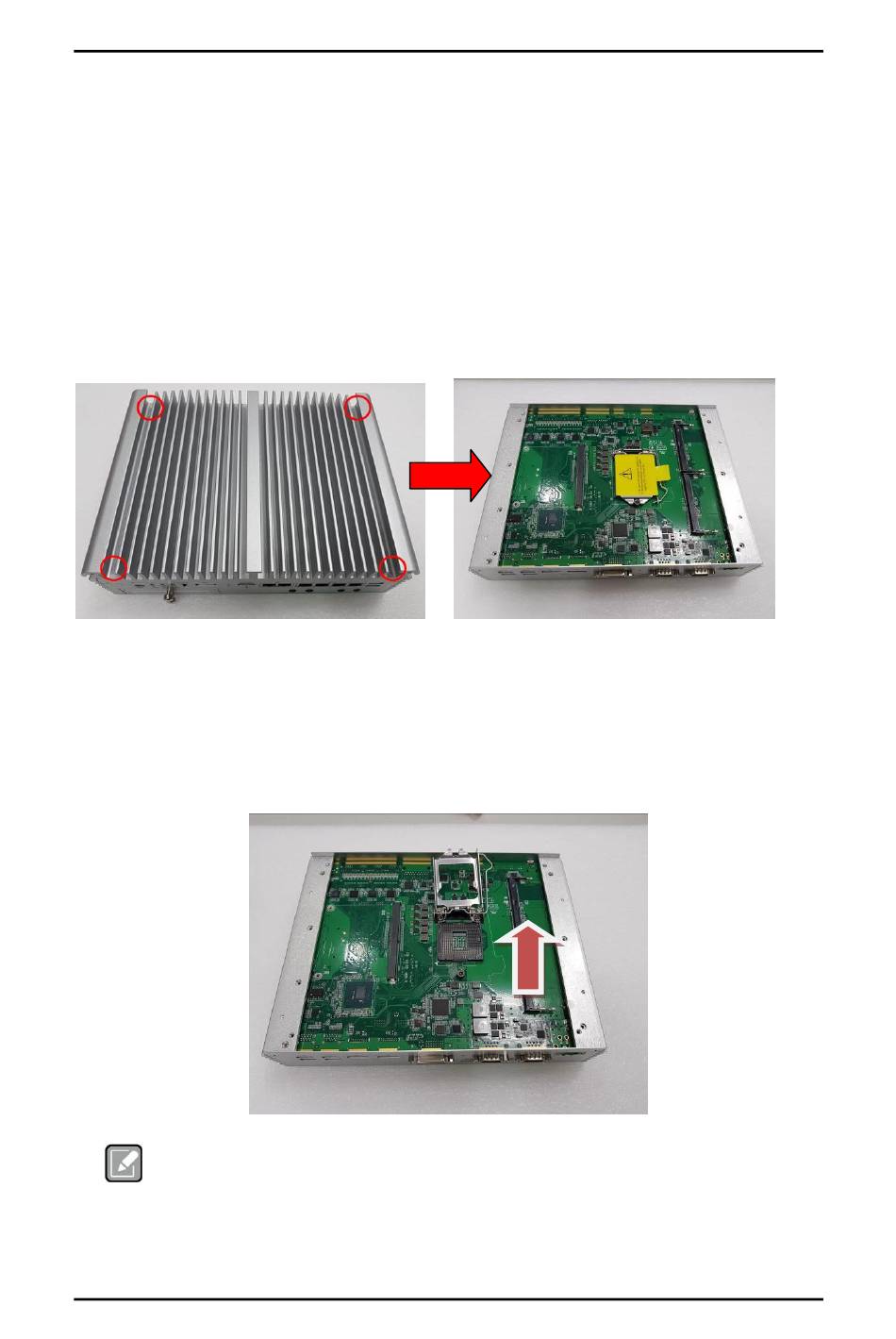

Step 2 Loosen four screws to remove top cover.

Step 3 Remove the warning label and disengage load lever.



Disengage load lever by pushing its hook down and then pulling it slightly outward.



Rotate load lever to open position at approximately 135°.



Rotate load plate to open position at approximately 150°.

Apply pressure to corner with right-hand thumb when opening or

closing load lever - otherwise lever will bounce back (as a mouse trap)

Note

causing bent contacts.

Hardware Installation

eBOX671-521-FL Series user's Manual

HARDWARE INSTALLATION

SECTION 2
