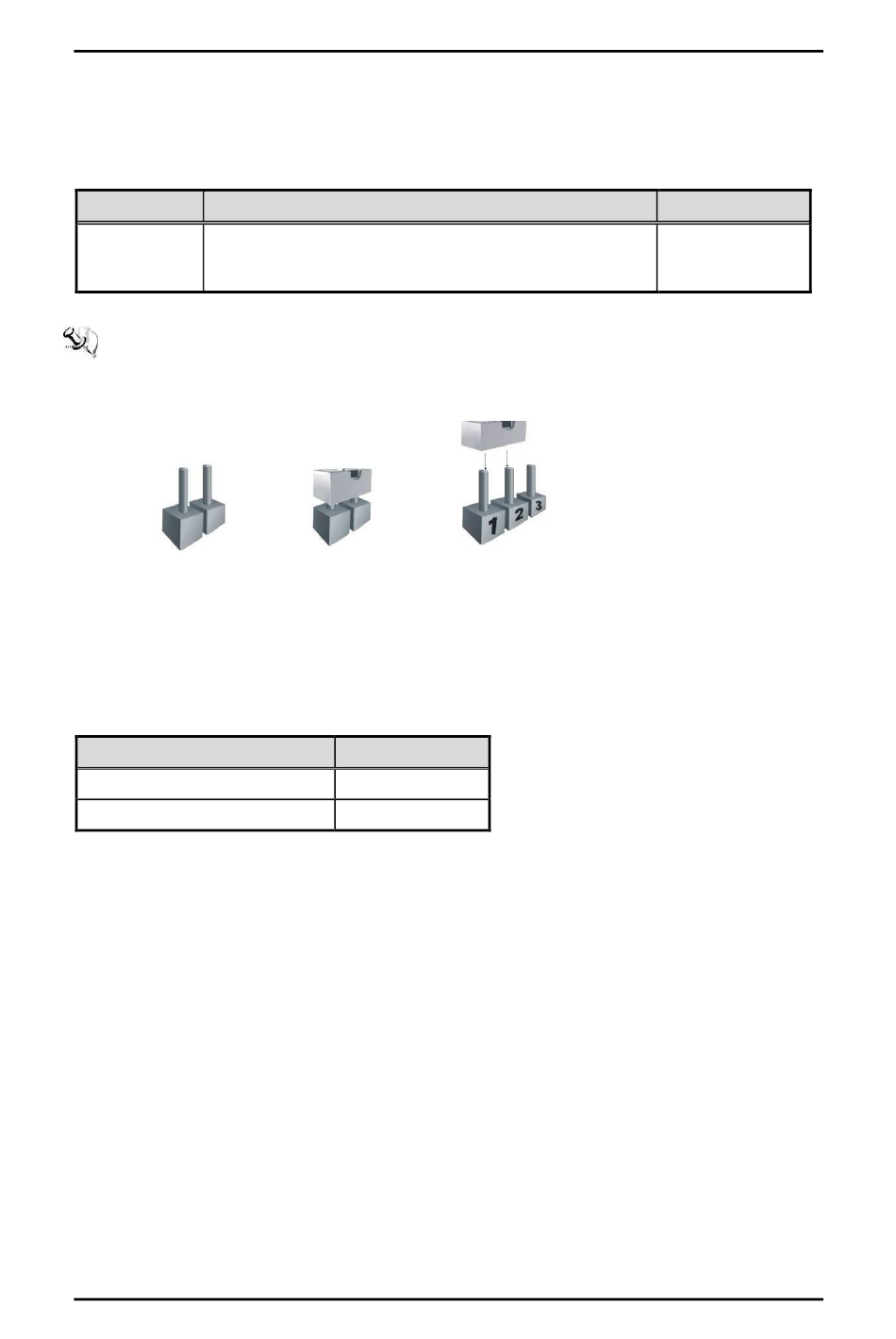

3.2 Summary of Jumper Settings

Proper jumper settings configure the eBOX671-521-FL to meet various application purposes.
A table of all jumpers and their default settings is listed below.
Jumpers
JP1
【Note】: How to setup Jumpers
That a cap on a jumper is to "close" the jumper, whereas that offs a jumper is to "open" the
jumper.
[Open]

3.2.1 Restore BIOS Optimal Defaults (JP1)

Put jumper clip to pin 2-3 for a few seconds then move it back to pin 1-2.
This procedure is to restore BIOS optimal defaults.
Functions
Normal (Default)
Clear RTC
Jumper & Connector Settings
Descriptions
Restore BIOS Optimal Defaults
Default: Normal Operation
[Closed] [Pin1 -2 Closed]
Settings
1-2
2-3
eBOX671-521-FL Series user's Manual
Settings
Short 1-2
