2.5 Installation of Mini PCIe Module (Full-size)

Step 1 Turn off the system and unplug the power cord.

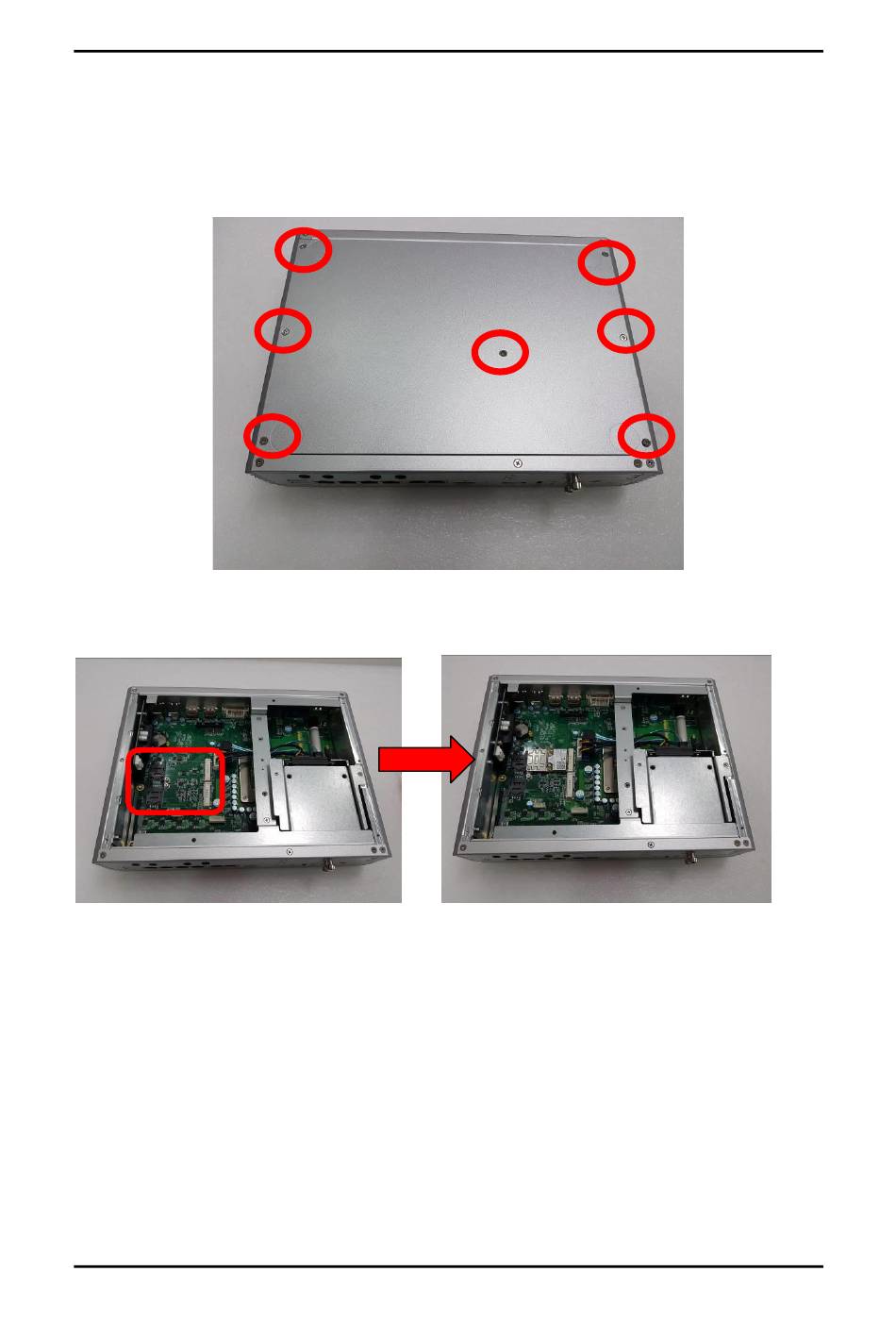

Step 2 Turn the system upside down to locate screws at the bottom, and

loosen all screws.

Step 3 Identify the two full-size mini PCIe slots, insert a mini PCIe module into

one of the sockets and then fasten all screws.

Step 4

Put the bottom cover and fasten all screws back onto the system.
